  2. Contactor
  3. Contactor

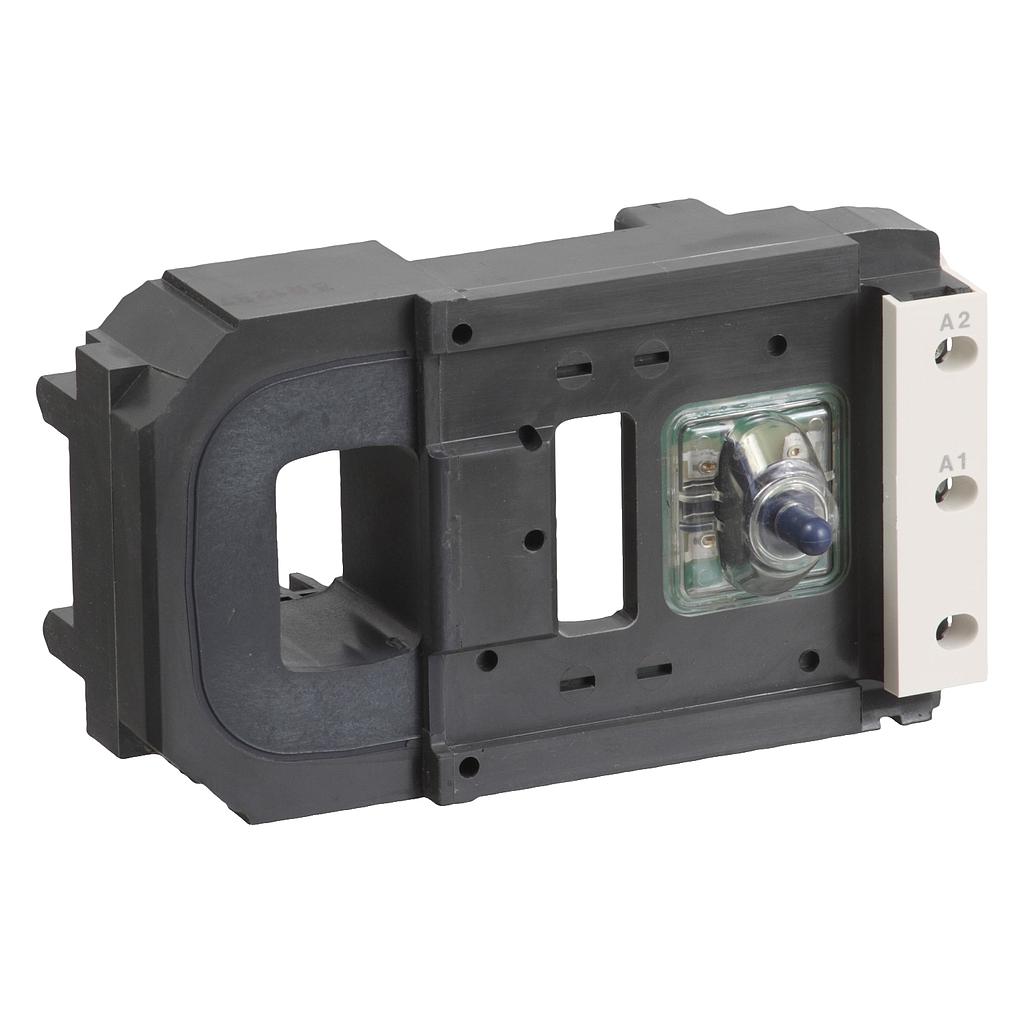

  4. Schneider TeSys F - contactor coil - LX1FJ - 380.400V AC 40.400 Hz

Schneider TeSys F - contactor coil - LX1FJ - 380.400V AC 40.400 Hz

Rp 7,571,421.00 Rp 4,618,566.00 4618566 IDR

Rp 7,571,421.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider TeSys F - contactor coil - LX1FJ - 380.400V AC 40.400 Hz
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 4,618,566.00
    39.00 % Rp 7,571,421.00 4618566 IDR

    Rp 7,571,421.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 1
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    TeSys
    product or component type
    Contactor coil
    device short name
    LX1FJ
    range compatibility
    TeSys F LC1F contactor
    product compatibility
    LC1F400
    control circuit type
    AC at 40...400 Hz
    [Uc] control circuit voltage
    380...400 V AC 40...400 Hz
    average resistance
    120 Ohm inrush at 20 °C
    3310 Ohm holding at 20 °C
    inductance of closed circuit
    15.8 H
    operating time
    100...170 ms opening
    40...75 ms closing
    mechanical durability
    10 Mcycles
    maximum operating rate
    2400 cyc/h 55 °C
    Complementary (see above)
    coil technology
    Without built-in suppressor module
    control circuit voltage limits
    Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
    Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C)
    inrush power in VA
    1075 VA 40...400 Hz cos phi 0.9 (at 20 °C)
    hold-in power consumption in VA
    15 VA 40...400 Hz cos phi 0.3 (at 20 °C)
    heat dissipation
    14 W at 40...400 Hz
    Environment (see above)
    ambient air temperature for operation
    -5…55 °C
    net weight
    1 kg
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    1.073 kg
    Package 1 Height
    9.5 cm
    Package 1 width
    10 cm
    Package 1 Length
    18.5 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    Contractual warranty (see above)
    Warranty
    12 months
