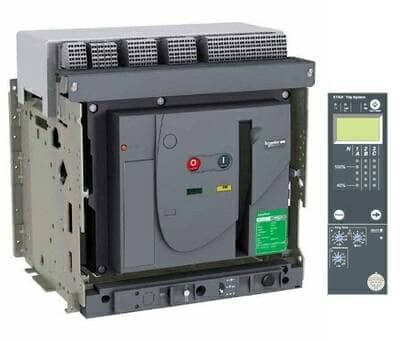

Schneider ACB EasyPact MVS32H Schneider 3P 3200A 65 kA ( Fixed Type ) MVS32H3MF2A

# of Pole : 3

Arus Nominal (In) : 3200A

Breaking Capacity : 65kA

Rp 104,165,397.00 Rp 45,832,774.00 45832774 IDR

Rp 104,165,397.00

# of Pole
- 3
Arus Nominal (In)
- 3200A
Breaking Capacity
- 65kA
Icu (kA)
- 65

This combination does not exist.

Add to Cart

Schneider ACB EasyPact MVS32H Schneider 3P 3200A 65 kA ( Fixed Type ) MVS32H3MF2A

Terjual 0

0 (0 Rating)

Ulasan (0)

Rp 45,832,774.00
56.00 % Rp 104,165,397.00 45832774 IDR

Rp 104,165,397.00

Atur Jumlah & Catatan

Stock Total: 1

# of Pole : 3

Arus Nominal (In) : 3200A

Breaking Capacity : 65kA

Keranjang Beli Sekarang

Spesifikasi

Main (see above)
range of product	EasyPact MVS
range	EasyPact
product name	MVS32H
device short name	MVS32H
product or component type	Circuit breaker
device application	Distribution
poles description	3P
protected poles description	3P 3d
network type	AC
breaking capacity code	H
suitability for isolation	Yes conforming to IEC 60947-2
utilisation category	Category B
trip unit name	ET2I
trip unit technology	Electronic
trip unit rating	3200 A

Complementary (see above)
network frequency	50/60 Hz
control type	Electrically operated
mounting mode	Fixed
mounting support	Rail Base plate
connection position	Horizontal Vertical
location of connection	Rear
[In] rated current	3200 A at 40 °C
[Ui] rated insulation voltage	1000 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	12 kV conforming to IEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
circuit breaker CT rating	3200 A
breaking capacity	65 kA Icu at 220...440 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity	65 kA (Ics) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA (Ics) at 690 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability	20000 cycles (with maintenance) conforming to IEC 60947-2 10000 cycles (without maintenance) conforming to IEC 60947-2
electrical durability	Category B: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 Category B: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
connection pitch	115 mm without spreader
contact position indicator	Yes
[Icm] rated short-circuit making capacity	143 kA (Icm) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2
[Icw] rated short-time withstand current	65 kA (1 s) at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 50 kA (1 s) at 690 V AC 50/60 Hz conforming to IEC 60947-2 36 kA (3 s) at 440/690 V AC 50/60 Hz conforming to IEC 60947-2
trip unit protection functions	LI
protection type	Overload protection (long time) Instantaneous short-circuit protection
fault indication	Short-circuit Internal fault Overload
long time pick-up adjustment type Ir	Adjustable 9 settings
long time pick-up adjustment range	0.4...1 x In
long time delay adjustment type	Adjustable 9 settings
[tr] long-time delay adjustment range	0.5…24 s at 6 x Ir
thermal memory	20 minutes before and after tripping
instantaneous pick-up adjustment type Ii	Adjustable 9 settings
instantaneous pick-up adjustment range	1.5...10 x Ir
zone selective interlocking ZSI	With
current sensor rating range	1000/4000 A
maximum breaking time	25 ms
maximum closing response time	70 ms
height	352 mm
width	422 mm
depth	297 mm
net weight	60 kg

Environment (see above)
standards	IEC 60947-2
product certifications	GOST IEC CCS CCC
IP degree of protection	IP40
pollution degree	4 conforming to IEC 60664-1
ambient air temperature for operation	-5…70 °C
ambient air temperature for storage	-40…85 °C without control unit -25…85 °C with control unit

Packing Units (see above)
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	38 kg
Package 1 Height	42 cm
Package 1 width	35 cm
Package 1 Length	50 cm

Offer Sustainability (see above)
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
PVC free	Yes

Contractual warranty (see above)
Warranty	12 months

Specifications for Schneider ACB EasyPact MVS32H Schneider 3P 3200A 65 kA ( Fixed Type ) MVS32H3MF2A

# of Pole	3
Arus Nominal (In)	3200A
Breaking Capacity	65kA
Icu (kA)	65

https://www.se.com/id/en/product/MVS32H3MF2A

Product	Public Price	Discount	Guaranteed Stock	QTY
Schneider MVS08H3MF2A MVS, 800A, H, 3P, Manual, Fxd, ETA2I	Rp 21,287,158.00	100.00 %	1
Schneider MVS32N3MF2A ACB MVS 3P 3200A FIXED TYPE 50KA ETA 2.0A	Rp 36,240,476.00	100.00 %		# of Pole 3 Arus Nominal (In) 3200A Breaking Capacity 50kA Icu (kA) 50
Schneider CRADDLE MVS 4P 2000 CRADDLE MVS 4P 2000	Rp 0.00	0.00 %	Out of Stock
Schneider MVS32H3MF2A ACB EasyPact MVS32H Schneider 3P 3200A 65 kA ( Fixed Type ) MVS32H3MF2A	Rp 45,832,774.00	100.00 %	1	# of Pole 3 Arus Nominal (In) 3200A Breaking Capacity 65kA Icu (kA) 65
Schneider MVS25N4MD2A ACB MVS 4P 2500A DRAW OUT 50KA ETA 2.0A	Rp 59,725,068.00	100.00 %	1	# of Pole 4 Arus Nominal (In) 2500A Breaking Capacity 50kA Icu (kA) 50
Schneider MVS20N4MD2A ACB MVS 4P 2000A DRAW OUT 50KA ETA 2.0A	Rp 51,309,179.00	100.00 %	Out of Stock	# of Pole 4 Arus Nominal (In) 2000A Breaking Capacity 50kA Icu (kA) 50
