Spesifikasi
| range | Domae | |
|---|---|---|
| product or component type | Comb busbar | |
| accessory / separate part category | Connection accessory | |
| lines description | 1L | |
| Length in 18 mm modules | 57 |
| number of ways | 57 ways 1 L | |
|---|---|---|
| poles configuration for 1 way | 1 x 1P | |
| connection pitch | 18 mm | |
| connector type | Tooth | |
| distance between way | 18 mm | |
| insulation | Insulated | |
| device presentation | Cuttable | |
| [Ie] rated operational current | 63 A at 40 °C | |
| [Ue] rated operational voltage | 230 V AC Ph/N | |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-1 | |
| mounting mode | Horizontal | |
| mounting location | Top on tunnel type terminals | |
| 9 mm pitches | 114 | |
| width | 1000 mm | |
| colour | Light grey (RAL 7035) | |
| range compatibility | Easy9 MCB Easy9 RCBO Easy9 RCCB Easy9 switch Domae |
| standards | IEC 60664 EN/IEC 60439-1 | |
|---|---|---|
| fire resistance | 850 °C ( 30 s ) conforming to IEC 60695-2-1 | |
| pollution degree | 3 |
| Package 1 Weight | 0.175 kg | |
|---|---|---|
| Package 1 Height | 0.150 dm | |
| Package 1 width | 0.250 dm | |
| Package 1 Length | 10.170 dm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|

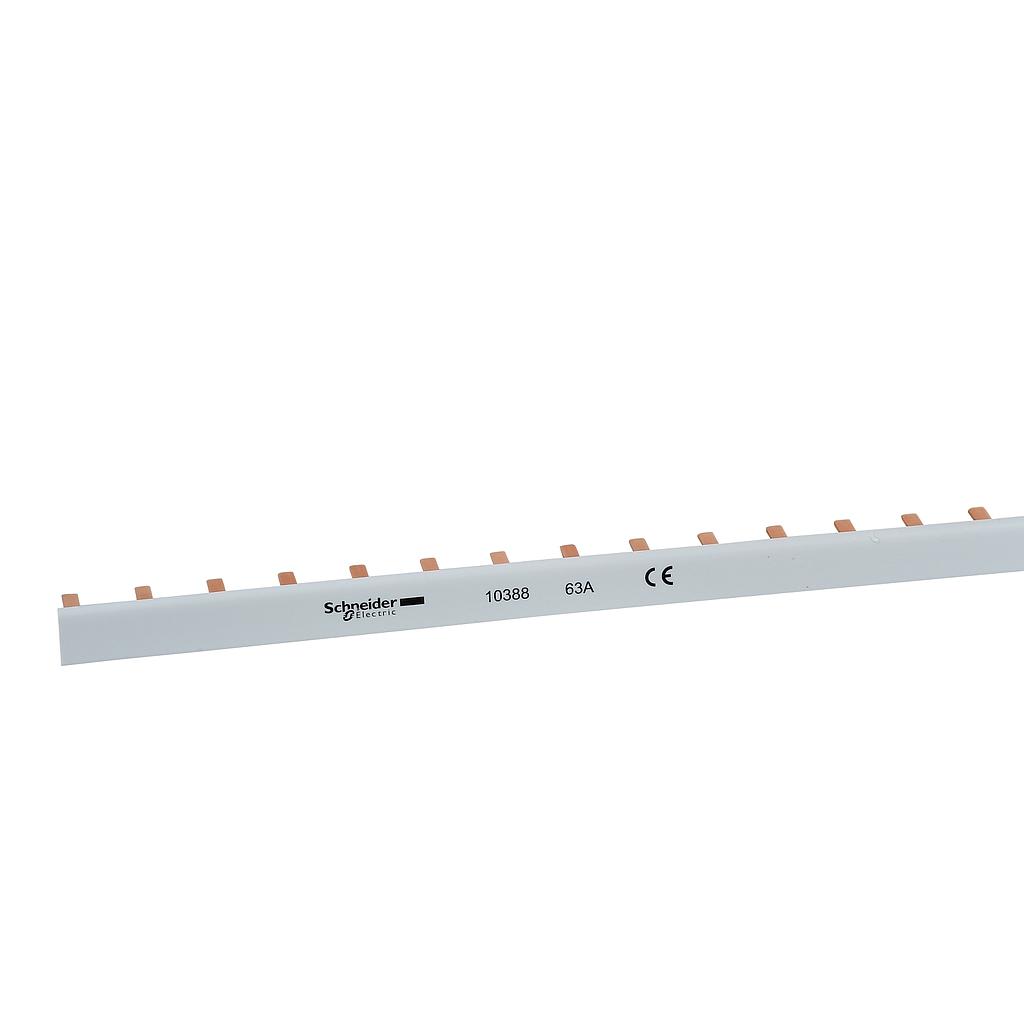

Specifications for Schneider Domae - comb busbar - 1L - 18 mm pitch - 57 modules - 63A
| # of Module | 57 |
| Arus Nominal (In) | 63A |
