  2. Domae Series
  3. ACC
  4. Com Busbar 3P 63A 1 meter

Com Busbar 3P 63A 1 meter

Rp 0,00 Rp 0,00 0 IDR

Rp 0,00

Option not available

    This combination does not exist.

    Add to Cart

    Com Busbar 3P 63A 1 meter
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 0,00
    0.00 % Rp 0,00 0 IDR

    Rp 0,00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    Domae
    product or component type
    Comb busbar
    accessory / separate part category
    Connection accessory
    lines description
    3L
    Length in 18 mm modules
    57
    Complementary (see above)
    number of ways
    19 ways 3 L
    poles configuration for 1 way
    1 x 3P
    connection pitch
    18 mm
    connector type
    Tooth
    distance between way
    54 mm
    insulation
    Insulated
    device presentation
    Cuttable
    [Ie] rated operational current
    63 A at 40 °C
    [Ue] rated operational voltage
    230 V AC Ph/N
    400 V AC Ph/Ph
    [Ui] rated insulation voltage
    500 V AC conforming to IEC 61439-1
    mounting mode
    Horizontal
    mounting location
    Top on tunnel type terminals
    9 mm pitches
    114
    width
    1000 mm
    colour
    Light grey (RAL 7035)
    range compatibility
    Easy9 MCB
    Easy9 RCBO
    Easy9 RCCB
    Easy9 switch
    Domae
    Environment (see above)
    standards
    IEC 60664
    EN/IEC 60439-1
    fire resistance
    850 °C ( 30 s ) conforming to IEC 60695-2-1
    pollution degree
    3
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    414 g
    Package 1 Height
    1.5 cm
    Package 1 width
    2.5 cm
    Package 1 Length
    101.7 cm
    Unit Type of Package 2
    BB1
    Number of Units in Package 2
    20
    Package 2 Weight
    8.58 kg
    Package 2 Height
    103 cm
    Package 2 width
    10 cm
    Package 2 Length
    10 cm
    Unit Type of Package 3
    P12
    Number of Units in Package 3
    540
    Package 3 Weight
    243.66 kg
    Package 3 Height
    80 cm
    Package 3 width
    80 cm
    Package 3 Length
    120 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
     Pro-active China RoHS declaration (out of China RoHS legal scope)
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months

    Filter By

    Product Public Price Discount Guaranteed Stock QTY Action

    10392 Com Busbar 3P 63A 1 meter

    		Rp 0,00 0.00 % Out of Stock

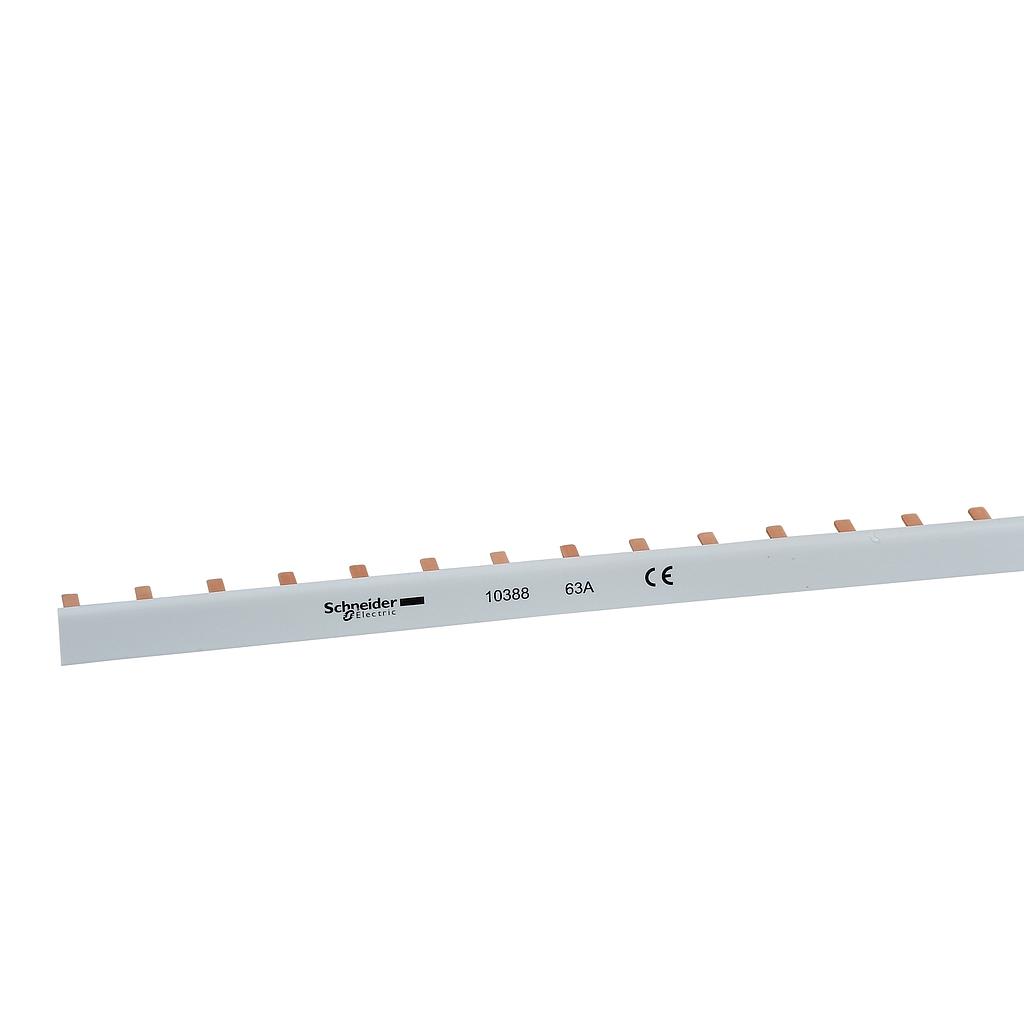

    Schneider 10388 Domae - comb busbar - 1L - 18 mm pitch - 57 modules - 63A
