  4. Mx for acb draw out 220vac

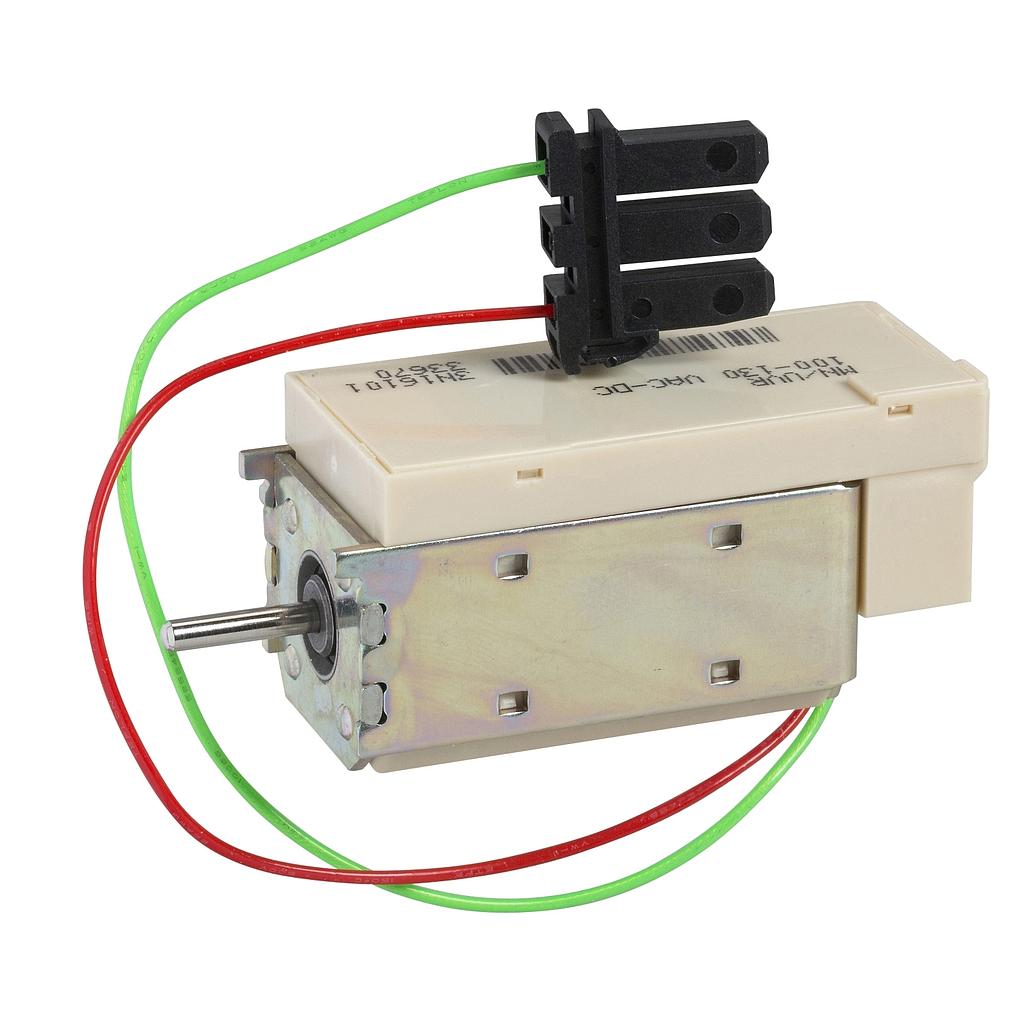

Mx for acb draw out 220vac

Rp 2,906,268.00 Rp 1,511,259.00 1511259 IDR

Rp 2,906,268.00

Option not available

    This combination does not exist.

    Add to Cart

    Mx for acb draw out 220vac
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 1,511,259.00
    48.00 % Rp 2,906,268.00 1511259 IDR

    Rp 2,906,268.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 2
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    device short name
    MX
    product or component type
    Voltage release
    device application
    Control
    range compatibility
    Masterpact NW
    voltage release type
    Shunt trip release
    [Uc] control circuit voltage
    200...250 V AC 50/60 Hz
    200...250 V DC
    Complementary (see above)
    threshold tripping voltage
    0.7...1.1 Un
    supply holding power
    4.5 VA
    mounting mode
    Drawout
    response time
    50 ms
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    179.43 g
    Package 1 Height
    3.5 cm
    Package 1 width
    7 cm
    Package 1 Length
    8.5 cm
    Offer Sustainability (see above)
    REACh Regulation
    EU RoHS Directive
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    Contractual warranty (see above)
    Warranty
    12 months
