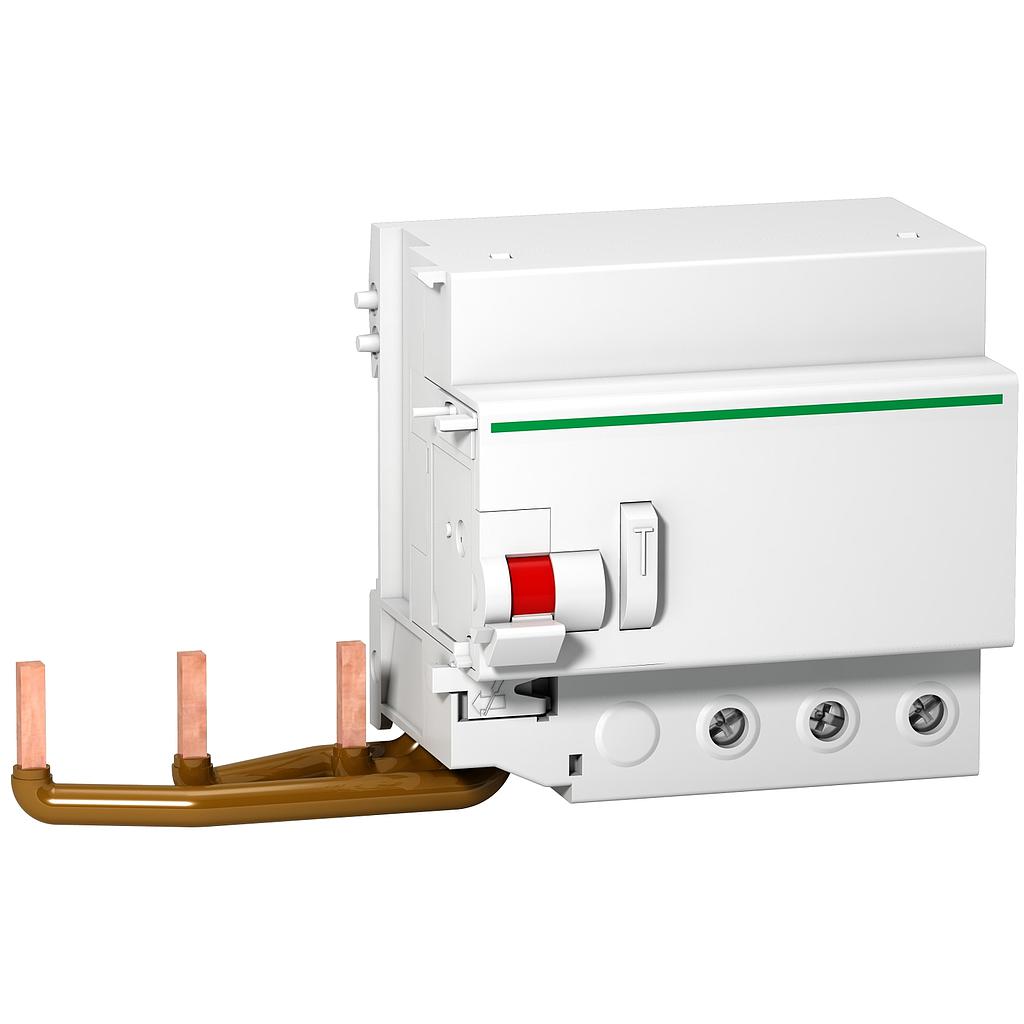

  5. Schneider Acti 9 Schneider Electric Acti 9 Modul Vigi Tipe MCB C120 -3P 125A 300mA - A9N18567

Schneider Acti 9 Schneider Electric Acti 9 Modul Vigi Tipe MCB C120 -3P 125A 300mA - A9N18567

Rp 5,372,400.00 Rp 2,417,580.00 2417580 IDR

Rp 5,372,400.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Acti 9 Schneider Electric Acti 9 Modul Vigi Tipe MCB C120 -3P 125A 300mA - A9N18567
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 2,417,580.00
    55.00 % Rp 5,372,400.00 2417580 IDR

    Rp 5,372,400.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 3
    Keranjang Beli Sekarang
    Spesifikasi

    [Deskripsi] Sangat direkomendasikan apabila : - arus hubung singkat tinggi terjadi pada instalasi. - fungsi pengaman grup sirkuit dilakukan oleh MCB. - Tambahan pengaman arus bocor untuk iC60 dan C120. - Kapasitas pemutusan tergantung dari MCB. - Mudah diinstalasi. - 30 mA untuk pengaman terhadap manusia (kontak langsung). - 300 mA untuk pengaman terhadap bahaya api dan kontak tidak langsung. [Spesifikasi] 1. Poles Description : 3P 2. [In] rated current : 125 A 3. Network type : AC 4. earth-leakage sensitivity : 300 mA 5. earth-leakage protection time delay : Instantaneous 6. Earth leakage protection class : Type AC 7. Device location in system : outgoer 8. network frequency : 50/60 Hz 9. [Ue] rated operational voltage : 230...415 V AC 50/60 Hz 10. residual current tripping technology : Voltage independent 11. [Ui] rated insulation voltage : 500 V AC 50/60 Hz conforming to IEC 60947-1 12. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2 13. mounting mode : clip-on 14. mounting support : 35 mm symmetrical DIN rail 15. electrical connection to mcb : By screws 16. 9 mm pitches : 10 17. height : 95 mm 18.width : 171 mm 19. depth : 73 mm 20. product weight : 0.5 kg 21. colour : white 22. mechanical durability : 20000 cycles 23. connections terminals : -Tunnel type terminals rigid wire(s) 1...50 mm max -Tunnel type terminals flexible wire(s) 1...35 mm max 24. wire stripping length : 15 mm 25. tightening torque : 3.5 N.m


    Main (see above)
    product or component type
    Add-on residual current devices
    device short name
    Vigi C120
    poles description
    3P
    [In] rated current
    125 A
    network type
    AC
    earth-leakage sensitivity
    300 mA
    earth-leakage protection time delay
    Instantaneous
    earth-leakage protection class
    Type AC
    Complementary (see above)
    device location in system
    Outgoer
    network frequency
    50/60 Hz
    [Ue] rated operational voltage
    230...415 V AC 50/60 Hz
    residual current tripping technology
    Voltage independent
    [Ui] rated insulation voltage
    500 V AC 50/60 Hz conforming to IEC 60947-1
    [Uimp] rated impulse withstand voltage
    6 kV conforming to IEC 60947-2
    mounting mode
    Clip-on
    mounting support
    35 mm symmetrical DIN rail
    electrical connection to mcb
    By screws
    9 mm pitches
    10
    height
    95 mm
    width
    171 mm
    depth
    73 mm
    net weight
    0.5 kg
    colour
    White
    mechanical durability
    20000 cycles
    connections - terminals
    Tunnel type terminals 1…35 mm² flexible
    Tunnel type terminals 1…50 mm² rigid
    wire stripping length
    15 mm
    tightening torque
    3.5 N.m
    Environment (see above)
    standards
    EN 61009
    IP degree of protection
    IP20
    pollution degree
    3 conforming to IEC 60947-2
    ambient air temperature for operation
    -5…60 °C
    ambient air temperature for storage
    -40…60 °C
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    571.9 g
    Package 1 Height
    9.2 cm
    Package 1 width
    13.5 cm
    Package 1 Length
    25.3 cm
    Unit Type of Package 2
    S03
    Number of Units in Package 2
    8
    Package 2 Weight
    4.805 kg
    Package 2 Height
    30 cm
    Package 2 width
    30 cm
    Package 2 Length
    40 cm
    Offer Sustainability (see above)
    REACh Regulation
    EU RoHS Directive
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
