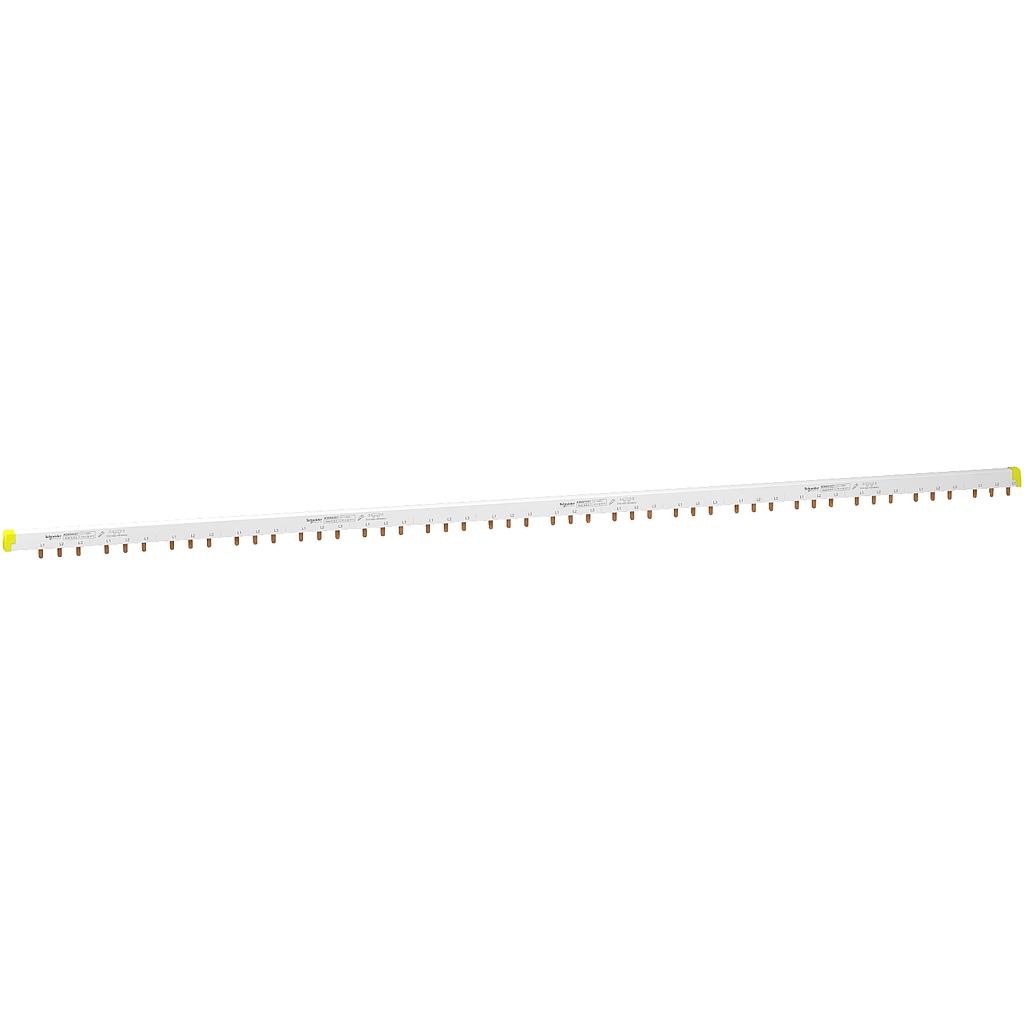

  4. Acti 9 - comb busbar - 3L wtih Aux - 18 mm pitch - 57 modules - 100A

Acti 9 - comb busbar - 3L wtih Aux - 18 mm pitch - 57 modules - 100A

Rp 1,652,068.00 Rp 859,075.00 859075 IDR

Rp 1,652,068.00

Option not available

    This combination does not exist.

    Add to Cart

    Acti 9 - comb busbar - 3L wtih Aux - 18 mm pitch - 57 modules - 100A
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 859,075.00
    48.00 % Rp 1,652,068.00 859075 IDR

    Rp 1,652,068.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 10
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    Acti 9
    product or component type
    Comb busbar
    accessory / separate part category
    Connection accessory
    lines description
    3L
    Length in 18 mm modules
    57
    Complementary (see above)
    number of ways
    16 ways Aux + 3 L
    poles configuration for 1 way
    1 x 3P
    connection pitch
    18 mm
    connector type
    Tooth
    distance between way
    63 mm
    marking
    L1 L2 L3
    insulation
    Insulated
    device presentation
    Cuttable
    provided equipment
    Set of 10 end piece
    [Ie] rated operational current
    100 A at 40 °C
    [Ue] rated operational voltage
    415 V AC
    [Ui] rated insulation voltage
    500 V AC conforming to IEC 61439-2
    mounting mode
    Horizontal
    mounting location
    Top or bottom on tunnel type terminals
    Top or bottom on double terminal
    9 mm pitches
    114
    width
    1000 mm
    colour
    White (RAL 9003)
    range compatibility
    Acti 9 iC60
    Acti 9 iK60
    Acti 9 iID
    Acti 9 iID K
    Acti 9 iSW
    Acti 9 iSW-NA
    Multi 9 C60
    Environment (see above)
    standards
    IEC 60947-7-1
    IEC 61439-2
    fire resistance
    960 °C ( 30 s ) conforming to IEC 60695-2-1
    pollution degree
    3 conforming to IEC 60947-7-1
    IP degree of protection
    IP20 with end-pieces and tooth covers
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    569.9 g
    Package 1 Height
    5.5 cm
    Package 1 width
    9 cm
    Package 1 Length
    105 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
     Pro-active China RoHS declaration (out of China RoHS legal scope)
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
