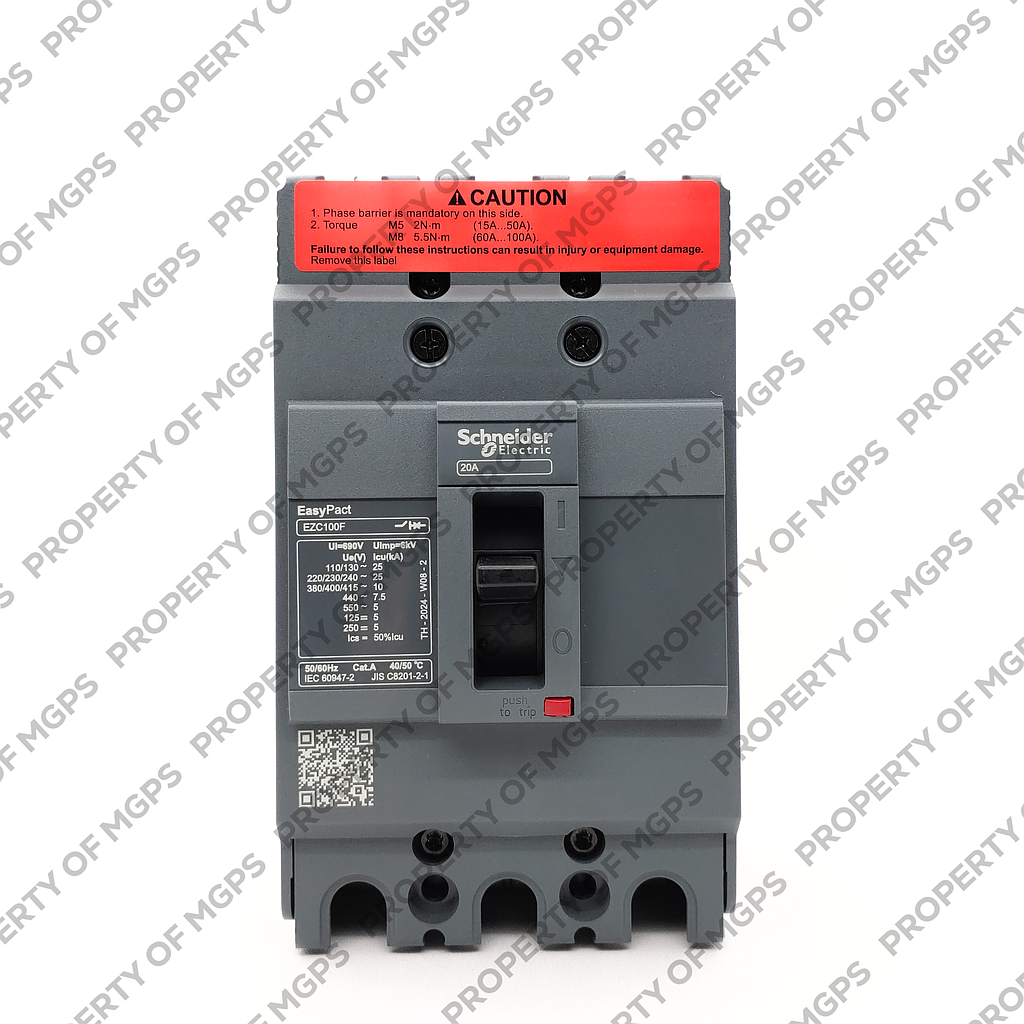

Schneider Electric MCCB EasyPact EZC - 20 A - 3P/3d - EZC100F3020 [Deskripsi] -Aplikasi untuk instalasi listrik dengan kapasitas pemutusan rendah. -Kapasitas Pemutusan : 7.5 kA s/d 30 kA pada 380/415 VAC. -Thermal magnetic trip unit, tidak dapat disetel (non adjustable). -Fixed type, front connection. -Satu ukuran (frame size) untuk semua rating. -Memenuhi standar IEC 60947-2. -Rated @ 125V DC (1P) dan @ 250V DC (2P in series) [Spesifikasi] 1. poles description : 3P 2. protected poles description : 3t 3. network type : -DC -AC 4. network frequency : 50/60 Hz 5. [In] rated current : 100 A at 40 °C 6. [Ui] rated insulation voltage : 690 V AC 50/60 Hz conforming to IEC 60947-2 7. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2 8. [Ue] rated operational voltage : -550 V AC 50/60 Hz conforming to IEC 60947-2 -250 V DC conforming to IEC 60947-2 9. control type : Toggle 10. mounting mode : Fixed 11. mounting support : Backplate 12. upside connection : Front 13. downside connection : Front 14. mechanical durability : 8500 cycles 15. electrical durability : Category A : 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 16. connection pitch : 25 mm 17. local signalling : Positive contact indication 18. neutral protection setting : Without protection 19. earth-leakage protection : Without 20. height : 130 mm 21. width : 75 mm 22. depth : 60 mm 23. weight: 0.78kg
range of product | EasyPact | |
---|---|---|
product or component type | Circuit breaker | |
device short name | Easypact EZC100F | |
circuit breaker name | Easypact EZC100F | |
device application | Distribution | |
poles description | 3P | |
protected poles description | 3t | |
network type | DC AC | |
network frequency | 50/60 Hz | |
[In] rated current | 100 A at 40 °C | |
[Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
[Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 | |
[Ue] rated operational voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2 250 V DC conforming to IEC 60947-2 | |
breaking capacity code | F | |
breaking capacity | 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
[Ics] rated service breaking capacity | 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 125 V DC conforming to IEC 60947-2 2.5 kA at 250 V DC conforming to IEC 60947-2 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2 5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2 5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 3.75 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
suitability for isolation | Yes conforming to IEC 60947-2 | |
utilisation category | Category A | |
trip unit name | TM-D | |
trip unit technology | Thermal-magnetic | |
trip unit rating | 20 A at 50 °C | |
protection type | Short-circuit protection Overload protection | |
pollution degree | 3 conforming to IEC 60664-1 3 conforming to IEC 947-1 |
control type | Toggle | |
---|---|---|
mounting mode | Fixed | |
mounting support | Backplate | |
upside connection | Front | |
downside connection | Front | |
mechanical durability | 8500 cycles | |
electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 | |
connection pitch | 25 mm | |
local signalling | Positive contact indication | |
neutral protection setting | Without protection | |
earth-leakage protection | Without | |
height | 130 mm | |
width | 75 mm | |
depth | 60 mm |
standards | JIS C8201-2-2 EN/IEC 60947-2 GB/T 14048.2 EN/IEC 60947-1 | |
---|---|---|
IP degree of protection | IP20 conforming to IEC 60529 | |
IK degree of protection | IK07 conforming to IEC 62262 | |
ambient air temperature for operation | -25…70 °C | |
ambient air temperature for storage | -35…85 °C |
Unit Type of Package 1 | PCE | |
---|---|---|
Number of Units in Package 1 | 1 | |
Package 1 Weight | 805 g | |
Package 1 Height | 9.5 cm | |
Package 1 width | 8.5 cm | |
Package 1 Length | 14 cm |
Sustainable offer status | Green Premium product | |
---|---|---|
REACh Regulation | ||
REACh free of SVHC | Yes | |
EU RoHS Directive | Compliant EU RoHS Declaration | |
Toxic heavy metal free | Yes | |
Mercury free | Yes | |
RoHS exemption information | ||
China RoHS Regulation | ||
Environmental Disclosure | ||
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
Warranty | 12 months |
---|
Specifications for Schneider Easypact EZC EZC100F 3P 20A 10KA
# of Pole | 3 |
Arus Nominal (In) | 20A |
Trip Unit Rating | 20 A at 50 °C |
