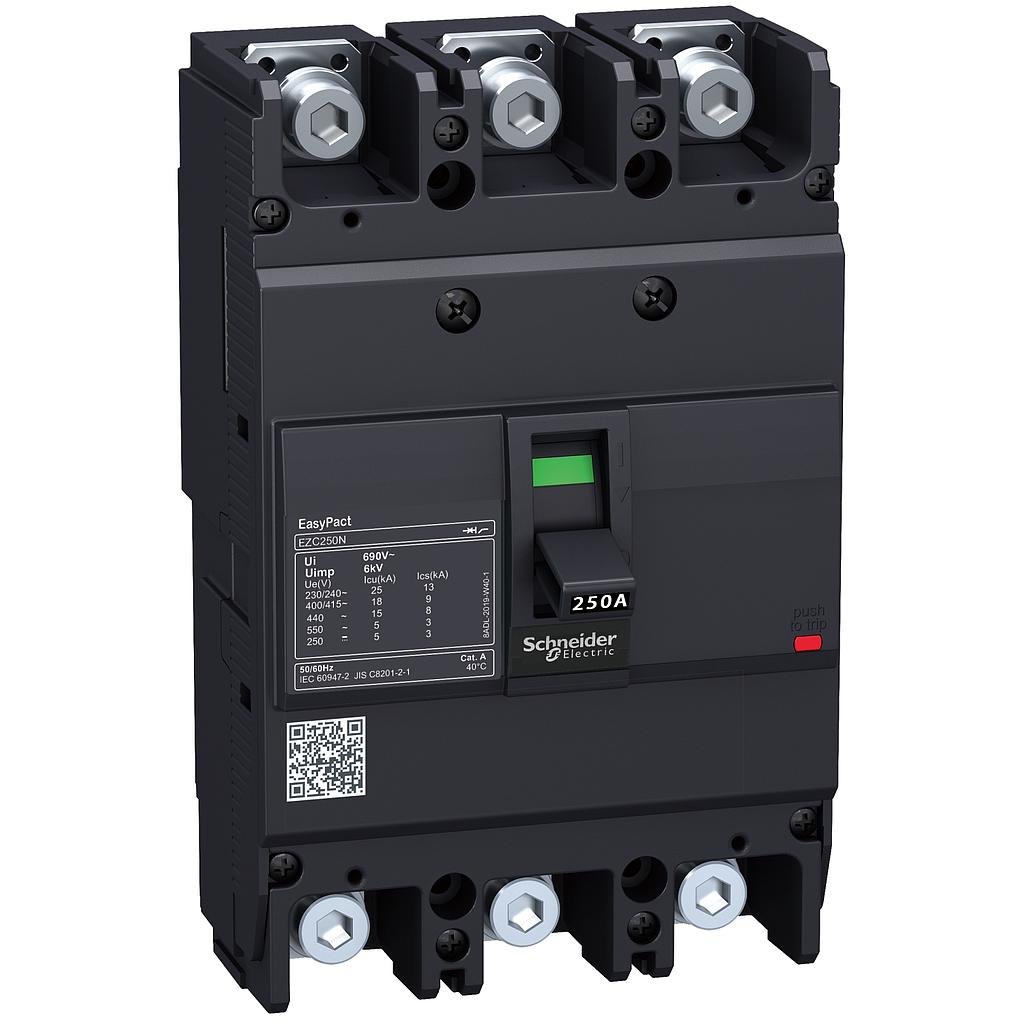

  4. EZC250F 3P 100A 18KA 415V 3P 100A

EZC250F 3P 100A 18KA 415V 3P 100A

Rp 2,323,185.00 Rp 1,208,056.00 1208056 IDR

Rp 2,323,185.00

Option not available

    This combination does not exist.

    Add to Cart

    EZC250F 3P 100A 18KA 415V 3P 100A
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 1,208,056.00
    48.00 % Rp 2,323,185.00 1208056 IDR

    Rp 2,323,185.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 10
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    EasyPact
    product or component type
    Circuit breaker
    device short name
    Easypact EZC250F
    circuit breaker name
    Easypact EZC250F
    device application
    Distribution
    poles description
    3P
    protected poles description
    3t
    network type
    DC
    AC
    network frequency
    50/60 Hz
    [In] rated current
    250 A at 40 °C
    [Ui] rated insulation voltage
    690 V AC 50/60 Hz conforming to IEC 60947-2
    [Uimp] rated impulse withstand voltage
    6 kV conforming to IEC 60947-2
    [Ue] rated operational voltage
    550 V AC 50/60 Hz conforming to IEC 60947-2
    250 V DC conforming to IEC 60947-2
    breaking capacity code
    F
    breaking capacity
    10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
    18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
    25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
    5 kA Icu at 125 V DC 1P conforming to IEC 60947-2
    5 kA Icu at 250 V DC 2P conforming to IEC 60947-2
    5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
    [Ics] rated service breaking capacity
    9 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
    12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
    12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
    2.5 kA at 125 V DC conforming to IEC 60947-2
    2.5 kA at 250 V DC conforming to IEC 60947-2
    2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
    9 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
    7.5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    suitability for isolation
    Yes conforming to IEC 60947-2
    utilisation category
    Category A
    trip unit name
    TM-D
    trip unit technology
    Thermal-magnetic
    trip unit rating
    100 A at 50 °C
    protection type
    Short-circuit protection
    Overload protection
    pollution degree
    3 conforming to IEC 60664-1
    3 conforming to IEC 947-1
    Complementary (see above)
    control type
    Toggle
    mounting mode
    Fixed
    mounting support
    Backplate
    upside connection
    Front
    downside connection
    Front
    mechanical durability
    10000 cycles
    electrical durability
    Category A: 5000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
    connection pitch
    35 mm
    local signalling
    Positive contact indication
    neutral protection setting
    Without protection
    earth-leakage protection
    Without
    height
    165 mm
    width
    105 mm
    depth
    60 mm
    Environment (see above)
    standards
    GB/T 14048.2
    EN/IEC 60947-2
    EN/IEC 60947-1
    IP degree of protection
    IP20 conforming to IEC 60529
    IK degree of protection
    IK07 conforming to IEC 62262
    ambient air temperature for operation
    -25…70 °C
    ambient air temperature for storage
    -35…85 °C
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    1.62 kg
    Package 1 Height
    11.4 cm
    Package 1 width
    11.3 cm
    Package 1 Length
    18 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
