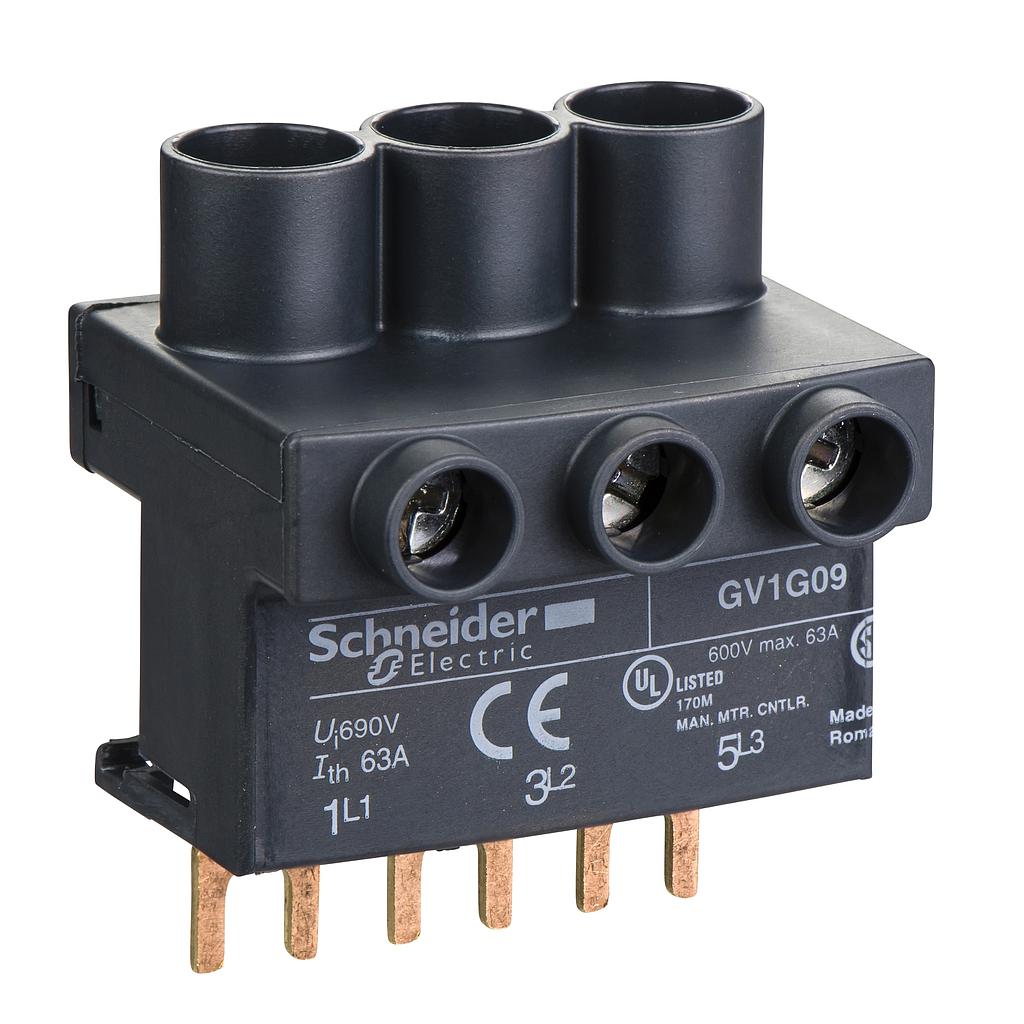

Schneider Busbar

Rp 291,375.00 Rp 151,515.00 151515 IDR

Rp 291,375.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Busbar
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 151,515.00
    48.00 % Rp 291,375.00 151515 IDR

    Rp 291,375.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi

    [Deskripsi] 1. poles description : 3P 2. range compatibility : -TeSys GV2 -TeSys D -TeSys K -TeSys U -TeSys LS1 3. [Ie] rated operational current : 63 A 4. mounting location : Top 5. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-1 6. net weight : 0.04 kg


    Main (see above)
    range
    Linergy
    product name
    FT
    device short name
    GV1G
    product or component type
    Terminal block
    accessory / separate part category
    Connection accessory
    poles description
    3P
    range compatibility
    TeSys GV2
    TeSys D
    TeSys K
    TeSys U
    TeSys LS1
    Complementary (see above)
    [Ie] rated operational current
    63 A
    mounting location
    Top
    IP degree of protection
    IP20 conforming to IEC 60529
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-1
    connections - terminals
    Screw clamp terminals 1 solid AWG 4
    Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible with cable end
    Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible without cable end
    Screw clamp terminals 1 cable(s) 1.5…25 mm² solid
    Screw clamp terminals 2 cable(s) 1.5…4 mm² flexible with cable end
    Screw clamp terminals 2 cable(s) 1.5…6 mm² solid
    Screw clamp terminals 2 cable(s) 2.5…4 mm² flexible without cable end
    Screw clamp terminals 1 flexible AWG 4
    tightening torque
    1.7 N.m - on screw clamp terminals
    2.2 N.m - on connector
    net weight
    0.04 kg
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    48 g
    Package 1 Height
    4 cm
    Package 1 width
    5 cm
    Package 1 Length
    5.5 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Contractual warranty (see above)
    Warranty
    12 months
