  4. EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 32A - 380 V AC coil

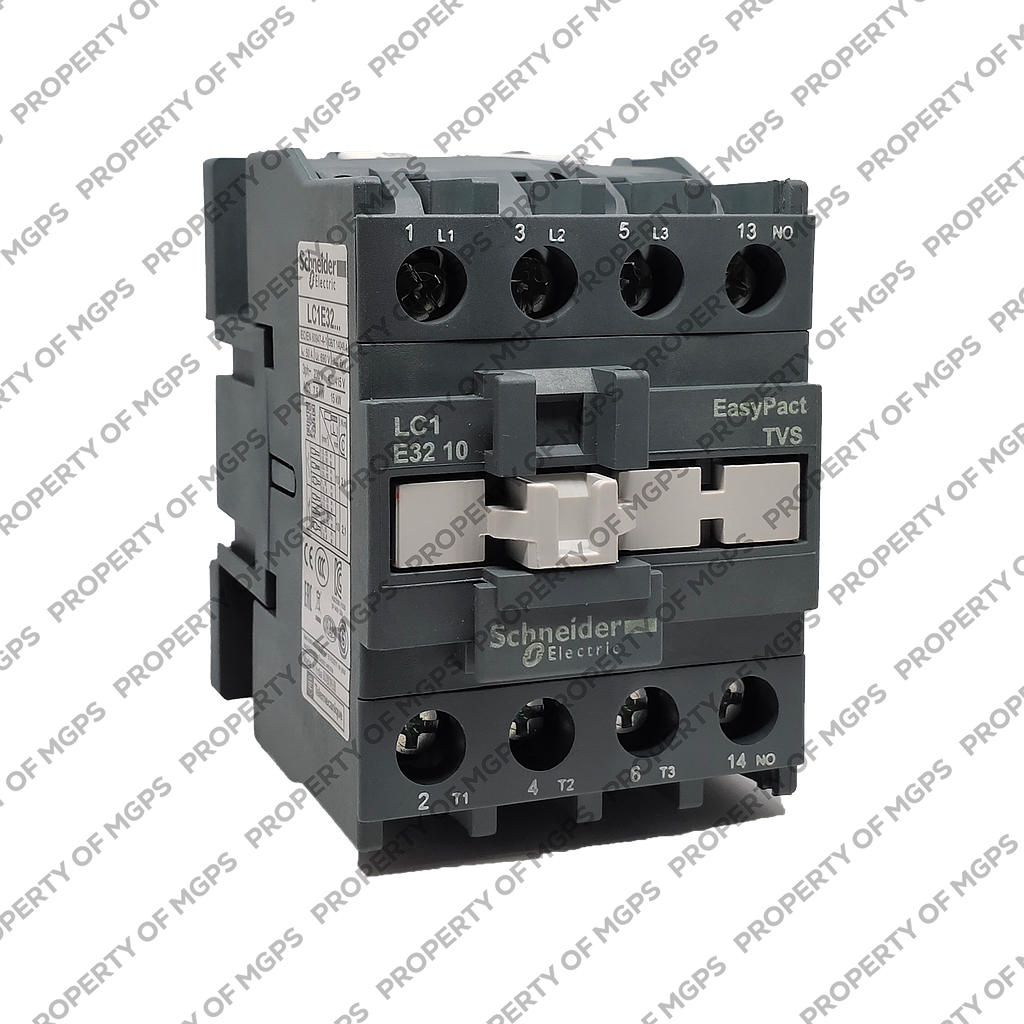

EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 32A - 380 V AC coil

Rp 1,063,269.00 Rp 595,430.00 595430 IDR

Rp 1,063,269.00

Option not available

    This combination does not exist.

    Add to Cart

    EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 32A - 380 V AC coil
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 595,430.00
    44.00 % Rp 1,063,269.00 595430 IDR

    Rp 1,063,269.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    EasyPact
    product name
    EasyPact TVS
    product or component type
    Contactor
    device short name
    LC1E
    contactor application
    Resistive load
    Motor control
    utilisation category
    AC-1
    AC-3
    poles description
    3P
    power pole contact composition
    3 NO
    [Ue] rated operational voltage
    Power circuit: <= 690 V AC 50/60 Hz
    [Ie] rated operational current
    32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
    50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    motor power kW
    7.5 kW at 220...230 V AC 50/60 Hz (AC-3)
    15 kW at 380...400 V AC 50/60 Hz (AC-3)
    15 kW at 415 V AC 50/60 Hz (AC-3)
    15 kW at 440 V AC 50/60 Hz (AC-3)
    18.5 kW at 500 V AC 50/60 Hz (AC-3)
    18.5 kW at 660...690 V AC 50/60 Hz (AC-3)
    control circuit type
    AC at 50 Hz
    [Uc] control circuit voltage
    380 V AC 50 Hz
    height
    84 mm
    width
    56 mm
    depth
    86 mm
    net weight
    0.45 kg
    colour
    Grey (RAL 7011)
    Complementary (see above)
    auxiliary contact composition
    1 NO
    [Uimp] rated impulse withstand voltage
    6 kV coil not connected to the power circuit conforming to IEC 60947
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-4-1
    overvoltage category
    III
    Irms rated making capacity
    320 A at 440 V AC for power circuit conforming to IEC 60947-4-1
    rated breaking capacity
    256 A at 440 V for power circuit conforming to IEC 60947
    [Icw] rated short-time withstand current
    260 A 40 °C - 10 s for power circuit
    138 A 40 °C - 60 s for power circuit
    60 A 40 °C - 600 s for power circuit
    associated fuse rating
    10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
    63 A gG at <= 690 V coordination type 1 for power circuit
    average impedance
    2.5 mOhm - Ith 50 A 50 Hz for power circuit
    power dissipation per pole
    2 W AC-3
    5 W AC-1
    control circuit voltage limits
    Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C)
    Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C)
    operating time
    12...22 ms on closing
    4...19 ms on opening
    mechanical durability
    8000000 cycles
    maximum operating rate
    1800 cyc/h 60 °C
    inrush power in VA
    95 VA 50 Hz cos phi 0.75 (at 20 °C)
    95 VA 60 Hz cos phi 0.75 (at 20 °C)
    hold-in power consumption in VA
    8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
    8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
    heat dissipation
    2…3 W for control circuit
    minimum switching current
    5 mA for control circuit
    minimum switching voltage
    17 V for control circuit
    non-overlap time
    1.5 ms on energisation guaranteed between NC and NO contact
    1.5 ms on de-energisation guaranteed between NC and NO contact
    insulation resistance
    > 10 MOhm for control circuit
    electrical durability
    1000000 cycles AC-3
    350000 cycles AC-1
    mounting support
    DIN rail
    Plate
    connections - terminals
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
    Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end
    Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end
    Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
    Recommended tightening torque
    Control circuit: 1.2 N.m
    Power circuit: 2.1 N.m
    Max tightening torque
    Control circuit: 1.4 N.m
    Power circuit: 2.3 N.m
    Environment (see above)
    standards
    IEC 60947-4-1
    IEC 60947-5-1
    IEC 60947-1
    product certifications
    EAC
    CE
    IP degree of protection
    IP2x conforming to IEC 60529
    protective treatment
    TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
    pollution degree
    3
    ambient air temperature for operation
    -5…55 °C
    ambient air temperature for storage
    -60…80 °C
    permissible ambient air temperature around the device
    -20…70 °C at Uc
    operating altitude
    3000 m without derating
    fire resistance
    850 °C conforming to IEC 60695-2-1
    mechanical robustness
    Vibrations contactor open: 1.5 Gn, 5...300 Hz
    Vibrations contactor closed: 3 Gn, 5...300 Hz
    Shocks contactor closed: 10 Gn for 11 ms
    Shocks contactor open: 6 Gn for 11 ms
    Packing Units (see above)
    Package 1 Weight
    451.000 g
    Package 1 Height
    8.600 cm
    Package 1 width
    5.600 cm
    Package 1 Length
    8.400 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
