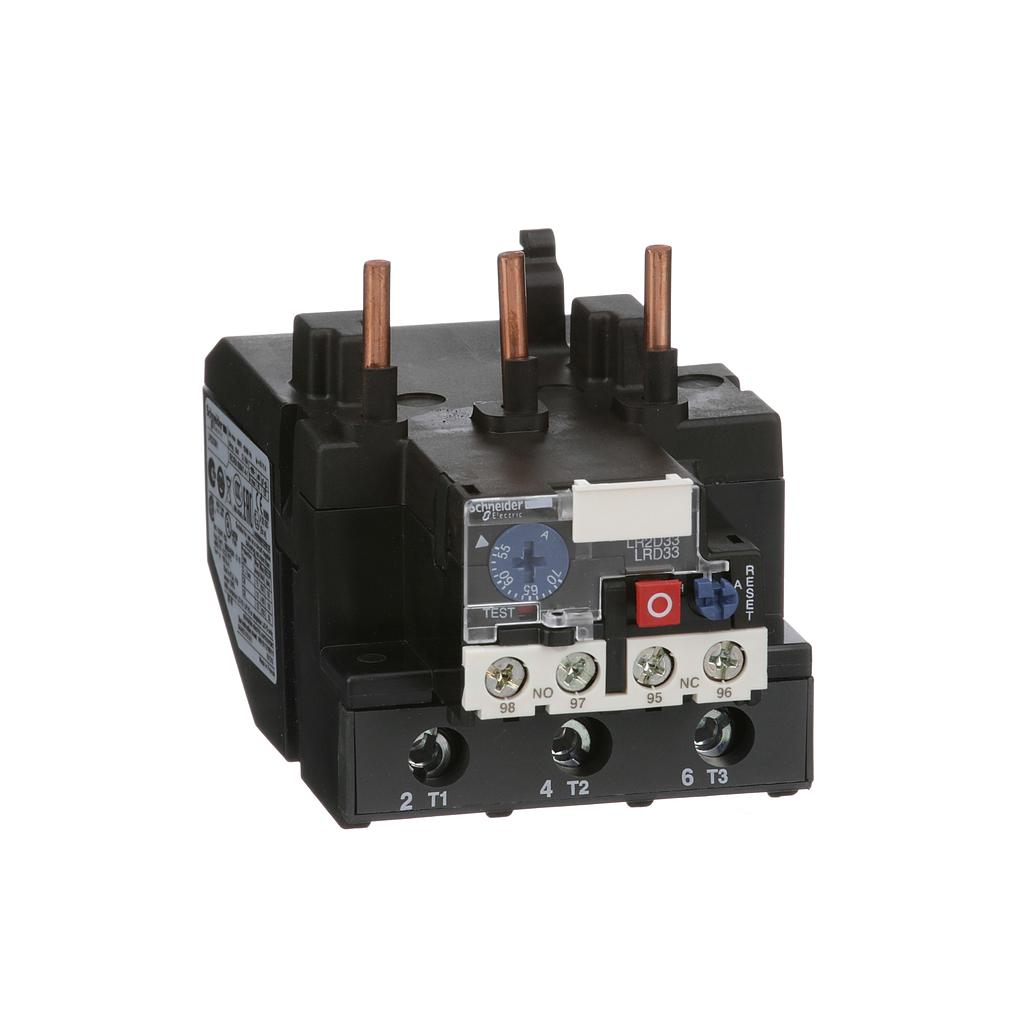

Schneider TeSys LRD thermal overload relays - 55...70 A - class 10A
Setting Arus : 55...70 (LC1 D80&D95)
Rp 1.412.896,00
44.00 %
Rp 2.523.030,00
Rp 2.523.030,00
Option not available
[Deskripsi] 1. product name : TeSys LRD 2. product or component type : Differential thermal overload relay 3. device short name : LRD 4. relay application : Motor protection 5. product compatibility : -LC1D95 -LC1D80 6. network type : -DC -AC 7. thermal protection adjustment range : 55…70 A 8. [Ui] rated insulation voltage : -Power circuit: 600 V conforming to CSA -Power circuit: 600 V conforming to UL -Power circuit: 1000 V conforming to IEC 60947-4-1 9. network frequency : 0...400 Hz 10. mounting support : -Plate, with specific accessories -Rail, with specific accessories -Under contactor 11. tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 12. [Ith] conventional free air thermal current : 5 A for signalling circuit 13. permissible current : -0.72 A at 380 V AC-15 for signalling circuit -0.06 A at 440 V DC-13 for signalling circuit 14. [Ue] rated operational voltage : 690 V AC 0...400 Hz 15. [Uimp] rated impulse withstand voltage : 6 kV 16. phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 17. control type : -Red push-button: stop -Blue push-button: reset 18. temperature compensation : -20…60 °C 19. connections - terminals : -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end -Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end -Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end -Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end 20. tightening torque : -Control circuit: 1.7 N.m - on screw clamp terminals -Power circuit: 5 N.m - on EverLink BTR screw connectors 21. height : 123 mm 22. width : 75 mm 23. depth : 121 mm 24. net weight : 0.51 kg
| range | TeSys | |
|---|---|---|
| product name | TeSys LRD | |
| product or component type | Differential thermal overload relay | |
| device short name | LRD | |
| relay application | Motor protection | |
| product compatibility | LC1D95 LC1D80 | |
| network type | DC AC | |
| thermal overload class | Class 10A conforming to IEC 60947-4-1 | |
| thermal protection adjustment range | 55…70 A | |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL |
| network frequency | 0...400 Hz | |
|---|---|---|
| mounting support | Plate, with specific accessories Rail, with specific accessories Under contactor | |
| tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | |
| auxiliary contact composition | 1 NO + 1 NC | |
| [Ith] conventional free air thermal current | 5 A for signalling circuit | |
| permissible current | 0.72 A at 500 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | |
| [Ue] rated operational voltage | 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 | |
| associated fuse rating | 4 A gG for signalling circuit 4 A BS for signalling circuit | |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | |
| phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 | |
| control type | Red push-button: stop Blue push-button: reset | |
| temperature compensation | -20…60 °C | |
| connections - terminals | Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end | |
| tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 9 N.m - on screw clamp terminals | |
| height | 81 mm | |
| width | 70 mm | |
| depth | 115 mm | |
| net weight | 0.51 kg |
| protective treatment | TH conforming to IEC 60068 | |
|---|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 | |
| ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 | |
| ambient air temperature for storage | -60…70 °C | |
| flame retardance | V1 conforming to UL 94 | |
| mechanical robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | |
| dielectric strength | 2.2 kV at 50 Hz conforming to IEC 60947-1 | |
| standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495 | |
| product certifications | IEC UL CSA CCC EAC ATEX INERIS |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 510 g | |
| Package 1 Height | 8 cm | |
| Package 1 width | 8.6 cm | |
| Package 1 Length | 11.9 cm | |
| Unit Type of Package 2 | S02 | |
| Number of Units in Package 2 | 12 | |
| Package 2 Weight | 6.45 kg | |
| Package 2 Height | 15 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm | |
| Unit Type of Package 3 | P06 | |
| Number of Units in Package 3 | 192 | |
| Package 3 Weight | 113.7 kg | |
| Package 3 Height | 80 cm | |
| Package 3 width | 80 cm | |
| Package 3 Length | 60 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 12 months |
|---|
Specifications for Schneider TeSys LRD thermal overload relays - 55...70 A - class 10A
| Setting Arus | 55...70 (LC1 D80&D95) |
HOT PROMO
[Deskripsi] 1. product name : TeSys LRD 2. product or component type : Differential thermal overload relay 3. device short name : LRD 4. relay application : Motor protection 5. product compatibility : -LC1D95 -LC1D80 6. network type : -DC -AC 7. thermal protection adjustment range : 55…70 A 8. [Ui] rated insulation voltage : -Power circuit: 600 V conforming to CSA -Power circuit: 600 V conforming to UL -Power circuit: 1000 V conforming to IEC 60947-4-1 9. network frequency : 0...400 Hz 10. mounting support : -Plate, with specific accessories -Rail, with specific accessories -Under contactor 11. tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 12. [Ith] conventional free air thermal current : 5 A for signalling circuit 13. permissible current : -0.72 A at 380 V AC-15 for signalling circuit -0.06 A at 440 V DC-13 for signalling circuit 14. [Ue] rated operational voltage : 690 V AC 0...400 Hz 15. [Uimp] rated impulse withstand voltage : 6 kV 16. phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 17. control type : -Red push-button: stop -Blue push-button: reset 18. temperature compensation : -20…60 °C 19. connections - terminals : -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end -Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end -Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end -Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end 20. tightening torque : -Control circuit: 1.7 N.m - on screw clamp terminals -Power circuit: 5 N.m - on EverLink BTR screw connectors 21. height : 123 mm 22. width : 75 mm 23. depth : 121 mm 24. net weight : 0.51 kg
| range | TeSys | |
|---|---|---|
| product name | TeSys LRD | |
| product or component type | Differential thermal overload relay | |
| device short name | LRD | |
| relay application | Motor protection | |
| product compatibility | LC1D95 LC1D80 | |
| network type | DC AC | |
| thermal overload class | Class 10A conforming to IEC 60947-4-1 | |
| thermal protection adjustment range | 55…70 A | |
| [Ui] rated insulation voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL |
| network frequency | 0...400 Hz | |
|---|---|---|
| mounting support | Plate, with specific accessories Rail, with specific accessories Under contactor | |
| tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | |
| auxiliary contact composition | 1 NO + 1 NC | |
| [Ith] conventional free air thermal current | 5 A for signalling circuit | |
| permissible current | 0.72 A at 500 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit | |
| [Ue] rated operational voltage | 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 | |
| associated fuse rating | 4 A gG for signalling circuit 4 A BS for signalling circuit | |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | |
| phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 | |
| control type | Red push-button: stop Blue push-button: reset | |
| temperature compensation | -20…60 °C | |
| connections - terminals | Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end | |
| tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 9 N.m - on screw clamp terminals | |
| height | 81 mm | |
| width | 70 mm | |
| depth | 115 mm | |
| net weight | 0.51 kg |
| protective treatment | TH conforming to IEC 60068 | |
|---|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 | |
| ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 | |
| ambient air temperature for storage | -60…70 °C | |
| flame retardance | V1 conforming to UL 94 | |
| mechanical robustness | Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7 | |
| dielectric strength | 2.2 kV at 50 Hz conforming to IEC 60947-1 | |
| standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495 | |
| product certifications | IEC UL CSA CCC EAC ATEX INERIS |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 510 g | |
| Package 1 Height | 8 cm | |
| Package 1 width | 8.6 cm | |
| Package 1 Length | 11.9 cm | |
| Unit Type of Package 2 | S02 | |
| Number of Units in Package 2 | 12 | |
| Package 2 Weight | 6.45 kg | |
| Package 2 Height | 15 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm | |
| Unit Type of Package 3 | P06 | |
| Number of Units in Package 3 | 192 | |
| Package 3 Weight | 113.7 kg | |
| Package 3 Height | 80 cm | |
| Package 3 width | 80 cm | |
| Package 3 Length | 60 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 12 months |
|---|
