Spesifikasi
| range | ComPact | |
|---|---|---|
| product name | ComPact NSXm | |
| range of product | ComPact NSXm | |
| device short name | NSXm 25B | |
| product or component type | Circuit breaker | |
| device application | Protection Distribution | |
| Number of poles | 3P | |
| protected poles description | 3d | |
| [In] rated current | 25 A at 40 °C | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz | |
| network type | AC | |
| network frequency | 50/60 Hz | |
| suitability for isolation | Yes conforming to EN/IEC 60947-2 | |
| utilisation category | Category A | |
| [Icu] rated ultimate short-circuit breaking capacity | 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Performance level | B 25 kA 415 V AC | |
| trip unit name | TM-D | |
| trip unit technology | Thermal-magnetic | |
| trip unit protection functions | LI | |
| control type | Toggle | |
| Circuit breaker mounting mode | By screws Clip-on |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz | |
|---|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV | |
| [Ics] rated service short-circuit breaking capacity | 50 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| mechanical durability | 20000 cycles | |
| electrical durability | 10000 cycles at 440 V In 20000 cycles at 440 V In/2 5000 cycles at 690 V In 10000 cycles at 690 V In/2 | |
| mounting support | Plate DIN rail | |
| Connection terminals | 1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper 1 Everlink lug wire size 2.5…70 mm², flexible copper | |
| connection pitch | 35 mm with spreaders 27 mm without spreaders | |
| 9 mm pitches | 9 module | |
| protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) | |
| trip unit rating | 25 A at 40 °C | |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable | |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In | |
| Long-time protection delay adjustment type tr | Fixed | |
| [Im] magnetic protection pick-up range | 600 A | |
| earth-leakage protection | Without | |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX | |
| Width (W) | 81 mm | |
| Height (H) | 137 mm | |
| Depth (D) | 80 mm | |
| net weight | 1.06 kg | |
| colour | Grey (RAL 7016) |
| standards | EN/IEC 60947 | |
|---|---|---|
| product certifications | CCC EAC Marine | |
| pollution degree | 3 conforming to IEC 60664-1 | |
| IP degree of protection | IP40 conforming to IEC 60529 | |
| IK degree of protection | IK07 conforming to IEC 62262 | |
| ambient air temperature for operation | -25…70 °C | |
| ambient air temperature for storage | -50…85 °C | |
| relative humidity | 0…95 % | |
| operating altitude | 0...2000 m without derating 2000...5000 m with derating |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 1.207 kg | |
| Package 1 Height | 9 cm | |
| Package 1 width | 12.5 cm | |
| Package 1 Length | 21.5 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|

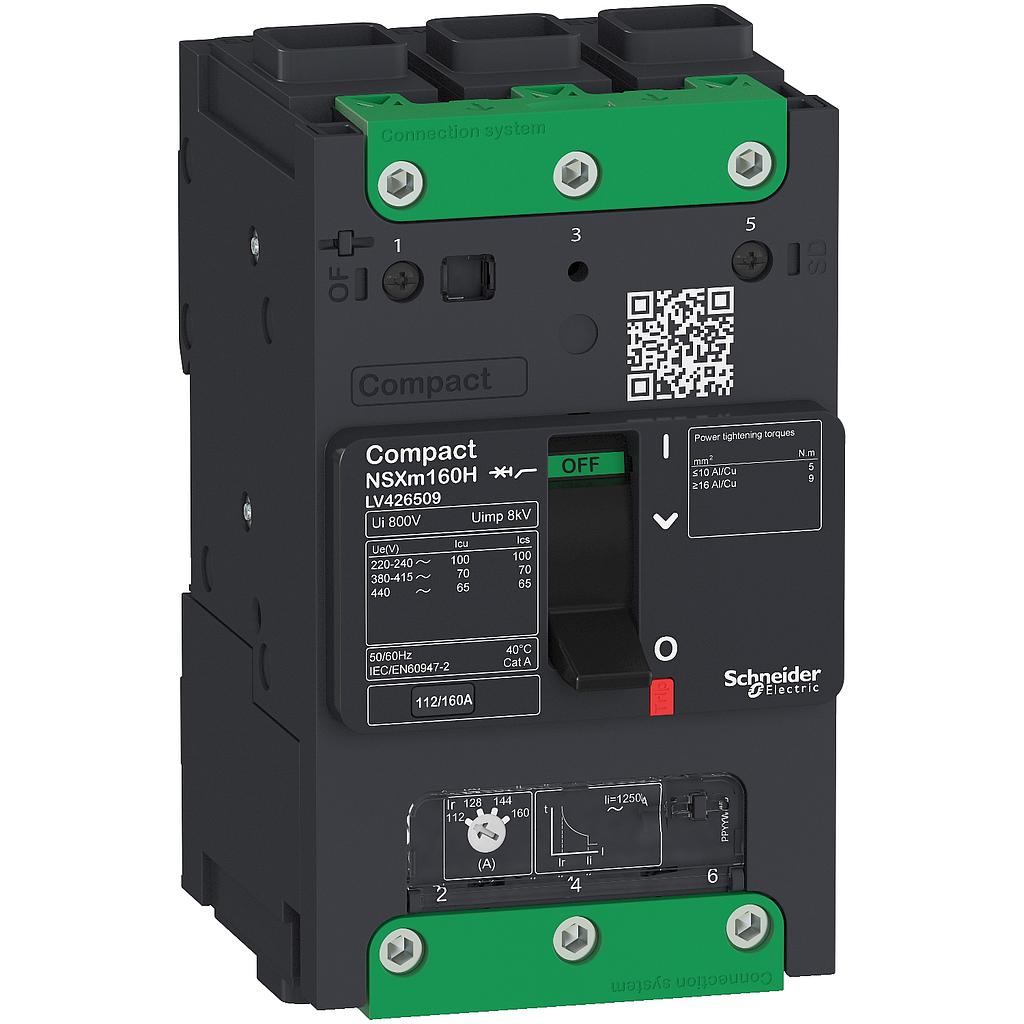

Specifications for Schneider NSXM 3P 25A 25KA B TMD
| # of Pole | 3 |
| Arus Nominal (In) | 25A |
| Icu (kA) | 25 |
