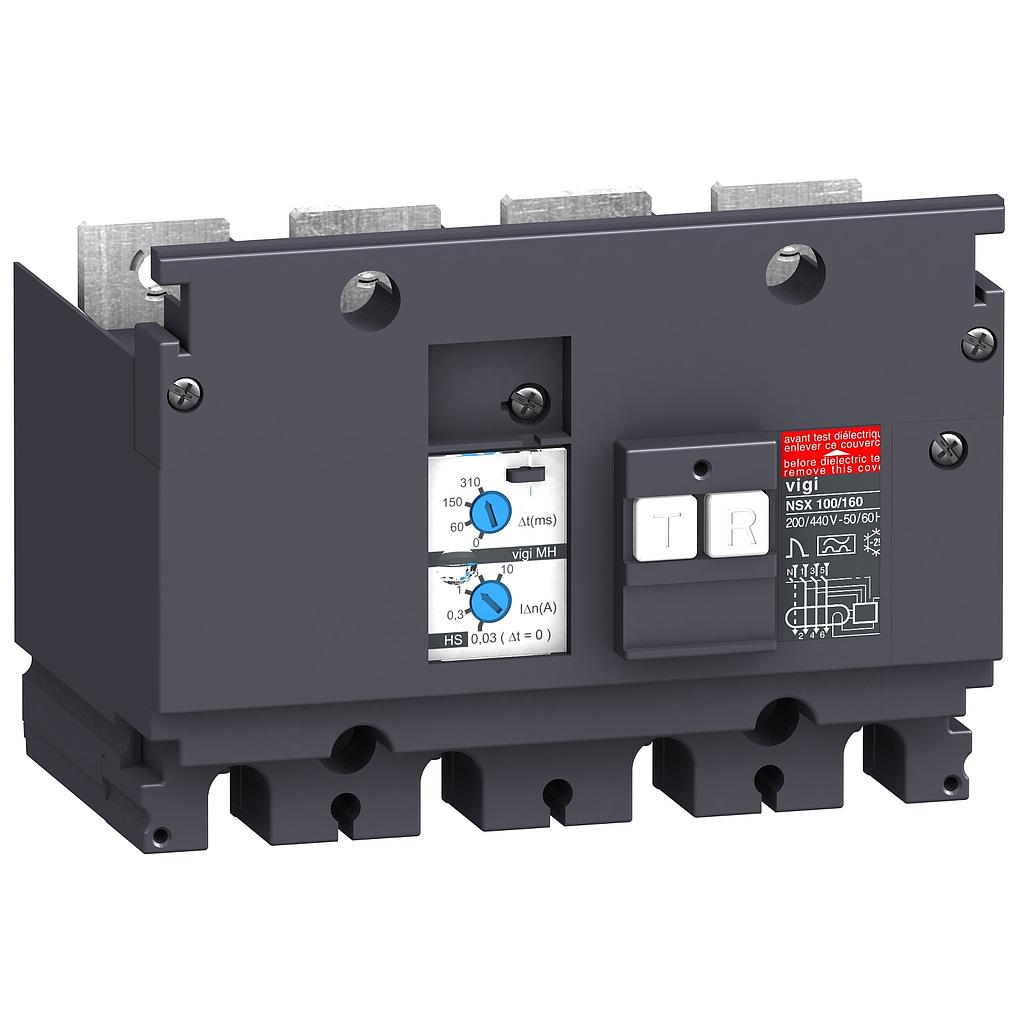

  4. 4P 200-440V AC 0.03-10A VIGI MH NSX CVS 250

4P 200-440V AC 0.03-10A VIGI MH NSX CVS 250

Rp 16,135,392.00 Rp 8,390,403.00 8390403 IDR

Rp 16,135,392.00

Option not available

    This combination does not exist.

    Add to Cart

    4P 200-440V AC 0.03-10A VIGI MH NSX CVS 250
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 8,390,403.00
    48.00 % Rp 16,135,392.00 8390403 IDR

    Rp 16,135,392.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 2
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    ComPact NSX100...250

    range
    ComPact

    product or component type
    Vigi add-on

    device application
    Wiring

    range compatibility
    ComPact NSX250 circuit breaker
    EasyPact CVS250 circuit breaker

    poles description
    4P

    [In] rated current
    250 A

    earth-leakage add-on module name
    MH

    earth-leakage protection class
    Class A

    residual earth-leakage sensitity adjustment type
    Adjustable 5 settings

    earth-leakage sensitivity
    0.03 A
    0.3 A
    1 A
    3 A
    10 A

    residual earth-leakage time delay adjustment type
    Adjustable 4 settings

    [Δt] residual earth-leakage time delay adjustment
    0 ms
    310 ms
    60 ms
    150 ms

    Complementary (see above)
    network type
    AC

    network frequency
    50/60 Hz

    [Ue] rated operational voltage
    200...440 V AC 50/60 Hz conforming to IEC 60947-2

    earth-leakage protection
    With

    maximum breaking time
    800 ms

    overvoltage category
    Class II

    Environment (see above)
    electrical shock protection class
    Class II

    standards
    IEC 60947-2

    Packing Units (see above)
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    1.281 kg

    Package 1 Height
    13.3 cm

    Package 1 width
    14 cm

    Package 1 Length
    17.2 cm

    Unit Type of Package 2
    S04

    Number of Units in Package 2
    12

    Package 2 Weight
    16.174 kg

    Package 2 Height
    30 cm

    Package 2 width
    40 cm

    Package 2 Length
    60 cm

    Unit Type of Package 3
    P12

    Number of Units in Package 3
    48

    Package 3 Weight
    76.552 kg

    Package 3 Height
    80 cm

    Package 3 width
    80 cm

    Package 3 Length
    120 cm

    Offer Sustainability (see above)
    EU RoHS Directive
    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information

    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    Contractual warranty (see above)
    Warranty
    12 months
