Spesifikasi
| range | TeSys | |
|---|---|---|
| product or component type | Contactor coil | |
| device short name | LX1FJ | |
| range compatibility | TeSys F LC1F contactor | |
| product compatibility | LC1F400 | |
| control circuit type | AC at 40...400 Hz | |
| [Uc] control circuit voltage | 380...400 V AC 40...400 Hz | |
| average resistance | 120 Ohm inrush at 20 °C 3310 Ohm holding at 20 °C | |
| inductance of closed circuit | 15.8 H | |
| operating time | 100...170 ms opening 40...75 ms closing | |
| mechanical durability | 10 Mcycles | |
| maximum operating rate | 2400 cyc/h 55 °C |
| coil technology | Without built-in suppressor module | |
|---|---|---|
| control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) | |
| inrush power in VA | 1075 VA 40...400 Hz cos phi 0.9 (at 20 °C) | |
| hold-in power consumption in VA | 15 VA 40...400 Hz cos phi 0.3 (at 20 °C) | |
| heat dissipation | 14 W at 40...400 Hz |
| ambient air temperature for operation | -5…55 °C | |
|---|---|---|
| net weight | 1 kg |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 1.073 kg | |
| Package 1 Height | 9.5 cm | |
| Package 1 width | 10 cm | |
| Package 1 Length | 18.5 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 12 months |
|---|
HOT PROMO
| range | TeSys | |
|---|---|---|
| product or component type | Contactor coil | |
| device short name | LX1FJ | |
| range compatibility | TeSys F LC1F contactor | |
| product compatibility | LC1F400 | |
| control circuit type | AC at 40...400 Hz | |
| [Uc] control circuit voltage | 380...400 V AC 40...400 Hz | |
| average resistance | 120 Ohm inrush at 20 °C 3310 Ohm holding at 20 °C | |
| inductance of closed circuit | 15.8 H | |
| operating time | 100...170 ms opening 40...75 ms closing | |
| mechanical durability | 10 Mcycles | |
| maximum operating rate | 2400 cyc/h 55 °C |
| coil technology | Without built-in suppressor module | |
|---|---|---|
| control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) | |
| inrush power in VA | 1075 VA 40...400 Hz cos phi 0.9 (at 20 °C) | |
| hold-in power consumption in VA | 15 VA 40...400 Hz cos phi 0.3 (at 20 °C) | |
| heat dissipation | 14 W at 40...400 Hz |
| ambient air temperature for operation | -5…55 °C | |
|---|---|---|
| net weight | 1 kg |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 1.073 kg | |
| Package 1 Height | 9.5 cm | |
| Package 1 width | 10 cm | |
| Package 1 Length | 18.5 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 12 months |
|---|
Recently Viewed Products

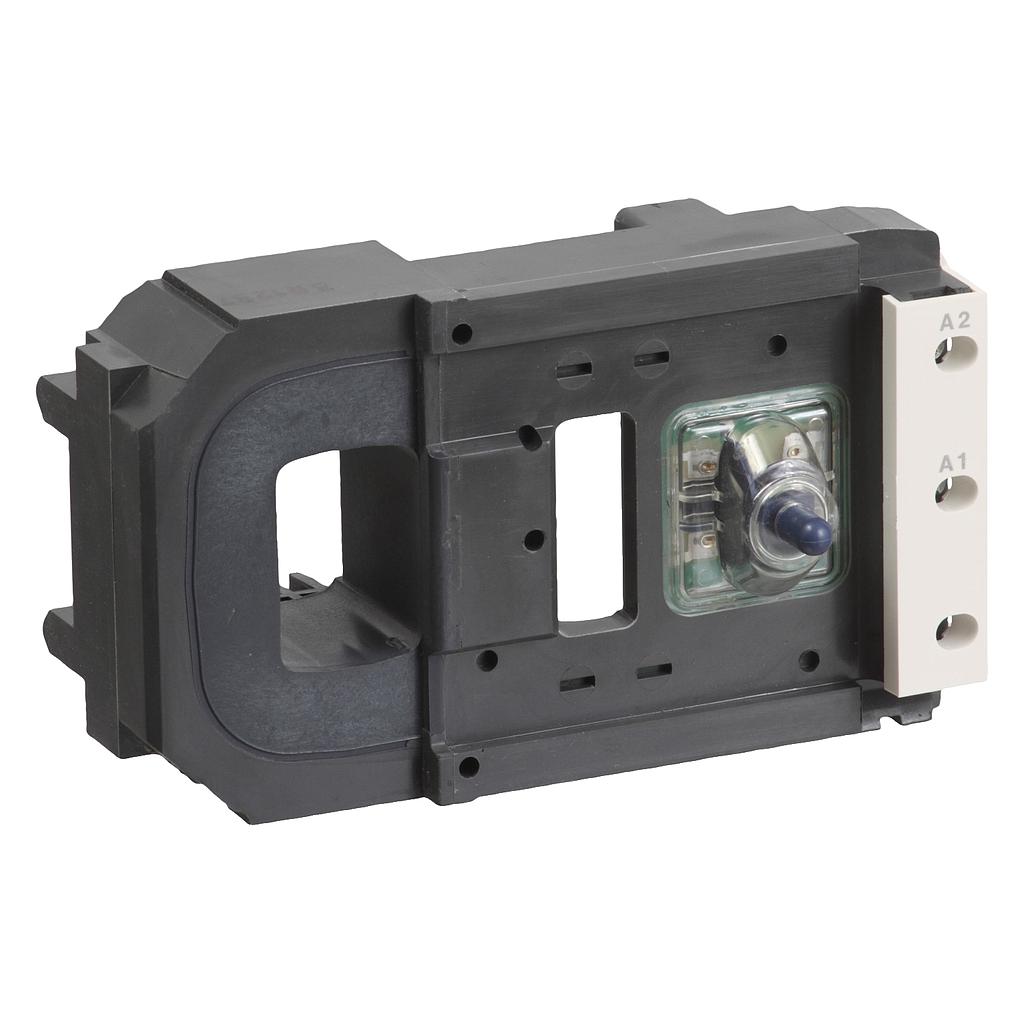

Schneider TeSys F - contactor coil - LX1FJ - 380...400V AC 40...400 Hz
