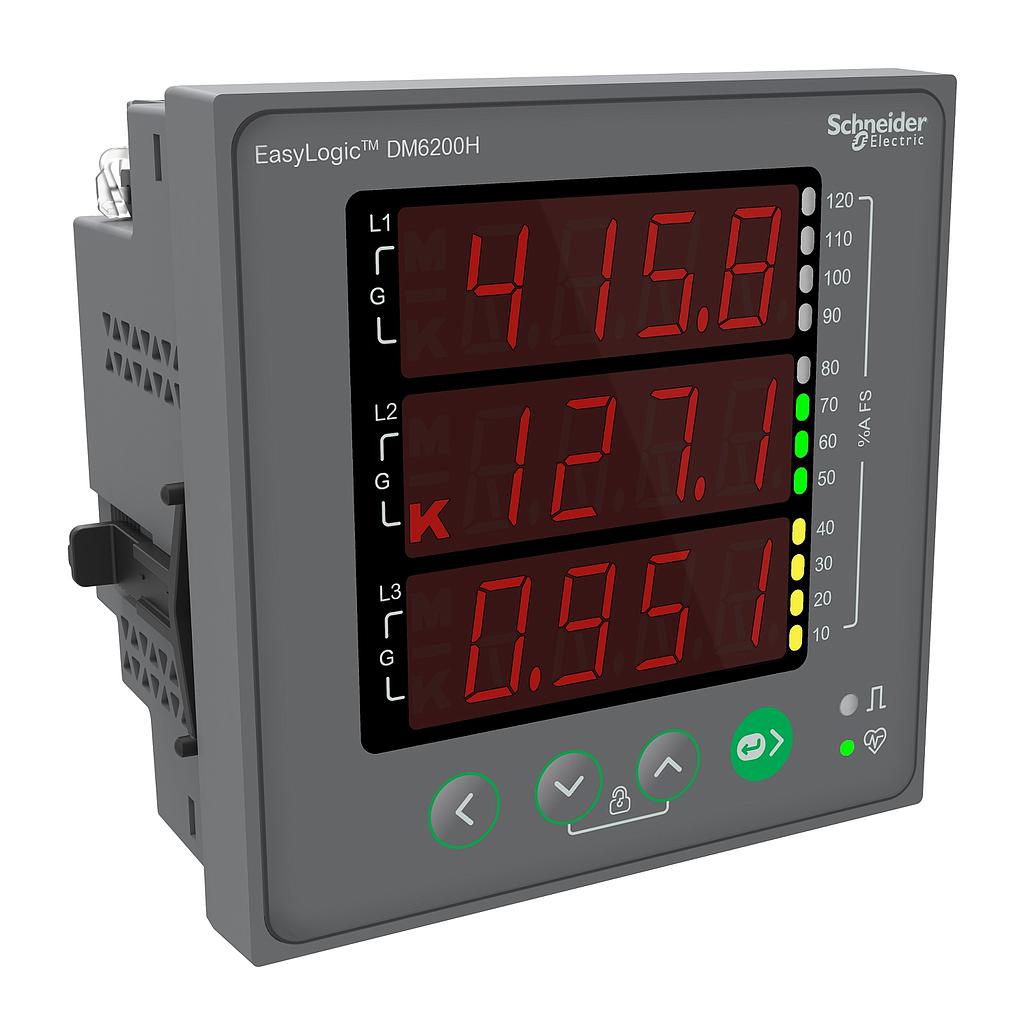

Schneider EasyLogic Schneider Electric EasyLogic DM6200H VAF PF DPM RS48 CL1.0 - METSEDM6200HCL10RS
Rp 1.187.577,00
43.00 %
Rp 2.083.470,00
Rp 2.083.470,00
Option not available
Schneider Electric EasyLogic DM6200H VAF PF DPM RS48 CL1.0 - METSEDM6200HCL10RS [Deskrispi] Digital Meter Seri 6000H dengan komunikasi [Spesifikasi] 1. product or component type : VAF PF meter 2. device application : Remote monitoring 3. type of measurement : -RPM -Voltage -Current -Frequency 4. metering type : -Frequency -Phase currents -Rotation speed -Voltage U21, U32, U13, V1, V2, V3 -Average voltage Vavg -Average current Iavg -Unbalance current -Unbalance voltage -Calculated neutral current 5. counter functions : -ON hour counting -Power interruption 6. [Us] rated supply voltage : -48...277 V AC 45...65 Hz -48...277 V DC 7. network frequency : 50 Hz, 60 Hz 8. [In] rated current : 1 A, 5 A 9. type of network : -1P + N -2P -2P + N -3P -3P + N 10. power consumption in VA : <= 4 VA at 240 V AC between phase and neutral 11. power consumption in W : <= 2 W at 240 V DC 12. display type : 8 segments LED 13. display colour : Red 14. messages display capacity : 3 fields of 4 characters 15. display digits : 12 digit(s) - 14.2 mm in height 16. communication of data : -Instantaneous and demand values -Reading of measurements -All counters -Revolution speed 17. tamperproof of settings : Protected by access code 18. sampling rate : 32 samples/cycle 19. measurement current : 5...6000 mA 20. Signal : Current 0.005...10 A (impedance 0.3 MOhm) 6 terminal(s) 21. measurement voltage : -46...277 V AC 50...60 Hz between phase and neutral -80...480 V AC 50...60 Hz between phases -277...999000 V AC 50...60 Hz with external VT 22. frequency measurement range : 45...65 Hz 23. number of inputs : 2 24. measurement accuracy : -> +/- 0.05 % frequency -> +/- 0.01 power factor -> +/- 1 % current -> +/- 1 % voltage 25. accuracy class : Class 1 26. Demand intervals : 1 s 27. local signalling : -Green LED : activity -Red LED : output signal 28. width : 96 mm 29. depth : 13 mm outside, 49 mm panel 30. height : 96 mm 31. product weight : 0.3 kg
HOT PROMO
Schneider Electric EasyLogic DM6200H VAF PF DPM RS48 CL1.0 - METSEDM6200HCL10RS [Deskrispi] Digital Meter Seri 6000H dengan komunikasi [Spesifikasi] 1. product or component type : VAF PF meter 2. device application : Remote monitoring 3. type of measurement : -RPM -Voltage -Current -Frequency 4. metering type : -Frequency -Phase currents -Rotation speed -Voltage U21, U32, U13, V1, V2, V3 -Average voltage Vavg -Average current Iavg -Unbalance current -Unbalance voltage -Calculated neutral current 5. counter functions : -ON hour counting -Power interruption 6. [Us] rated supply voltage : -48...277 V AC 45...65 Hz -48...277 V DC 7. network frequency : 50 Hz, 60 Hz 8. [In] rated current : 1 A, 5 A 9. type of network : -1P + N -2P -2P + N -3P -3P + N 10. power consumption in VA : <= 4 VA at 240 V AC between phase and neutral 11. power consumption in W : <= 2 W at 240 V DC 12. display type : 8 segments LED 13. display colour : Red 14. messages display capacity : 3 fields of 4 characters 15. display digits : 12 digit(s) - 14.2 mm in height 16. communication of data : -Instantaneous and demand values -Reading of measurements -All counters -Revolution speed 17. tamperproof of settings : Protected by access code 18. sampling rate : 32 samples/cycle 19. measurement current : 5...6000 mA 20. Signal : Current 0.005...10 A (impedance 0.3 MOhm) 6 terminal(s) 21. measurement voltage : -46...277 V AC 50...60 Hz between phase and neutral -80...480 V AC 50...60 Hz between phases -277...999000 V AC 50...60 Hz with external VT 22. frequency measurement range : 45...65 Hz 23. number of inputs : 2 24. measurement accuracy : -> +/- 0.05 % frequency -> +/- 0.01 power factor -> +/- 1 % current -> +/- 1 % voltage 25. accuracy class : Class 1 26. Demand intervals : 1 s 27. local signalling : -Green LED : activity -Red LED : output signal 28. width : 96 mm 29. depth : 13 mm outside, 49 mm panel 30. height : 96 mm 31. product weight : 0.3 kg
