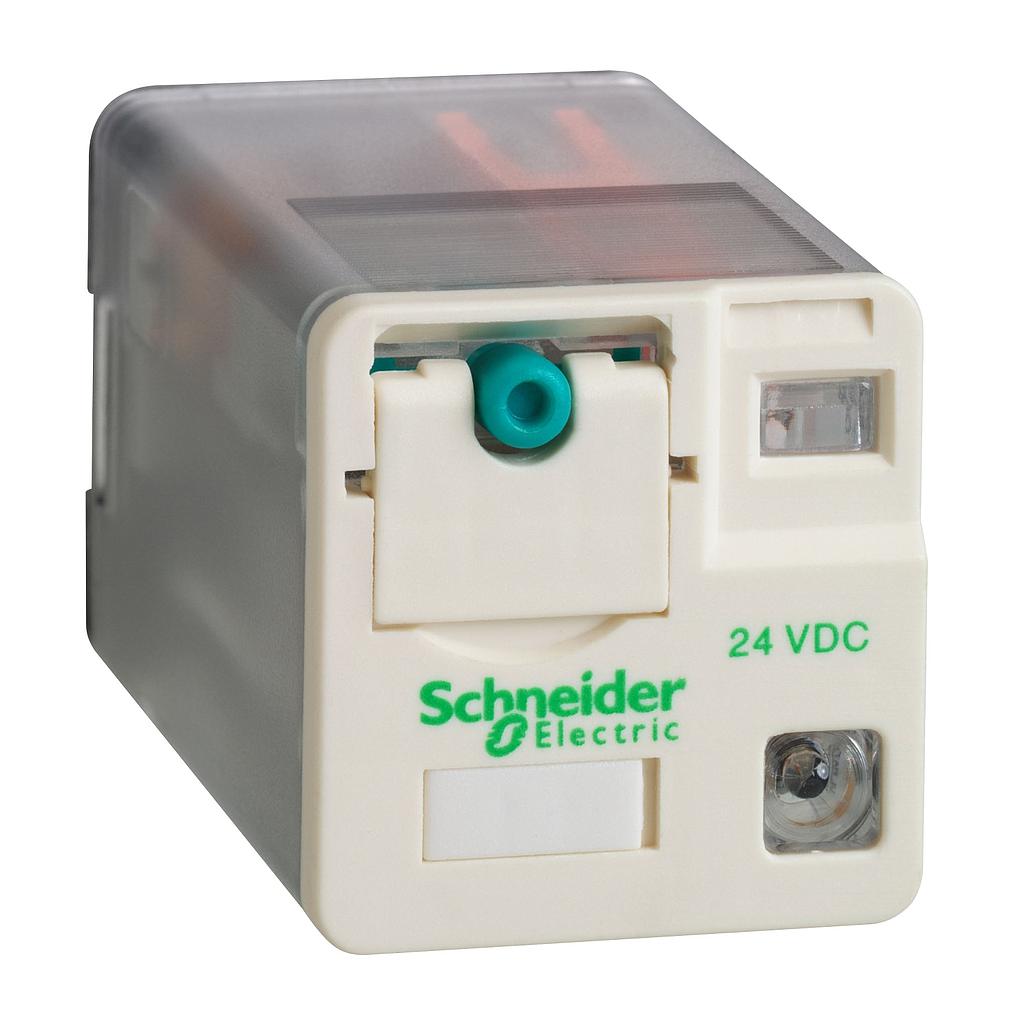

Schneider Universal plug-in relay - Zelio RUM - 3 C/O - 24 V DC - 10 A

Rp 318,980.00 Rp 185,008.00 185008 IDR

Rp 318,980.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Universal plug-in relay - Zelio RUM - 3 C/O - 24 V DC - 10 A
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 185,008.00
    42.00 % Rp 318,980.00 185008 IDR

    Rp 318,980.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 2
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony Relay
    series name
    Universal
    product or component type
    Plug-in relay
    device short name
    RUM
    contacts type and composition
    3 C/O
    [Uc] control circuit voltage
    24 V DC
    [Ithe] conventional enclosed thermal current
    10 A at -40…55 °C
    status LED
    Without
    control type
    Lockable test button
    utilisation coefficient
    20 %
    Complementary (see above)
    shape of pin
    Cylindrical
    [Ui] rated insulation voltage
    250 V conforming to IEC
    300 V conforming to CSA
    300 V conforming to UL
    [Uimp] rated impulse withstand voltage
    4 kV
    contacts material
    AgNi
    [Ie] rated operational current
    10 A AC-1/DC-1 (NO) conforming to IEC
    12 A at 28 V DC-1 conforming to UL
    16 A at 277 V AC-1 conforming to UL
    5 A AC-1/DC-1 (NC) conforming to IEC
    minimum switching current
    10 mA
    maximum switching voltage
    250 V AC conforming to IEC
    250 V DC conforming to IEC
    minimum switching voltage
    17 V
    Resistive rated load
    10 A at 250 V AC
    10 A at 28 V DC
    maximum switching capacity
    2500 VA AC
    280 W DC
    minimum switching capacity
    170 mW
    operating rate
    <= 18000 cycles/hour no-load
    <= 1200 cycles/hour under load
    mechanical durability
    5000000 cycles
    electrical durability
    100000 cycles for resistive load
    Average coil consumption in W
    1.4 W
    drop-out voltage threshold
    >= 0.1 Uc DC
    Operate time
    20 ms
    Average coil resistance
    470 Ohm at 20 °C +/- 10 %
    rated operational voltage limits
    19.2...26.4 V DC
    protection category
    RT I
    safety reliability data
    B10d = 100000
    operating position
    Any position
    net weight
    0.088 kg
    Environment (see above)
    dielectric strength
    1500 V AC between contacts
    1550 V AC between coil and contact
    1550 V AC between poles
    product certifications
    CSA
    UL
    GOST
    standards
    UL 508
    CSA C22.2 No 14
    EN/IEC 61810-1
    ambient air temperature for storage
    -40…85 °C
    ambient air temperature for operation
    -40…55 °C
    vibration resistance
    3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles in operation conforming to EN/IEC 60068-2-27
    4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)10 cycles not operating conforming to EN/IEC 60068-2-27
    IP degree of protection
    IP40 conforming to EN/IEC 60529
    shock resistance
    10 gn for in operation
    10 gn for not operating
    pollution degree
    3
    Packing Units (see above)
    Package 1 Weight
    0.084 kg
    Package 1 Height
    0.630 dm
    Package 1 width
    0.350 dm
    Package 1 Length
    0.355 dm
    Contractual warranty (see above)
    Warranty
    12 months
