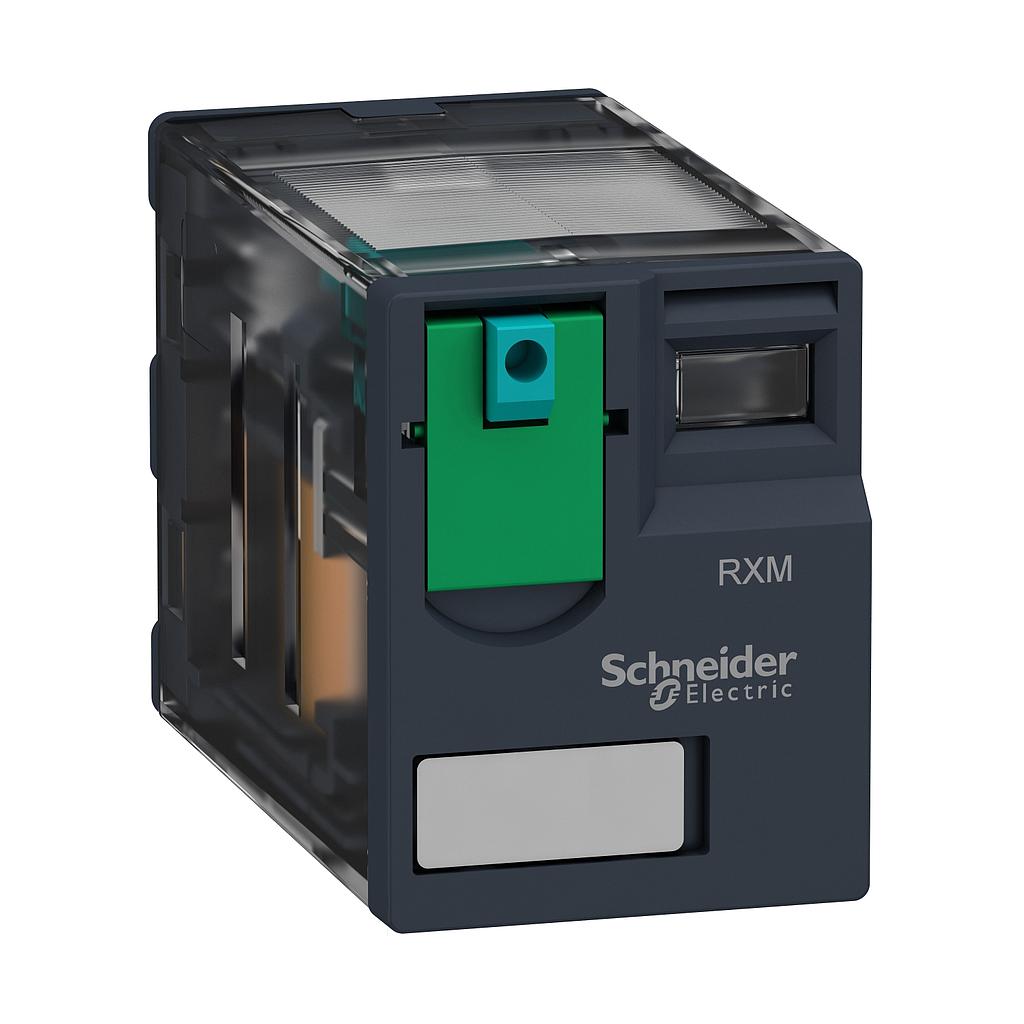

  5. Schneider Miniature Plug-in relay - Zelio RXM 4 C/O 24 V DC 6 A

Schneider Miniature Plug-in relay - Zelio RXM 4 C/O 24 V DC 6 A

Rp 133,194.00 Rp 77,252.00 77252 IDR

Rp 133,194.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Miniature Plug-in relay - Zelio RXM 4 C/O 24 V DC 6 A
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 77,252.00
    42.00 % Rp 133,194.00 77252 IDR

    Rp 133,194.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 138
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony Electromechanical Relays

    series name
    Miniature

    product or component type
    Plug-in relay

    device short name
    RXM

    contacts type and composition
    4 C/O

    [Uc] control circuit voltage
    24 V DC

    [Ithe] conventional enclosed thermal current
    6 A at -40…55 °C

    status LED
    Without

    control type
    Lockable test button

    utilisation coefficient
    20 %

    Complementary (see above)
    shape of pin
    Flat

    [Ui] rated insulation voltage
    250 V conforming to IEC
    300 V conforming to CSA
    300 V conforming to UL

    [Uimp] rated impulse withstand voltage
    2.5 kV during 1.2/50 µs

    contacts material
    AgNi

    [Ie] rated operational current
    3 A at 28 V (DC) NC conforming to IEC
    3 A at 250 V (AC) NC conforming to IEC
    6 A at 28 V (DC) NO conforming to IEC
    6 A at 250 V (AC) NO conforming to IEC
    6 A at 277 V (AC) conforming to UL
    8 A at 30 V (DC) conforming to UL

    maximum switching voltage
    250 V conforming to IEC

    resistive rated load
    6 A at 250 V AC
    6 A at 28 V DC

    maximum switching capacity
    1500 VA/168 W

    minimum switching capacity
    170 mW at 10 mA, 17 V

    operating rate
    <= 1200 cycles/hour under load
    <= 18000 cycles/hour no-load

    mechanical durability
    10000000 cycles

    electrical durability
    100000 cycles for resistive load

    average coil consumption in W
    0.9 W

    drop-out voltage threshold
    >= 0.1 Uc

    operate time
    20 ms

    release time
    20 ms

    average coil resistance
    650 Ohm at 20 °C +/- 10 %

    rated operational voltage limits
    19.2...26.4 V DC

    safety reliability data
    B10d = 100000

    protection category
    RT I

    test levels
    Level A group mounting

    operating position
    Any position

    CAD overall height
    79 mm

    CAD overall depth
    78.45 mm

    net weight
    0.037 kg

    device presentation
    Complete product

    Environment (see above)
    dielectric strength
    1300 V AC between contacts with micro disconnection
    2000 V AC between coil and contact
    2000 V AC between poles

    product certifications
    UL
    CE
    GOST
    CSA
    Lloyd's

    standards
    UL 508
    EN/IEC 61810-1
    CSA C22.2 No 14

    ambient air temperature for storage
    -40…85 °C

    ambient air temperature for operation
    -40…55 °C

    vibration resistance
    3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
    5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating

    IP degree of protection
    IP40 conforming to EN/IEC 60529

    shock resistance
    10 gn for in operation
    30 gn for not operating

    pollution degree
    2

    Packing Units (see above)
    Unit Type of Package 1
    PCE

    Number of Units in Package 1
    1

    Package 1 Weight
    40 g

    Package 1 Height
    2.11 cm

    Package 1 width
    2.73 cm

    Package 1 Length
    4.8 cm

    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product

    REACh Regulation
    REACh free of SVHC
    Yes

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Toxic heavy metal free
    Yes

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    California proposition 65
    WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

    Contractual warranty (see above)
    Warranty
    12 months
