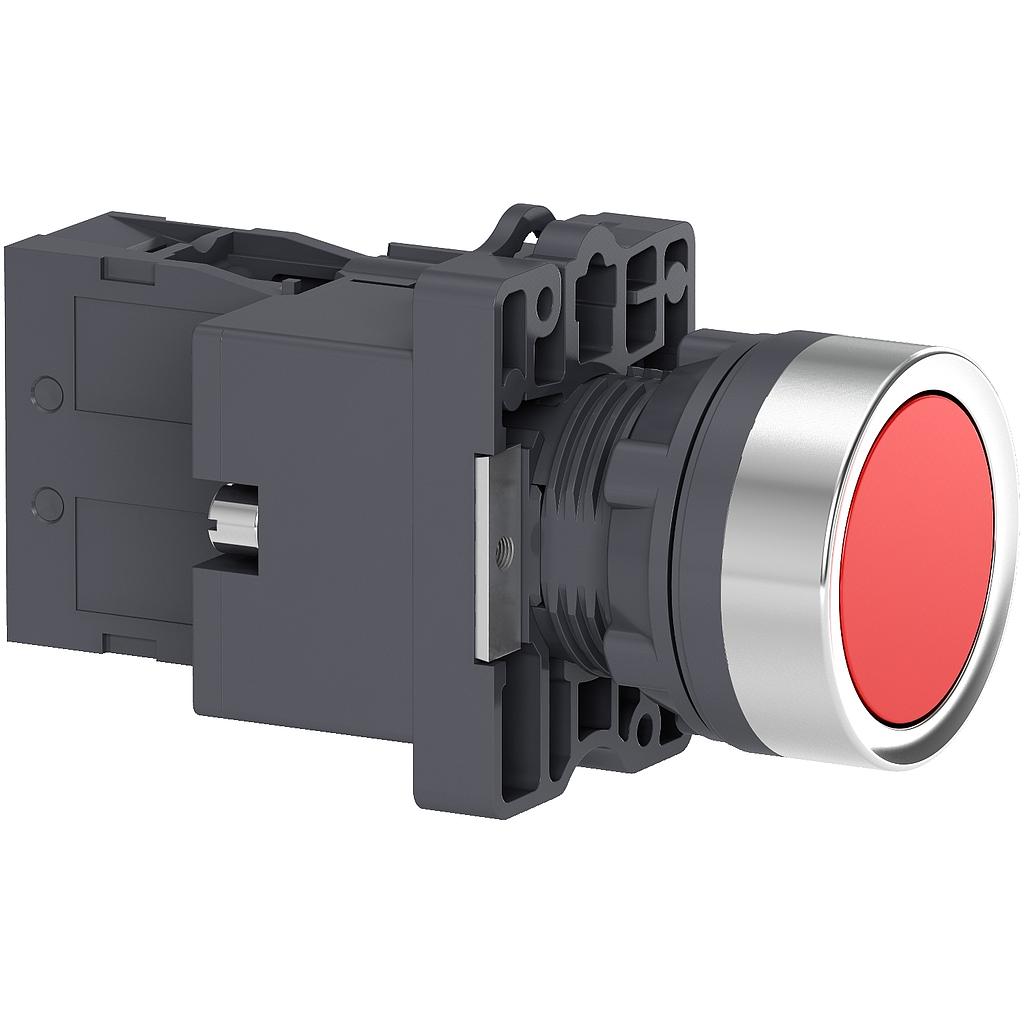

  4. FLUSH, IPB,220 V AC. RED ,1NC

FLUSH, IPB,220 V AC. RED ,1NC

Rp 144,627.00 Rp 83,883.00 83883 IDR

Rp 144,627.00

Option not available

    This combination does not exist.

    Add to Cart

    FLUSH, IPB,220 V AC. RED ,1NC
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 83,883.00
    42.00 % Rp 144,627.00 83883 IDR

    Rp 144,627.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 86
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony Easy XA2
    product or component type
    Complete illuminated push-button
    device short name
    XA2
    bezel material
    Plastic
    mounting diameter
    22 mm
    Complementary (see above)
    sale per indivisible quantity
    1
    protective treatment
    TC
    operating position
    Any position
    fixing center
    >= 30 x 40 mm (panel) - thickness: 1…5 mm
    fixing mode
    Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %)
    shape of signaling unit head
    Round
    type of operator
    spring return
    operator profile
    Red flush
    contacts type and composition
    1 NC
    contact operation
    Slow-break
    mechanical durability
    1500000 cycles
    connections - terminals
    Screw clamp terminals, clamping capacity: 2 x 1.5 mm²
    Screw clamp terminals, clamping capacity: 1 x 2.5 mm²
    Faston terminals, connection size: 6.3 mm
    Screw clamp terminals, clamping capacity: 1 x 0.5 mm²
    tightening torque
    0.8 N.m
    short-circuit protection
    10 A gL fuse conforming to IEC 60269-1
    [Ith] conventional free air thermal current
    10 A
    [Ui] rated insulation voltage
    600 V conforming to IEC 60947-4-1
    [Uimp] rated impulse withstand voltage
    6 kV IEC 60947-1
    [Ie] rated operational current
    3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
    0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
    electrical durability
    500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
    500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5
    signalling type
    Steady
    light source
    LED
    bulb base
    BA 9s
    [Us] rated supply voltage
    220 V AC 50/60 Hz
    supply voltage limits
    0.8…1.1 V AC
    current consumption
    < 20 mA
    service life
    10000 h
    width
    30 mm
    height
    42 mm
    depth
    79.5 mm
    net weight
    0.064 kg
    Environment (see above)
    ambient air temperature for storage
    -40…70 °C
    ambient air temperature for operation
    -25…55 °C
    overvoltage category
    Class I conforming to IEC 536
    IP degree of protection
    IP65
    IK degree of protection
    IK03 conforming to IEC 60529
    standards
    IEC 60947-5-1
    GB 14048.1
    IEC 60947-1
    GB 14048.5
    product certifications
    CE
    CCC
    marking
    CCC
    vibration resistance
    10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6
    shock resistance
    70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    62 g
    Package 1 Height
    4.5 cm
    Package 1 width
    6.5 cm
    Package 1 Length
    7 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
