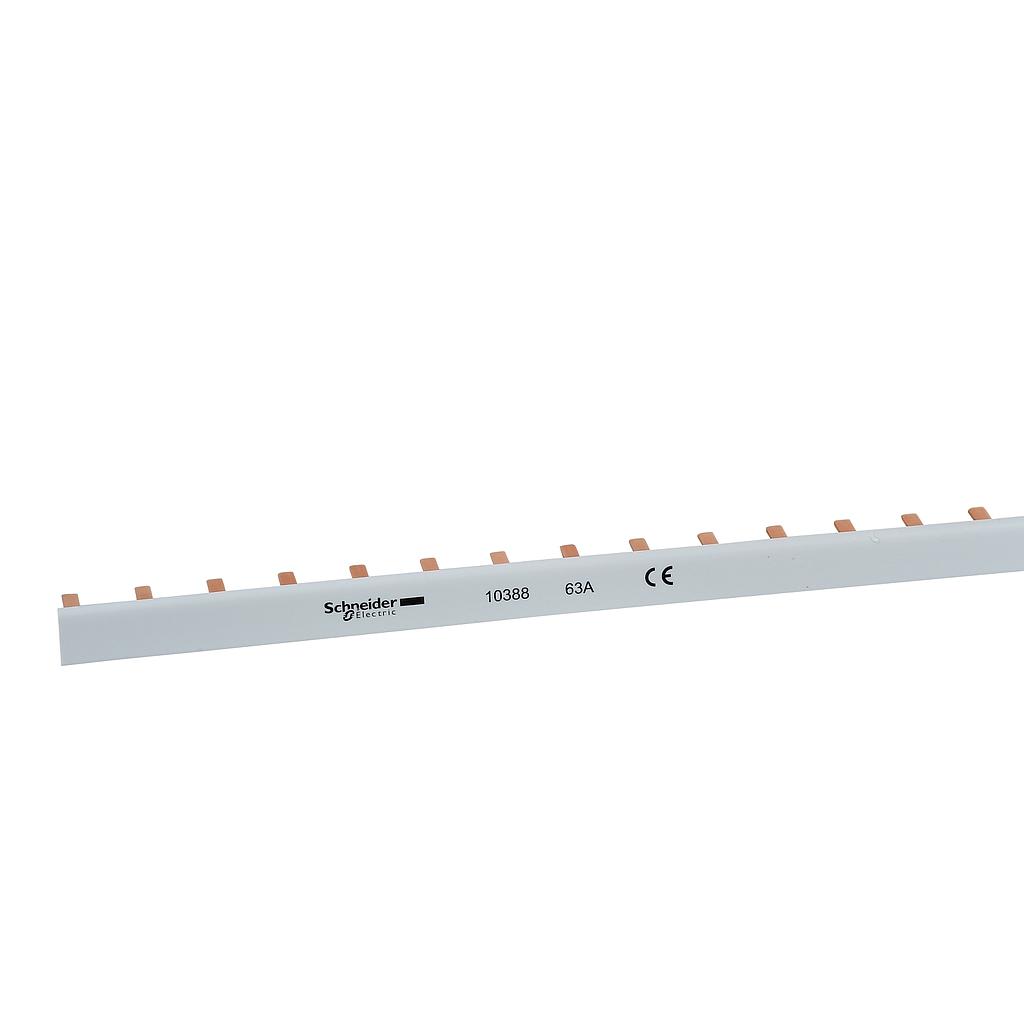

Schneider Domae - comb busbar - 3L - 18 mm pitch - 12 modules - 63A

# of Module : 12

Arus Nominal (In) : 63A

Rp 0.00 Rp 0.00 0 IDR

Rp 0.00

Option not available

  • # of Module
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider Domae - comb busbar - 3L - 18 mm pitch - 12 modules - 63A
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 0.00
0.00 % Rp 0.00 0 IDR

Rp 0.00

Option not available

Atur Jumlah & Catatan
Stock Total: Out of Stock

# of Module : 12

Arus Nominal (In) : 63A

Spesifikasi
Main (see above)
range
Domae
product or component type
Comb busbar
accessory / separate part category
Connection accessory
lines description
3L
Length in 18 mm modules
12
Complementary (see above)
number of ways
4 ways 3 L
poles configuration for 1 way
1 x 3P
connection pitch
18 mm
connector type
Tooth
distance between way
54 mm
insulation
Insulated
device presentation
Cuttable
[Ie] rated operational current
63 A at 40 °C
[Ue] rated operational voltage
230 V AC Ph/N
400 V AC Ph/Ph
[Ui] rated insulation voltage
500 V AC conforming to IEC 61439-1
mounting mode
Horizontal
mounting location
Top on tunnel type terminals
9 mm pitches
24
width
220 mm
colour
Light grey (RAL 7035)
range compatibility
Easy9 MCB
Easy9 RCBO
Easy9 RCCB
Easy9 switch
Domae
Environment (see above)
standards
IEC 60664
EN/IEC 60439-1
fire resistance
850 °C ( 30 s ) conforming to IEC 60695-2-1
pollution degree
3
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
80 g
Package 1 Height
1 cm
Package 1 width
2.5 cm
Package 1 Length
21.2 cm
Unit Type of Package 2
BB1
Number of Units in Package 2
25
Package 2 Weight
2.112 kg
Package 2 Height
11 cm
Package 2 width
11 cm
Package 2 Length
24 cm
Unit Type of Package 3
S03
Number of Units in Package 3
150
Package 3 Weight
12.885 kg
Package 3 Height
30 cm
Package 3 width
30 cm
Package 3 Length
40 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months
