Spesifikasi
| range of product | Domae | |
|---|---|---|
| product or component type | Surge arrester | |
| device short name | Domae Quick PF | |
| poles description | 3P + N | |
| remote signalling | Without | |
| surge arrester type | Electrical distribution network | |
| earthing system | TT TN-S |
| surge arrester class type | Type 2 | |
|---|---|---|
| surge arrester technology | MOV + GDT | |
| local signalling | Optical indicator | |
| [Ue] rated operational voltage | 230/400 V +/- 10 % AC 50/60 Hz | |
| [In] nominal discharge current | Differential mode: 5 kA (L/N) Common mode: 20 kA (N/PE) | |
| [Imax] maximum discharge current | Differential mode: 10 kA L/N Common mode: 20 kA N/PE | |
| [Uc] maximum continuous operating voltage | Common mode: 275 V N/PE Differential mode: 275 V L/N Common mode: 275 V L/PE | |
| maximum [Up] voltage protection level | Common mode <1.5 kV type 2 N/PE Differential mode <1.5 kV type 2 L/N | |
| [Ut] temporary overvoltage | 337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode | |
| [If] follow current | 0.1 kA common mode N/PE | |
| local signalling | White/red flag | |
| disconnector device type | Integrated circuit breaker - Icu 6 kA | |
| [Isccr] short-circuit current rating | 6 kA | |
| mounting mode | Clip-on | |
| mounting support | DIN rail | |
| 9 mm pitches | 10 | |
| height | 106.8 mm | |
| width | 88.4 mm | |
| depth | 74.1 mm | |
| net weight | 540 g | |
| colour | Grey (RAL 7035) | |
| response time | <= 25 ns | |
| connections - terminals | Tunnel type terminal (phase and neutral) 1 cable(s) 1…16 mm² Tunnel type terminal (ground) 1 cable(s) 10…25 mm² | |
| wire stripping length | 13 mm | |
| tightening torque | 2 N.m | |
| provided equipment | 1 intermediary terminal block Pre-fitted PE earth cable |
| standards | EN 61643-11:2012 IEC 61643-11:2011 | |
|---|---|---|
| quality labels | NF | |
| IK degree of protection | IK03 conforming to IEC 62262 | |
| relative humidity | 5…95 % | |
| ambient air temperature for operation | -25…70 °C | |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 684 g | |
| Package 1 Height | 8 cm | |
| Package 1 width | 11.8 cm | |
| Package 1 Length | 15.3 cm | |
| Unit Type of Package 2 | S03 | |
| Number of Units in Package 2 | 14 | |
| Package 2 Weight | 10.072 kg | |
| Package 2 Height | 30 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | |
| Halogen content performance | Halogen free product |
| Warranty | 12 months |
|---|

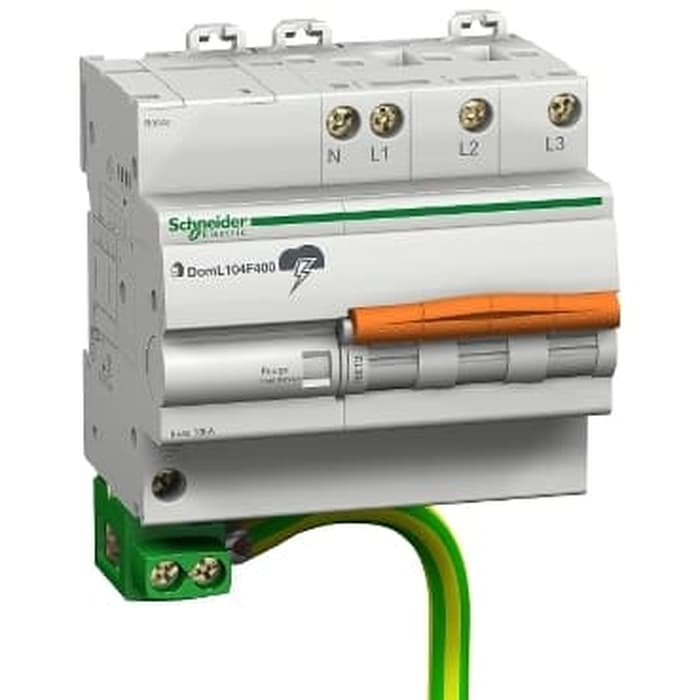

Specifications for Schneider Domae Quick PF modular surge arrester - 3P+N - 275V
| General Information | |
|---|---|
| # of Pole | 3 Pole + N |
| Uncategorized | |
| Operating Voltage | 275V |
