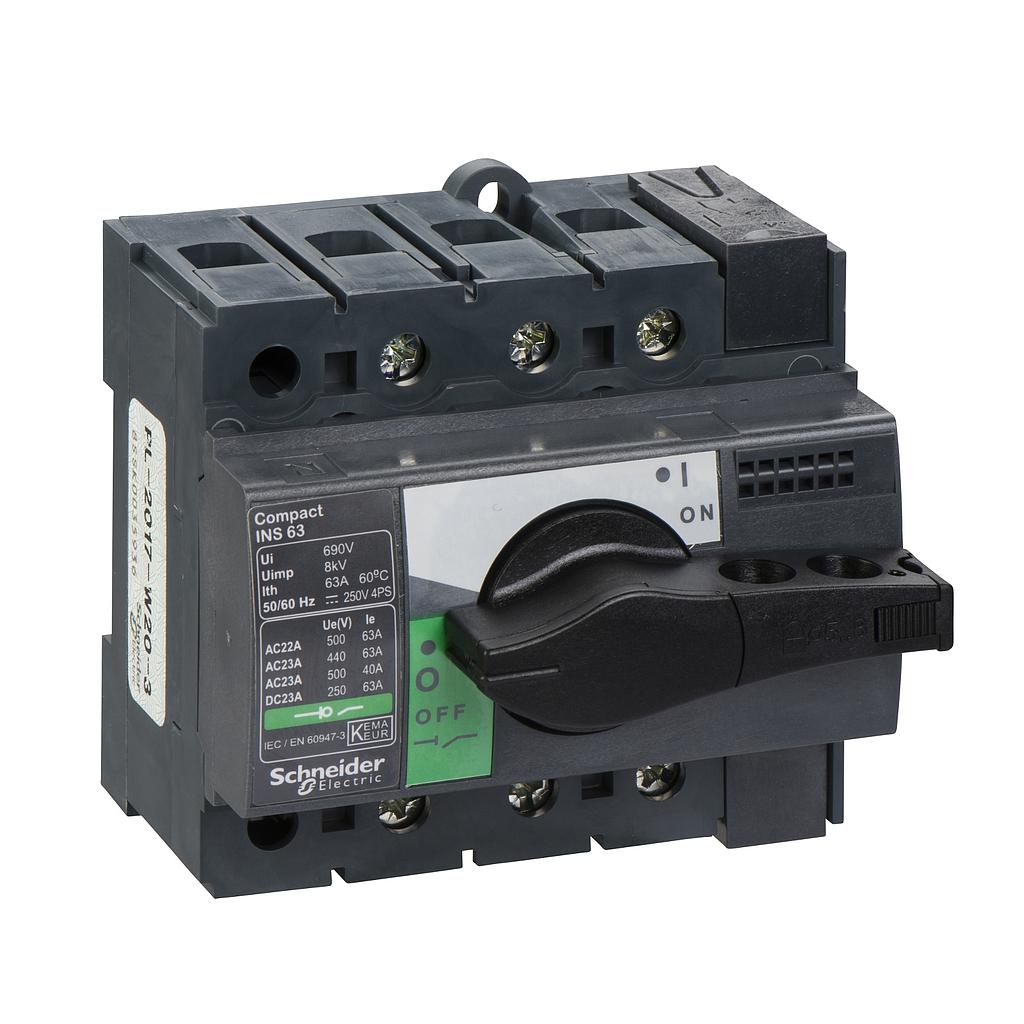

  5. Schneider Switch-disconnector Compact INS63 - 3 poles - 63 A

Schneider Switch-disconnector Compact INS63 - 3 poles - 63 A

# of Pole : 3

Arus Nominal (In) : 63A

Rp 1,601,763.00 Rp 832,916.00 832916 IDR

Rp 1,601,763.00

Option not available

  • # of Pole
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider Switch-disconnector Compact INS63 - 3 poles - 63 A
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 832,916.00
48.00 % Rp 1,601,763.00 832916 IDR

Rp 1,601,763.00

Option not available

Atur Jumlah & Catatan
Stock Total: 2

# of Pole : 3

Arus Nominal (In) : 63A

Keranjang Beli Sekarang
Spesifikasi
Main (see above)
range
ComPact
product name
Compact INS
product or component type
Switch disconnector
poles description
3P
network type
DC
AC
network frequency
50/60 Hz
[Ie] rated operational current
AC-22A: 63 A AC 50/60 Hz 220/240 V
AC-22A: 63 A AC 50/60 Hz 380/415 V
AC-22A: 63 A AC 50/60 Hz 440/480 V
AC-22A: 63 A AC 50/60 Hz 500 V
AC-23A: 40 A AC 50/60 Hz 500 V
AC-23A: 63 A AC 50/60 Hz 220/240 V
AC-23A: 63 A AC 50/60 Hz 380/415 V
AC-23A: 63 A AC 50/60 Hz 440/480 V
DC-22A: 63 A DC 125 V 2 poles in series
DC-23A: 63 A DC 125 V 2 poles in series
[Ui] rated insulation voltage
690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
[Ith] conventional free air thermal current
63 A at 60 °C
[Icm] rated short-circuit making capacity
15 kA switch-disconnector alone 500 V AC at 50/60 Hz
75 kA with upstream protection circuit breaker 500 V AC at 50/60 Hz
[Ue] rated operational voltage
125 V DC
500 V AC 50/60 Hz
suitability for isolation
Yes
contact position indicator
Yes
visible break
No
pollution degree
3
Complementary (see above)
control type
Rotary handle
handle colour
Black
mounting mode
Fixed
mounting support
Plate
DIN rail
upside connection
Front
downside connection
Front
cable cross section
1.5…50 mm²
maximum power
AC-23: 15 kW at 220/240 V AC 50/60 Hz
AC-23: 22 kW at 500/525 V AC 50/60 Hz
AC-23: 30 kW at 380/415 V AC 50/60 Hz
AC-23: 30 kW at 440 V AC 50/60 Hz
rated duty
Uninterrupted
intermittent duty class
Class 120 - 60 %
enclosure dimensions for Ithe
190 mm x 115 mm x 55 mm
[Icw] rated short-time withstand current
0.067 kA during 20 s conforming to IEC 60947-3
1.73 kA during 3 s conforming to IEC 60947-3
3 kA during 1 s conforming to IEC 60947-3
5.5 kA during 30 s conforming to IEC 60947-3
mechanical durability
20000 cycles
electrical durability
AC-22A: 1500 cycles 220/240 V AC 50/60 Hz
AC-22A: 1500 cycles 380/415 V AC 50/60 Hz
AC-22A: 1500 cycles 440 V AC 50/60 Hz
AC-22A: 1500 cycles 500 V AC 50/60 Hz
AC-23A: 1500 cycles 220/240 V AC 50/60 Hz
AC-23A: 1500 cycles 380/415 V AC 50/60 Hz
AC-23A: 1500 cycles 440 V AC 50/60 Hz
AC-23A: 1500 cycles 500 V AC 50/60 Hz
DC-22A: 1500 cycles 250 V DC 2 poles in series
DC-23A: 1500 cycles 250 V DC 2 poles in series
connection pitch
18 mm
height
85 mm
width
90 mm
depth
62.5 mm
net weight
0.5 kg
Environment (see above)
standards
IEC 60947-1
IEC 60947-3
product certifications
CCC
KEMA-KEUR
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
606 g
Package 1 Height
9.4 cm
Package 1 width
10.2 cm
Package 1 Length
10.5 cm
Unit Type of Package 2
S03
Number of Units in Package 2
18
Package 2 Weight
11.458 kg
Package 2 Height
30 cm
Package 2 width
30 cm
Package 2 Length
40 cm
Unit Type of Package 3
P12
Number of Units in Package 3
144
Package 3 Weight
102.872 kg
Package 3 Height
80 cm
Package 3 width
80 cm
Package 3 Length
120 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider Switch-disconnector Compact INS63 - 3 poles - 63 A

# of Pole 3
Arus Nominal (In) 63A
