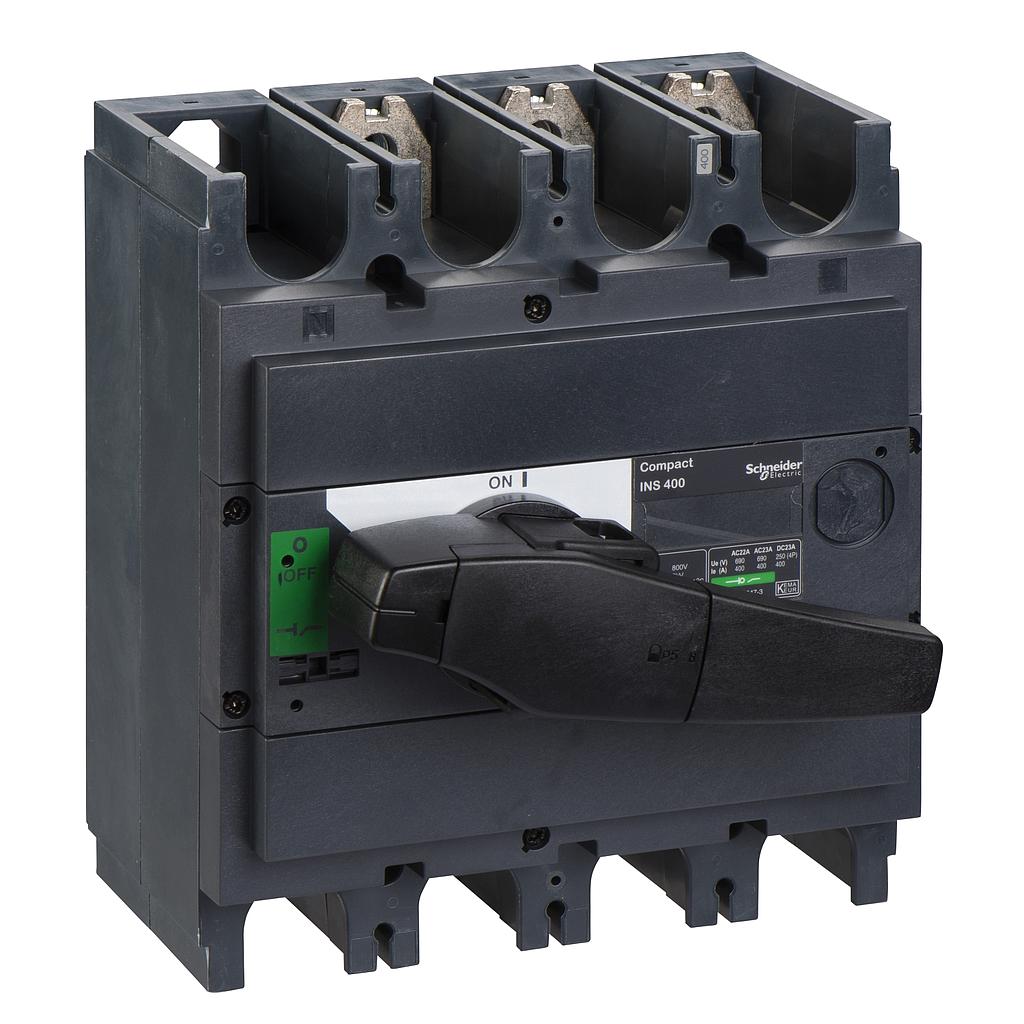

  4. Schneider Switch-disconnector Compact INS400 - 400 A - 3 poles

Schneider Switch-disconnector Compact INS400 - 400 A - 3 poles

# of Pole : 3

Arus Nominal (In) : 400A

Rp 10.926.840,00 Rp 6.119.030,00 6119030 IDR

Rp 10.926.840,00

Option not available

  • # of Pole
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider Switch-disconnector Compact INS400 - 400 A - 3 poles
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 6.119.030,00
44.00 % Rp 10.926.840,00 6119030 IDR

Rp 10.926.840,00

Option not available

Atur Jumlah & Catatan
Stock Total: 2

# of Pole : 3

Arus Nominal (In) : 400A

Keranjang Beli Sekarang
Spesifikasi
Main (see above)
range
ComPact
product or component type
Switch disconnector
product name
Compact INS
poles description
3P
network type
AC
DC
network frequency
50/60 Hz
[Ie] rated operational current
AC-22A: 400 A AC 50/60 Hz 220/240 V
AC-22A: 400 A AC 50/60 Hz 380/415 V
AC-22A: 400 A AC 50/60 Hz 440/480 V
AC-22A: 400 A AC 50/60 Hz 480 V NEMA
AC-22A: 400 A AC 50/60 Hz 500/525 V
AC-22A: 400 A AC 50/60 Hz 660/690 V
AC-23A: 400 A AC 50/60 Hz 220/240 V
AC-23A: 400 A AC 50/60 Hz 380/415 V
AC-23A: 400 A AC 50/60 Hz 440/480 V
AC-23A: 400 A AC 50/60 Hz 480 V NEMA
AC-23A: 400 A AC 50/60 Hz 500/525 V
AC-23A: 400 A AC 50/60 Hz 660/690 V
DC-22A: 400 A DC 125 V 2 poles in series
DC-23A: 400 A DC 125 V 2 poles in series
[Ui] rated insulation voltage
750 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
8 kV conforming to IEC 60947-3
[Ith] conventional free air thermal current
400 A at 60 °C
[Icm] rated short-circuit making capacity
330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
50 kA switch-disconnector alone 690 V AC at 50/60 Hz
[Ue] rated operational voltage
250 V DC
690 V AC 50/60 Hz
suitability for isolation
Yes
contact position indicator
Yes
visible break
No
pollution degree
3
Complementary (see above)
control type
Direct front rotary handle
handle colour
Black
mounting mode
Fixed
mounting support
Plate
Rail
upside connection
Front
downside connection
Front
maximum power
AC-23: 110 kW at 220/240 V AC 50/60 Hz
AC-23: 110 kW at 230 V AC 50/60 Hz (NEMA)
AC-23: 200 kW at 380/415 V AC 50/60 Hz
AC-23: 220 kW at 440 V AC 50/60 Hz
AC-23: 220 kW at 480 V AC 50/60 Hz (NEMA)
AC-23: 250 kW at 500/525 V AC 50/60 Hz
AC-23: 400 kW at 660/690 V AC 50/60 Hz
rated duty
Uninterrupted
[Icw] rated short-time withstand current
11.5 kA during 3 s conforming to IEC 60947-3
20 kA during 1 s conforming to IEC 60947-3
4 kA during 30 s conforming to IEC 60947-3
4.9 kA during 20 s conforming to IEC 60947-3
mechanical durability
10000 cycles
electrical durability
AC-22A: 1500 cycles 440 V AC 50/60 Hz
AC-22A: 1500 cycles 500 V AC 50/60 Hz
AC-22A: 1500 cycles 690 V AC 50/60 Hz
AC-23A: 1500 cycles 440 V AC 50/60 Hz
AC-23A: 1500 cycles 500 V AC 50/60 Hz
AC-23A: 1500 cycles 690 V AC 50/60 Hz
DC-23A: 1000 cycles 125 V DC
connection pitch
45 mm
height
205 mm
width
185 mm
depth
130 mm
net weight
4.6 kg
Environment (see above)
standards
IEC 60947-1
IEC 60947-3
product certifications
KEMA-KEUR
CCC
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
5.005 kg
Package 1 Height
19 cm
Package 1 width
19.5 cm
Package 1 Length
22.5 cm
Unit Type of Package 2
S04
Number of Units in Package 2
4
Package 2 Weight
21 kg
Package 2 Height
30 cm
Package 2 width
40 cm
Package 2 Length
60 cm
Unit Type of Package 3
P12
Number of Units in Package 3
16
Package 3 Weight
95.144 kg
Package 3 Height
80 cm
Package 3 width
80 cm
Package 3 Length
120 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months
