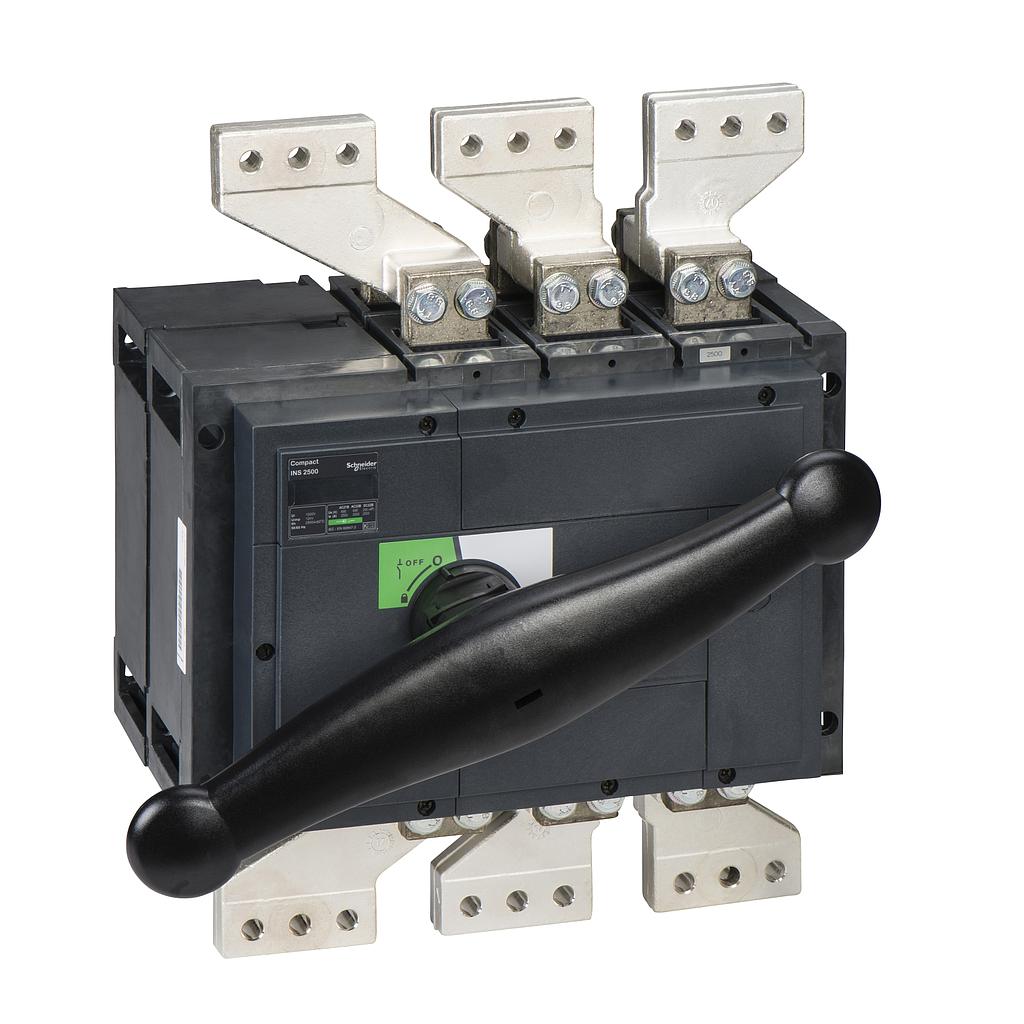

  4. Schneider Switch-disconnector Compact INS2500 - 2500 A - 3 poles

Schneider Switch-disconnector Compact INS2500 - 2500 A - 3 poles

# of Pole : 3

Arus Nominal (In) : 2500A

Rp 85.677.570,00 Rp 47.979.439,00 47979439 IDR

Rp 85.677.570,00

Option not available

  • # of Pole
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider Switch-disconnector Compact INS2500 - 2500 A - 3 poles
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 47.979.439,00
44.00 % Rp 85.677.570,00 47979439 IDR

Rp 85.677.570,00

Option not available

Atur Jumlah & Catatan
Stock Total: Out of Stock

# of Pole : 3

Arus Nominal (In) : 2500A

Keranjang Beli Sekarang
Spesifikasi
Main (see above)
range
ComPact
product name
Compact INS
product or component type
Switch disconnector
poles description
3P
network type
AC
DC
network frequency
50/60 Hz
[Ie] rated operational current
AC-21B: 2500 A AC 50/60 Hz 220/240 V
AC-21B: 2500 A AC 50/60 Hz 380/415 V
AC-21B: 2500 A AC 50/60 Hz 440/480 V
AC-21B: 2500 A AC 50/60 Hz 480 V NEMA
AC-21B: 2500 A AC 50/60 Hz 500/525 V
AC-21B: 2500 A AC 50/60 Hz 660/690 V
AC-22B: 2500 A AC 50/60 Hz 220/240 V
AC-22B: 2500 A AC 50/60 Hz 380/415 V
AC-22B: 2500 A AC 50/60 Hz 440/480 V
AC-22B: 2500 A AC 50/60 Hz 480 V NEMA
AC-22B: 2500 A AC 50/60 Hz 500/525 V
AC-22B: 2500 A AC 50/60 Hz 660/690 V
DC-21B: 2500 A DC 125 V 2 poles in series
DC-22B: 2500 A DC 125 V 2 poles in series
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
12 kV
[Ith] conventional free air thermal current
2500 A at 60 °C
[Icm] rated short-circuit making capacity
105 kA switch-disconnector alone 690 V AC at 50/60 Hz
105 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz
[Ue] rated operational voltage
125 V DC
690 V AC 50/60 Hz
suitability for isolation
Yes
contact position indicator
Yes
visible break
No
pollution degree
3
Complementary (see above)
control type
Direct front rotary handle
handle colour
Black
mounting mode
Fixed
mounting support
Plate
Rail
upside connection
Front
downside connection
Front
rated duty
Uninterrupted
intermittent duty class
Class 120 - 60 %
[Icw] rated short-time withstand current
50 kA during 0.5 s conforming to IEC 60947-3
11 kA during 30 s conforming to IEC 60947-3
13 kA during 20 s conforming to IEC 60947-3
30 kA during 3 s conforming to IEC 60947-3
50 kA during 0.8 s conforming to IEC 60947-3
50 kA during 1 s conforming to IEC 60947-3
mechanical durability
3000 cycles
electrical durability
AC-21B: 100 cycles 220/240 V AC 50/60 Hz
AC-21B: 100 cycles 380/415 V AC 50/60 Hz
AC-21B: 100 cycles 440/480 V AC 50/60 Hz
AC-21B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA
AC-21B: 100 cycles 500/525 V AC 50/60 Hz
AC-21B: 100 cycles 660/690 V AC 50/60 Hz
AC-22B: 100 cycles 220/240 V AC 50/60 Hz
AC-22B: 100 cycles 380/415 V AC 50/60 Hz
AC-22B: 100 cycles 440/480 V AC 50/60 Hz
AC-22B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA
AC-22B: 100 cycles 500/525 V AC 50/60 Hz
AC-22B: 100 cycles 660/690 V AC 50/60 Hz
DC-21B: 100 cycles 125 V DC 2 poles in series
DC-22B: 100 cycles 125 V DC 2 poles in series
connection pitch
70 mm
height
440 mm
width
347.5 mm
depth
227.5 mm
net weight
35 kg
Environment (see above)
standards
IEC 60947-1
IEC 60947-3
product certifications
KEMA-KEUR
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
48 kg
Package 1 Height
44 cm
Package 1 width
59 cm
Package 1 Length
61 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider Switch-disconnector Compact INS2500 - 2500 A - 3 poles

# of Pole 3
Arus Nominal (In) 2500A
