  4. Closing Release XF Untuk ACB FIXED TYPE 220vac

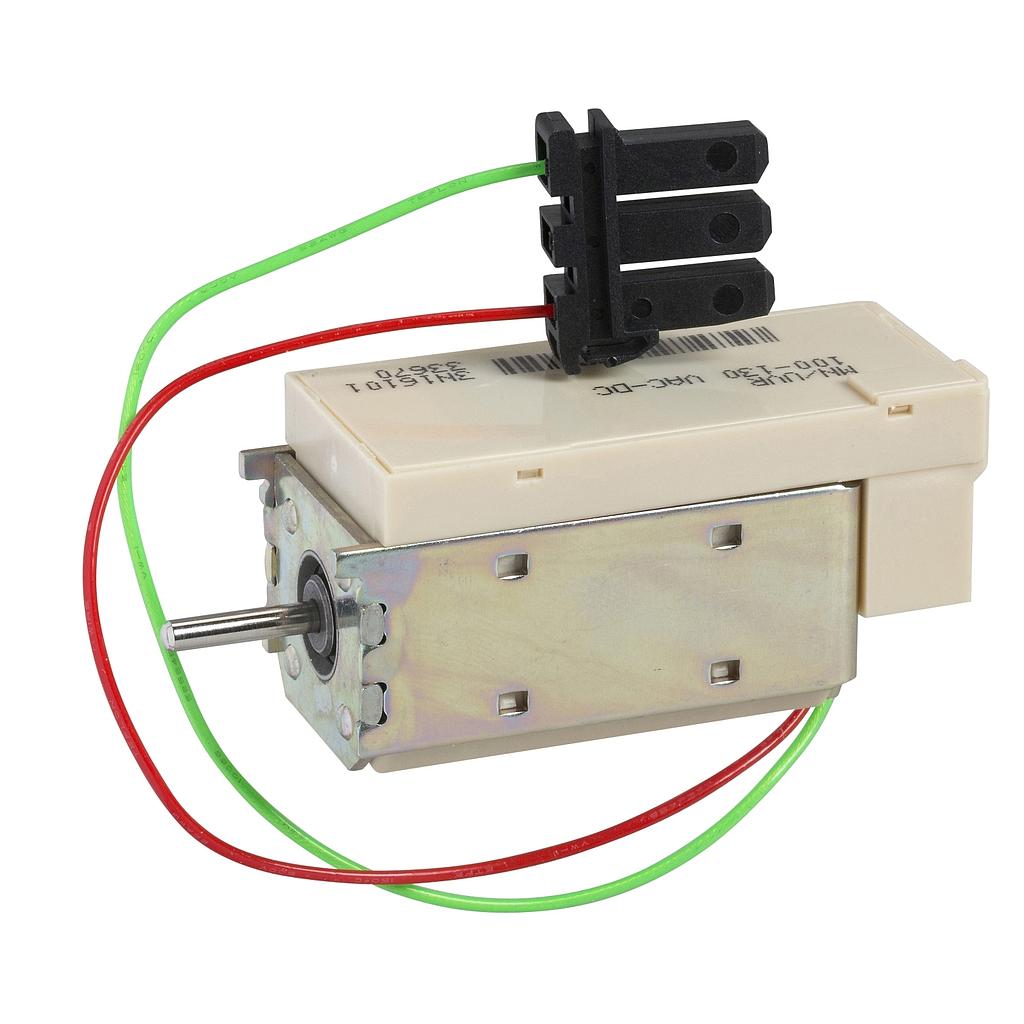

Closing Release XF Untuk ACB FIXED TYPE 220vac

Rp 2,910,841.00 Rp 1,513,637.00 1513637 IDR

Rp 2,910,841.00

Option not available

    This combination does not exist.

    Add to Cart

    Closing Release XF Untuk ACB FIXED TYPE 220vac
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 1,513,637.00
    48.00 % Rp 2,910,841.00 1513637 IDR

    Rp 2,910,841.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 10
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    device short name
    XF
    product or component type
    Voltage release
    device application
    Control
    range compatibility
    MasterPact NT
    Masterpact NW
    [Uc] control circuit voltage
    200...250 V AC 50/60 Hz
    200...250 V DC
    Complementary (see above)
    threshold tripping voltage
    0.85...1.1 Un
    supply holding power
    4.5 VA
    mounting mode
    Fixed
    response time
    55 ms (Masterpact NT)
    70 ms at 800 A (Masterpact NW)
    70 ms at 1000 A (Masterpact NW)
    70 ms at 1250 A (Masterpact NW)
    70 ms at 1600 A (Masterpact NW)
    70 ms at 2000 A (Masterpact NW)
    70 ms at 2500 A (Masterpact NW)
    70 ms at 3200 A (Masterpact NW)
    70 ms at 4000 A (Masterpact NW)
    80 ms at 4000 A (Masterpact NW)
    80 ms at 5000 A (Masterpact NW)
    80 ms at 6300 A (Masterpact NW)
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    1.162 kg
    Package 1 Height
    3.5 cm
    Package 1 width
    6.5 cm
    Package 1 Length
    8.5 cm
    Offer Sustainability (see above)
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    Contractual warranty (see above)
    Warranty
    12 months
