  4. Schneider Auxiliary contact - 4 OC 48198

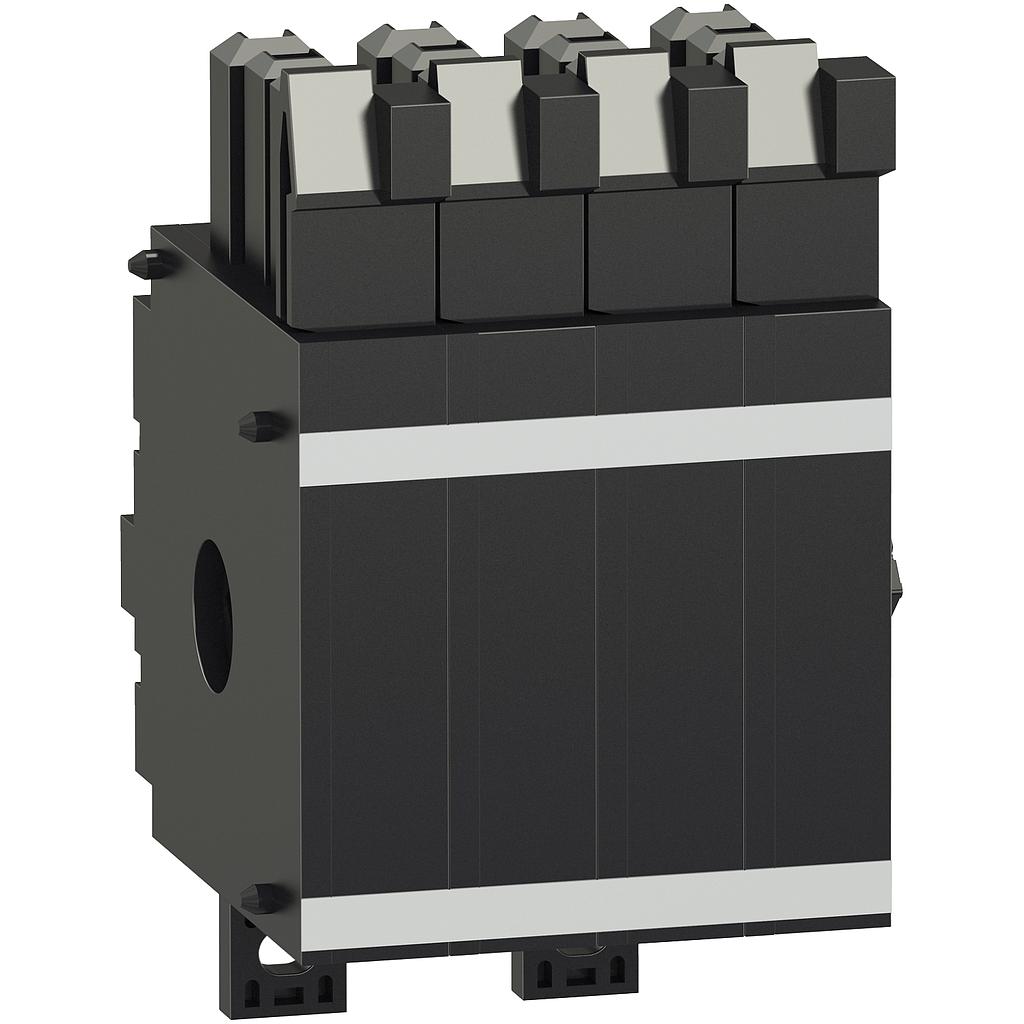

Schneider Auxiliary contact - 4 OC 48198

Rp 3,935,893.00 Rp 1,731,792.00 1731792 IDR

Rp 3,935,893.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Auxiliary contact - 4 OC 48198
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 1,731,792.00
    56.00 % Rp 3,935,893.00 1731792 IDR

    Rp 3,935,893.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    product or component type
    Auxiliary contact
    device short name
    4 OF
    range compatibility
    Masterpact NW
    signal contacts composition
    4 NO/NC
    Complementary (see above)
    auxiliary contacts type
    Standard
    mounting mode
    Fixed
    [Ie] rated operational current
    AC-12: 10 A at 240/380 V AC 50/60 Hz
    AC-12: 10 A at 480 V AC 50/60 Hz
    AC-12: 6 A at 690 V AC 50/60 Hz
    DC-12: 10 A at 125 V DC
    DC-12: 3 A at 250 V DC
    minimum load
    100 mA at 24 V
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    1.042 kg
    Package 1 Height
    4 cm
    Package 1 width
    7 cm
    Package 1 Length
    4 cm
    Offer Sustainability (see above)
    REACh Regulation
    EU RoHS Directive
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    Contractual warranty (see above)
    Warranty
    12 months
