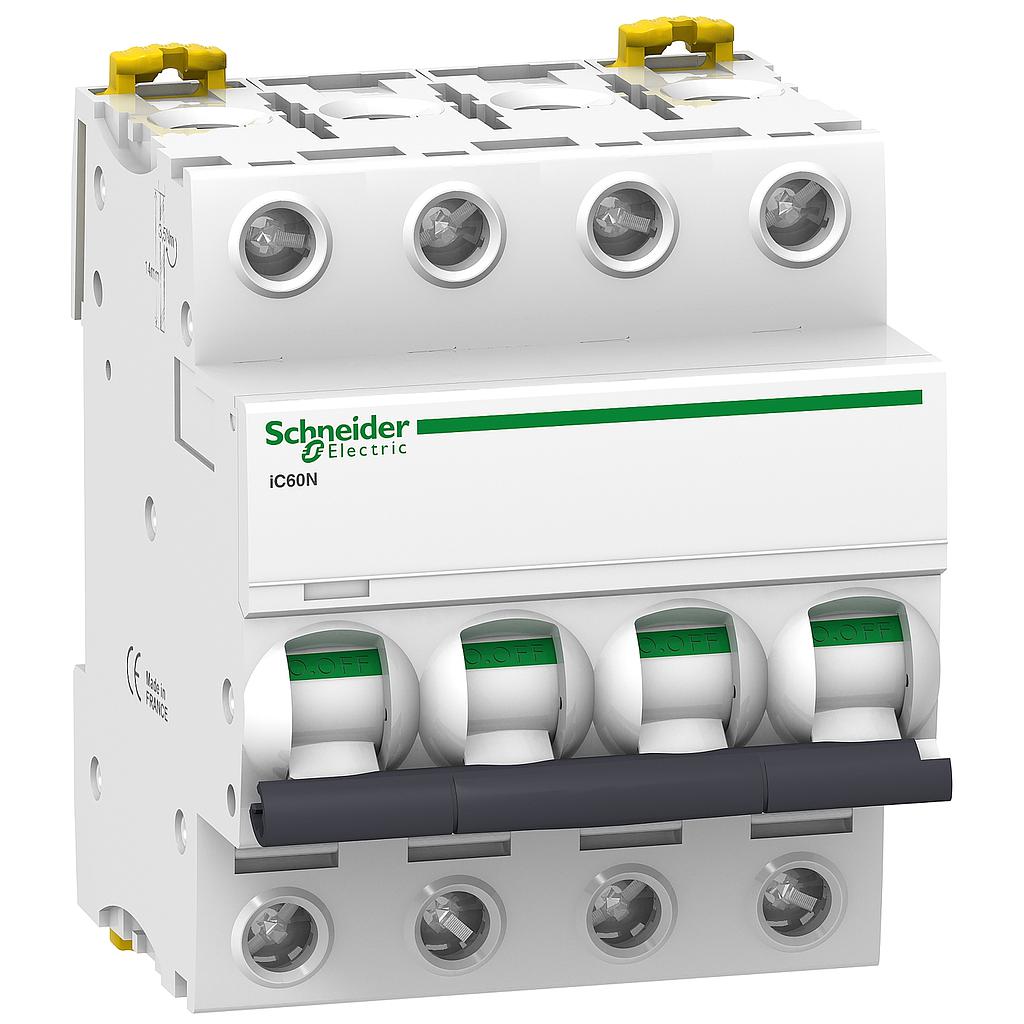

Schneider Acti 9 ACTI 9 IC60N 4P 6A 6KA KURVA C

# of Pole : 4

Arus Nominal (In) : 6A

Rp 965.700,00 Rp 492.507,00 492507 IDR

Rp 965.700,00

Option not available

  • # of Pole
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider Acti 9 ACTI 9 IC60N 4P 6A 6KA KURVA C
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 492.507,00
49.00 % Rp 965.700,00 492507 IDR

Rp 965.700,00

Option not available

Atur Jumlah & Catatan
Stock Total: 12

# of Pole : 4

Arus Nominal (In) : 6A

Keranjang Beli Sekarang
Spesifikasi

Schneider Electric MCB iC60N - Kurva C - 4P 6A - A9F74406 [Deskripsi] Acti 9 iC60N dengan Indikator Pengaman (VisiTrip & VisiSafe) -Kurva C (magnetis trip antara 5 dan 10 In) dengan lebar modul per kutub 18mm. -Ketahanan elektrikal (Electrical Trip) 10.000 kali, dan ketahanan mekanikal (Mechanical Trip) 20.000 kali. -Dapat digunakan untuk jaringan listrik DC -(Untuk 1 Pole hingga 72VDC, 2 Pole hingga 125VDC, 3 Pole hingga 180VDC, 4 Pole hingga 250VDC -Koneksi kabel ke terminal : 1 sampai 25A -> maksimum 16 mm2 kabel serabut atau 25 mm2 kabel tunggal. 32 sampai 63A -> maksimum 25 mm2 kabel serabut atau 35 mm2 kabel tunggal. [Spesifikasi] 1. [In] rated current : 6 A 2. network type : AC, DC 3. trip unit technology : Thermal-magnetic 4. curve code : C 5. breaking capacity : -50 kA Icu conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz -50 kA Icu conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz -10 kA Icu conforming to EN/IEC 60947-2 - <= 250 V DC -50 kA Icu conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz -50 kA Icu conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz -25 kA Icu conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz -6000 A Icn conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz 6. utilisation category : -Category A conforming to EN 60947-2 -Category A conforming to IEC 60947-2 7. suitability for isolation : -Yes conforming to EN 60947-2 -Yes conforming to IEC 60947-2 -Yes conforming to EN 60898-1 -Yes conforming to IEC 60898-1 8. standards : -EN 60898-1 -EN 60947-2 -IEC 60898-1 -IEC 60947-2 9. quality labels : NF 10. network frequency : 50/60 Hz 11. magnetic tripping limit : 8 x In +/- 20 % 12. 9 mm pitches : 8 13. Height : 85 mm 14. Width : 72 mm 15. Depth : 78.5 mm 16. product weight : 0.5 kg 17. colour : white


Main (see above)
device application
Distribution
range
Acti 9
product name
Acti 9 iC60
product or component type
Miniature circuit-breaker
device short name
IC60N
poles description
4P
number of protected poles
4
[In] rated current
6 A
network type
DC
AC
trip unit technology
Thermal-magnetic
curve code
C
breaking capacity
6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2
utilisation category
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
suitability for isolation
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
standards
EN 60898-1
IEC 60947-2
IEC 60898-1
EN 60947-2
Complementary (see above)
network frequency
50/60 Hz
magnetic tripping limit
8 x In +/- 20 %
[Ics] rated service breaking capacity
15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz
10 kA 100 % conforming to IEC 60947-2 - 180...250 V DC
10 kA 100 % conforming to EN 60947-2 - 180...250 V DC
limitation class
3 conforming to EN 60898-1
3 conforming to IEC 60898-1
[Ui] rated insulation voltage
500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
contact position indicator
Yes
control type
Toggle
local signalling
Trip indicator
mounting mode
Fixed
mounting support
DIN rail
comb busbar and distribution block compatibility
Top or bottom: YES
9 mm pitches
8
height
85 mm
width
72 mm
depth
78.5 mm
net weight
0.5 kg
colour
White
mechanical durability
20000 cycles
electrical durability
10000 cycles
connections - terminals
Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
wire stripping length
14 mm for top or bottom connection
tightening torque
2 N.m top or bottom
earth-leakage protection
Separate block
Environment (see above)
IP degree of protection
IP20 conforming to IEC 60529
IP20 conforming to EN 60529
pollution degree
3 conforming to EN 60947-2
3 conforming to IEC 60947-2
overvoltage category
IV
tropicalisation
2 conforming to IEC 60068-1
relative humidity
95 % at 55 °C
operating altitude
0...2000 m
ambient air temperature for operation
-35…70 °C
ambient air temperature for storage
-40…85 °C
Packing Units (see above)
Package 1 Weight
0.429 kg
Package 1 Height
0.750 dm
Package 1 width
0.720 dm
Package 1 Length
0.950 dm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Halogen content performance
Halogen free product
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider Acti 9 ACTI 9 IC60N 4P 6A 6KA KURVA C

# of Pole 4
Arus Nominal (In) 6A
