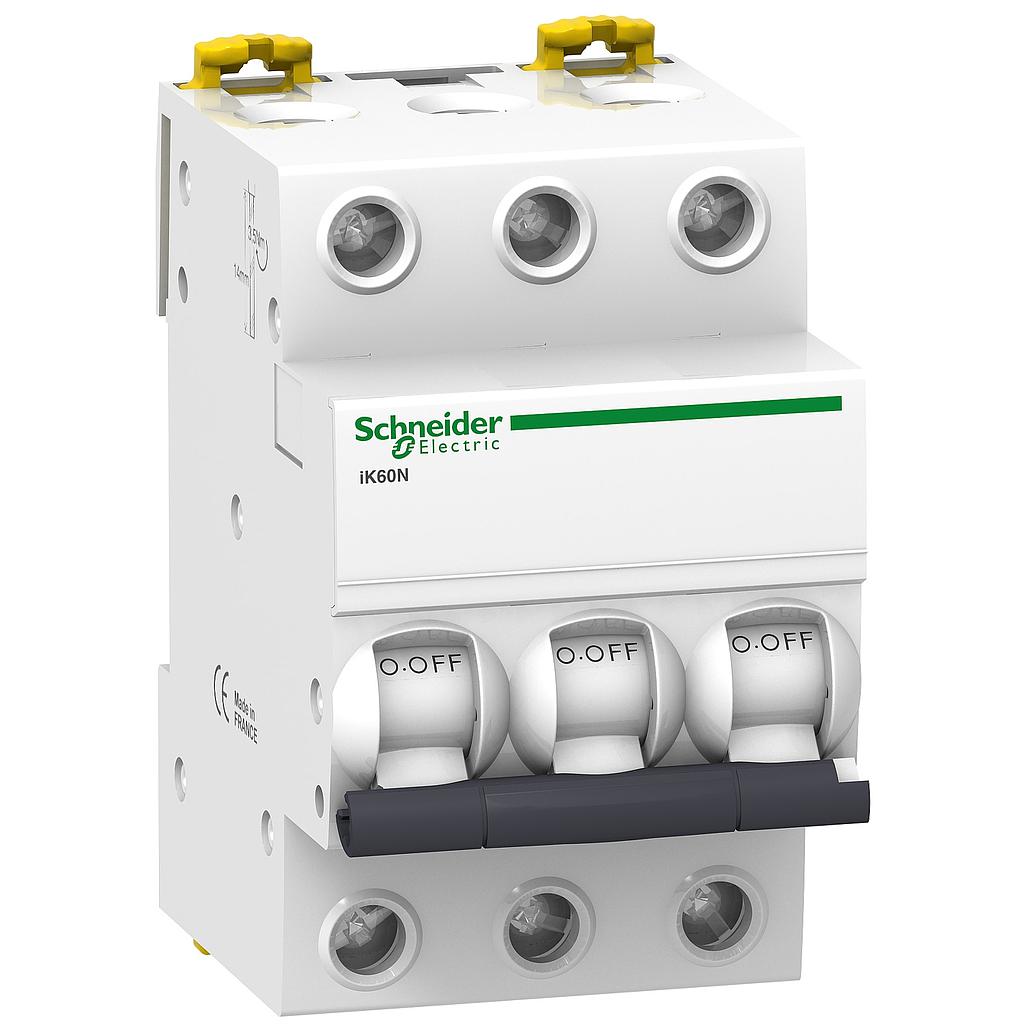

Schneider Acti 9 ACTI 9 IK60N 3P 25A 6KA KURVA C

# of Pole : 3

Arus Nominal (In) : 25A

Rp 642.135,00 Rp 327.488,00 327488 IDR

Rp 642.135,00

Option not available

  • # of Pole
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider Acti 9 ACTI 9 IK60N 3P 25A 6KA KURVA C
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 327.488,00
49.00 % Rp 642.135,00 327488 IDR

Rp 642.135,00

Option not available

Atur Jumlah & Catatan
Stock Total: 325

# of Pole : 3

Arus Nominal (In) : 25A

Keranjang Beli Sekarang
Spesifikasi

Schneider Electric MCB iK60N - Kurva C - 3P 25A - A9K24325 [Deskripsi] Direkomendasikan untuk spesifikasi kapasitas pemutusan 6 kA. - Kurva C (magnetis trip antara 5 dan 10 In dengan lebar modul per kutub 18mm. - Ketahanan elektrikal (Electrical Trip) 10.000 kali, dan ketahanan mekanikal (Mechanical Trip) 20.000 kali. - Koneksi kabel ke terminal : 2 sampai 25 A -> maksimum 16 mm2 kabel serabut atau 25 mm2 kabel tunggal. 32 sampai 63 A -> maksimum 25 mm2 kabel serabut atau 35 mm2 kabel tunggal. [Spesifikasi] 1. [In] rated current : 25 A at 30 C 2. network type : AC 3. trip unit technology : Thermal-magnetic 4. curve code : C 5. breaking capacity : 6000 A Icn conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz 6. suitability for isolation : Yes conforming to EN/IEC 60898-1 7. standards : EN/IEC 60898-1 8. product certifications : SNI 9. network frequency : 50/60 Hz 10. magnetic tripping limit : 5...10 x In 11. [Ics] rated service breaking capacity : 6000 A 100 % x Icu conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz 12. limitation class : 3 conforming to EN/IEC 60898-1 13. [Ui] rated insulation voltage : 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 14. [Uimp] rated impulse withstand voltage : 4 kV conforming to EN/IEC 60898-1 15. control type : Toggle 16. local signalling : ON/OFF indication 17. mounting mode : Clip-on 18. mounting support : DIN rail 19. 9 mm pitches : 2 20. height : 85 mm 21. width : 54 mm 22. depth : 78.5 mm 23. product weight : 300 g 24. colour : White 25. mechanical durability : 20000 cycles 26. electrical durability : 10000 cycles 27. locking options description : Padlocking device 28. connections - terminals : Tunnel type terminal, top or bottom rigid wire(s) 1...25 mm max 29. wire stripping length : 14 mm top or bottom 30. tightening torque : 2 N.m top or bottom 31. earth-leakage protection : Without 32. contact position indicator : No


Main (see above)
device application
Distribution
range
Acti 9
product name
Acti 9 iK60
product or component type
Miniature circuit-breaker
device short name
IK60N
poles description
3P
number of protected poles
3
[In] rated current
25 A at 30 °C
network type
AC
trip unit technology
Thermal-magnetic
curve code
C
breaking capacity
6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
suitability for isolation
Yes conforming to EN/IEC 60898-1
standards
EN/IEC 60898-1
product certifications
SNI
Complementary (see above)
network frequency
50/60 Hz
magnetic tripping limit
5...10 x In
[Ics] rated service breaking capacity
6000 A 100 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz
limitation class
3 conforming to EN/IEC 60898-1
[Ui] rated insulation voltage
440 V AC 50/60 Hz conforming to EN/IEC 60898-1
[Uimp] rated impulse withstand voltage
4 kV conforming to EN/IEC 60898-1
contact position indicator
No
control type
Toggle
local signalling
ON/OFF indication
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
6
height
85 mm
width
54 mm
depth
78.5 mm
net weight
300 g
colour
White
mechanical durability
20000 cycles
electrical durability
10000 cycles
locking options description
Padlocking device
connections - terminals
Tunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
wire stripping length
14 mm for top or bottom connection
tightening torque
2 N.m top or bottom
earth-leakage protection
Without
Environment (see above)
IP degree of protection
IP20 conforming to IEC 60529
pollution degree
2 conforming to EN/IEC 60898-1
overvoltage category
II
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
310 g
Package 1 Height
5.4 cm
Package 1 width
7.5 cm
Package 1 Length
9.5 cm
Unit Type of Package 2
BB1
Number of Units in Package 2
4
Package 2 Weight
1.272 kg
Package 2 Height
9 cm
Package 2 width
10 cm
Package 2 Length
22 cm
Unit Type of Package 3
S03
Number of Units in Package 3
44
Package 3 Weight
15.066 kg
Package 3 Height
30 cm
Package 3 width
30 cm
Package 3 Length
40 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider Acti 9 ACTI 9 IK60N 3P 25A 6KA KURVA C
