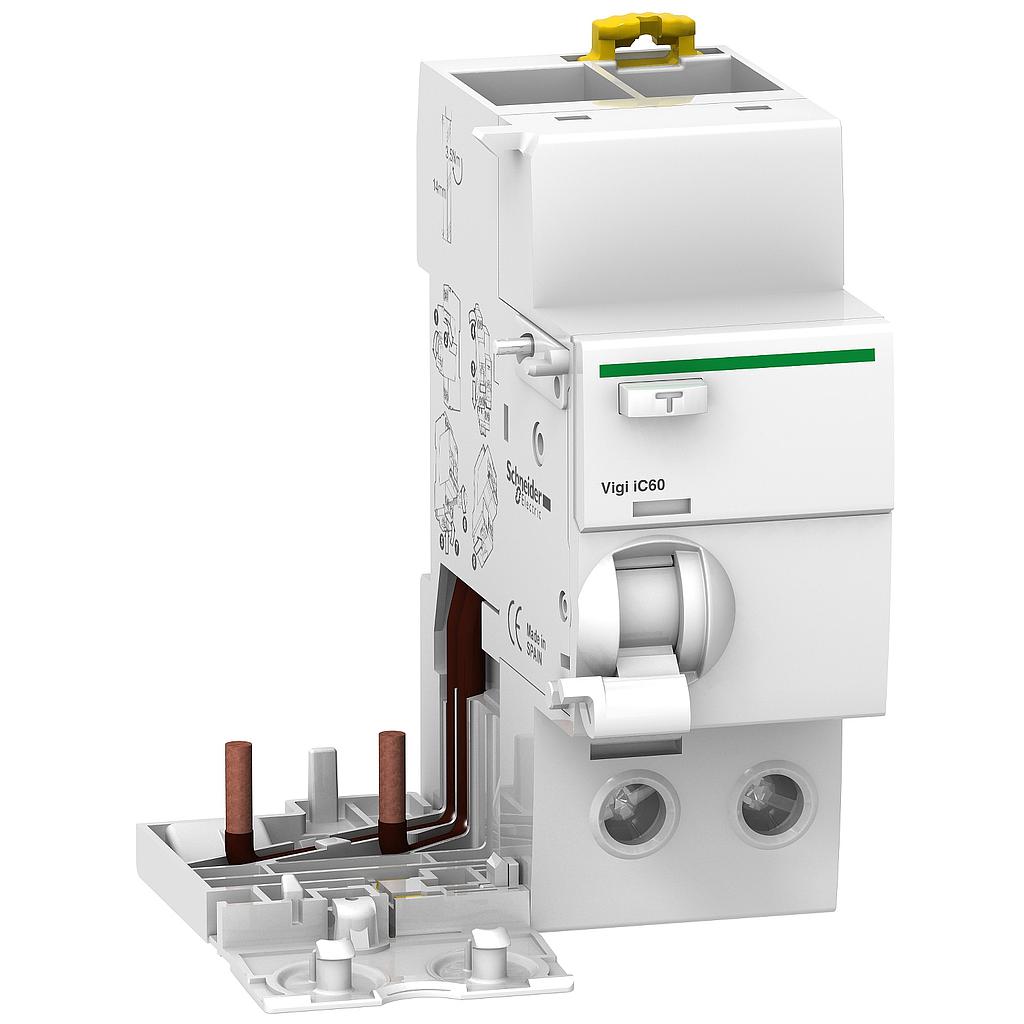

Schneider Acti 9 Schneider Electric Acti 9 Modul Vigi Tipe MCB iC60 -2P 63A 300mA - A9V44263
Rp 931,317.00
55.00 %
Rp 2,069,595.00
Rp 2,069,595.00
Option not available
[Deskripsi] Sangat direkomendasikan apabila : - arus hubung singkat tinggi terjadi pada instalasi. - fungsi pengaman grup sirkuit dilakukan oleh MCB. - Tambahan pengaman arus bocor untuk iC60 dan C120. - Kapasitas pemutusan tergantung dari MCB. - Mudah diinstalasi. - 30 mA untuk pengaman terhadap manusia (kontak langsung). - 300 mA untuk pengaman terhadap bahaya api dan kontak tidak langsung. [Spesifikasi] 1. Poles Description : 2P 2. [In] rated current : 63 A 3. earth-leakage sensitivity : 300 mA 4. earth-leakage protection time delay : Instantaneous 5. Earth leakage protection type : Type AC 6. network type : AC 7. network frequency : 50/60 Hz 8. [Ue] rated operational voltage : -230/400 V AC 50/60 Hz conforming to EN 61009-1 -230/415 V AC 50/60 Hz conforming to IEC 61009-1 9. standards : -EN 61009-1 -IEC 61009-1 10. 9 mm pitches : 4 11. device location in system : Outgoer 12. residual current tripping technology : Voltage independent 13. [Ui] rated insulation voltage : 500 V AC 50/60 Hz conforming to IEC 60947-2 14. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2 15. range compatibility : -Acti 9 iC60 -Acti 9 Reflex iC60 16. product compatibility : Single terminal 17. local signaling : Trip indicator 18. mounting mode : clipon 19. mounting support : DIN rail 20. electrical connection to mcb : By screws 21. comb busbar and distribution block compatibility : Bottom : YES 22. height : 91 mm 23. depth : 73.5 mm 24. product weight : 0.165 kg 25. connections terminals : -Tunnel type terminal downside 1 cable(s) 1...35 mm rigid without cable end -Tunnel type terminal downside 1 cable(s) 1...25 mm flexible without cable end -Tunnel type terminal downside 1 cable(s) 1...25 mm flexible with cable end 26. wire stripping length : 14 mm (bottom) 27. tightening torque : 3.5 N.m (bottom)
HOT PROMO
[Deskripsi] Sangat direkomendasikan apabila : - arus hubung singkat tinggi terjadi pada instalasi. - fungsi pengaman grup sirkuit dilakukan oleh MCB. - Tambahan pengaman arus bocor untuk iC60 dan C120. - Kapasitas pemutusan tergantung dari MCB. - Mudah diinstalasi. - 30 mA untuk pengaman terhadap manusia (kontak langsung). - 300 mA untuk pengaman terhadap bahaya api dan kontak tidak langsung. [Spesifikasi] 1. Poles Description : 2P 2. [In] rated current : 63 A 3. earth-leakage sensitivity : 300 mA 4. earth-leakage protection time delay : Instantaneous 5. Earth leakage protection type : Type AC 6. network type : AC 7. network frequency : 50/60 Hz 8. [Ue] rated operational voltage : -230/400 V AC 50/60 Hz conforming to EN 61009-1 -230/415 V AC 50/60 Hz conforming to IEC 61009-1 9. standards : -EN 61009-1 -IEC 61009-1 10. 9 mm pitches : 4 11. device location in system : Outgoer 12. residual current tripping technology : Voltage independent 13. [Ui] rated insulation voltage : 500 V AC 50/60 Hz conforming to IEC 60947-2 14. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-2 15. range compatibility : -Acti 9 iC60 -Acti 9 Reflex iC60 16. product compatibility : Single terminal 17. local signaling : Trip indicator 18. mounting mode : clipon 19. mounting support : DIN rail 20. electrical connection to mcb : By screws 21. comb busbar and distribution block compatibility : Bottom : YES 22. height : 91 mm 23. depth : 73.5 mm 24. product weight : 0.165 kg 25. connections terminals : -Tunnel type terminal downside 1 cable(s) 1...35 mm rigid without cable end -Tunnel type terminal downside 1 cable(s) 1...25 mm flexible without cable end -Tunnel type terminal downside 1 cable(s) 1...25 mm flexible with cable end 26. wire stripping length : 14 mm (bottom) 27. tightening torque : 3.5 N.m (bottom)
