  4. Schneider ABLP1A24045 (REPLACEMENT OF ABL1REM24025 ABL1REM24042)

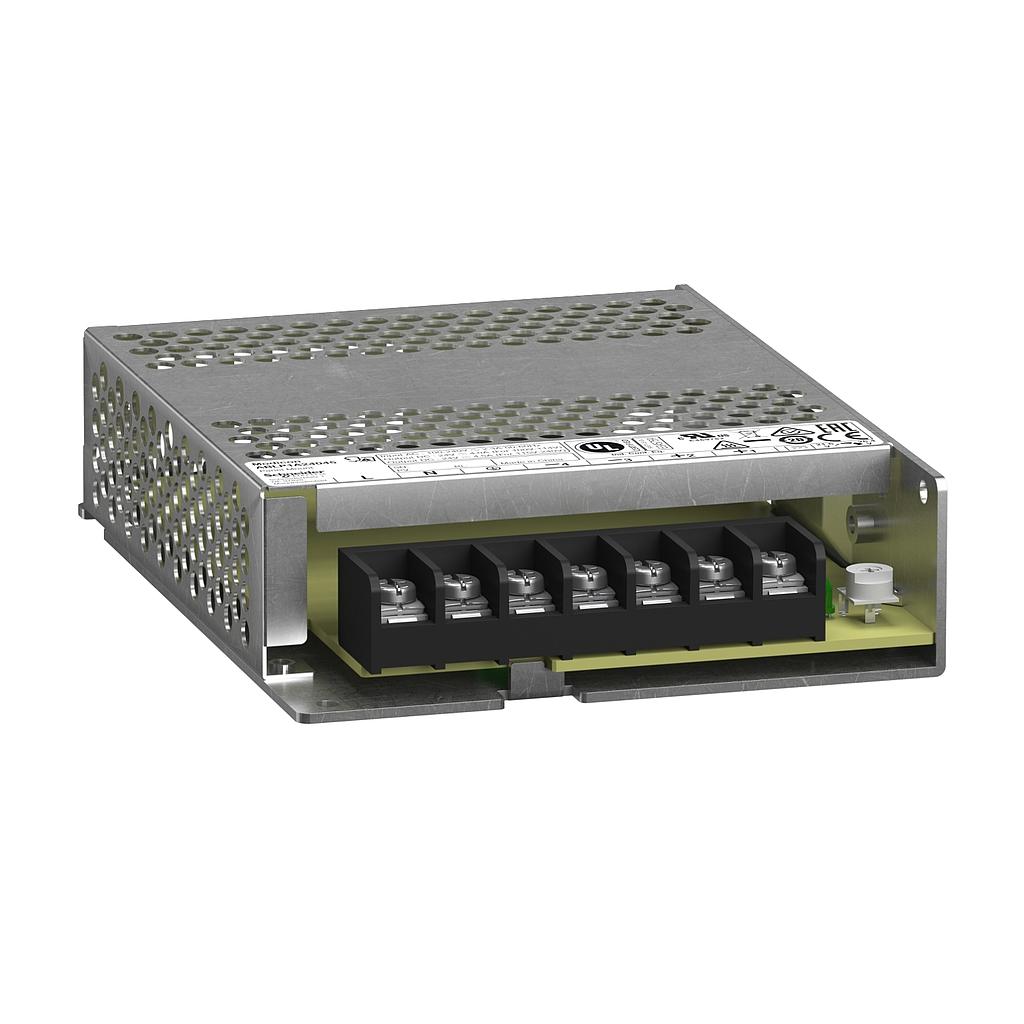

Schneider ABLP1A24045 (REPLACEMENT OF ABL1REM24025 ABL1REM24042)

Rp 1,379,162.00 Rp 799,913.00 799913 IDR

Rp 1,379,162.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider ABLP1A24045 (REPLACEMENT OF ABL1REM24025 ABL1REM24042)
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 799,913.00
    42.00 % Rp 1,379,162.00 799913 IDR

    Rp 1,379,162.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 5
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Modicon Power Supply
    product or component type
    Power supply
    power supply type
    Regulated switch mode
    variant option
    Panel mount
    enclosure material
    Aluminium
    Nominal input voltage
    100...240 V AC single phase
    input voltage limits
    90...264 V AC
    rated power in W
    100 W
    output voltage
    24 V DC
    power supply output current
    4.5 A
    Complementary (see above)
    Nominal network frequency
    50…60 Hz
    Network system compatibility
    TN
    TT
    IT
    maximum leakage current
    1 mA 240 V AC
    input protection type
    Integrated fuse (not interchangeable) 4 A
    inrush current
    45 A at 115 V
    85 A at 230 V
    power factor
    0.55 at 115 V AC
    0.45 at 230 V AC
    efficiency
    89 % at 230 V AC
    Output voltage adjustment
    21.6...26.4 V
    power dissipation in W
    20 W
    current consumption
    < 2.3 A 115 V AC
    < 1.5 A 230 V AC
    Turn-on time
    < 500 ms
    holding time
    > 20 ms 115 V AC
    > 40 ms 230 V AC
    Startup with capacitive loads
    4000 µF
    residual ripple
    < 150 mV
    Expected capacitor life time
    10 year(s)
    meantime between failure [MTBF]
    700000 h at 25 °C, full load conforming to SR 332
    output protection type
    Against overload and short-circuits, protection technology: automatic reset
    Against over temperature, protection technology: manual reset
    Against overvoltage, protection technology: manual reset
    connections - terminals
    Screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) without wire end ferrule
    Screw connection: 0.75...1.5 mm², (AWG 18...AWG 16) with wire end ferrule
    line and load regulation
    < 0.5 %line
    < 1 %load
    status LED
    1 LED (green)output voltage
    depth
    129 mm
    height
    30 mm
    width
    97 mm
    net weight
    0.3 kg
    output coupling
    Parallel
    Serial
    mounting support
    Top hat type TH35-15 rail conforming to IEC 60715
    Top hat type TH35-7.5 rail conforming to IEC 60715
    Double-profile DIN rail
    panel mounting
    supply
    SELV conforming to EN/IEC 60950-1
    SELV conforming to EN/IEC 60204-1
    SELV conforming to IEC 60364-4-41
    Environment (see above)
    standards
    EN 62368-1
    EN 61010-1
    EN 61010-2-201
    EN 61204-3
    EN 61000-6-1
    EN 61000-6-2
    EN 61000-6-3
    EN 61000-6-4
    EN 61000-3-2
    EN 61000-3-3
    UL 62368-1
    UL 61010-1
    UL 61010-2-201
    CSA C22.2 No 62368-1
    CSA C22.2 No 61010-1
    CSA C22.2 No 61010-2-201
    EN/IEC 62368-1
    product certifications
    CE
    CULus
    EAC
    RCM
    CB Scheme
    KC
    environmental characteristic
    3M4 conforming to IEC 60721-3-3
    operating altitude
    5000 m
    shock resistance
    100 m/s² for 11 ms
    IP degree of protection
    IP10
    ambient air temperature for operation
    -30…70 °C
    ambient air temperature for storage
    -40…85 °C
    relative humidity
    0…95 % without condensation
    overvoltage category
    II
    electrical energy source class conforming to IEC 62368-1
    ES1
    electrical shock protection class
    Class I
    pollution degree
    2
    vibration resistance
    3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6
    10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6
    Electromagnetic immunity
    Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
    Immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2
    Immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3
    Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3
    Immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3
    Immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4
    Surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5
    Surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5
    Immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
    Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8
    Immunity to voltage dips conforming to EN/IEC 61000-4-11
    Disturbing field emission conforming to EN 55016-2-3
    Limits for harmonic current emissions conforming to EN 61000-3-2
    Conducted disturbance emission conforming to EN 55016-1-2
    Conducted disturbance emission conforming to EN 55016-2-1
    electromagnetic emission
    Conducted emissions conforming to EN 61000-6-3
    Radiated emissions conforming to EN 61000-6-4
    dielectric strength
    3750 V AC input to output
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    420 g
    Package 1 Height
    4 cm
    Package 1 width
    14.8 cm
    Package 1 Length
    18.5 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
