Spesifikasi
| range of product | Modicon Power Supply |
|---|---|
| product or component type | Power supply |
| power supply type | Regulated switch mode |
| variant option | Panel mount |
| enclosure material | Aluminum |
| Nominal input voltage | 100...240 V AC single phase |
| input voltage limits | 85...264 V AC |
| rated power in W | 240 W |
| output voltage | 24 V DC |
| power supply output current | 10 A |
| Nominal network frequency | 50…60 Hz |
|---|---|
| Network system compatibility | TN TT IT |
| maximum leakage current | 1 mA 240 V AC |
| input protection type | Integrated fuse (not interchangeable) 6.3 A |
| inrush current | 35 A 115 V 60 A 230 V |
| power factor | 0.95 at 115 V AC 0.91 at 230 V AC |
| efficiency | 87 % 230 V AC |
| Output voltage adjustment | 21.6...26.4 V |
| power dissipation in W | 36 W |
| current consumption | < 3.6 A 115 V AC < 1.8 A 230 V AC |
| Turn-on time | < 1.2 s |
| holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Startup with capacitive loads | 8000 µF |
| residual ripple | < 150 mV |
| Expected capacitor life time | 10 year(s) |
| meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| output protection type | Against overload and short-circuits automatic reset Against over temperature manual reset Against overvoltage manual reset |
| connections - terminals | Screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule Screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule |
| line and load regulation | < 0.5 %line < 1 %load |
| status LED | Output voltage 1 LED Green) |
| depth | 7.48 in (190 mm) |
| height | 1.97 in (50 mm) |
| width | 3.66 in (93 mm) |
| Net Weight | 1.87 lb(US) (0.85 kg) |
| output coupling | Parallel Serial |
| mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| supply | SELV EN/IEC 60950-1 SELV EN/IEC 60204-1 SELV IEC 60364-4-41 |
| standards | EN 62368-1 EN/IEC 61010-1 EN 61010-2-201 EN/IEC 61204-3 EN 61000-6-1 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 EN 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 IEC 60335-1 EN/IEC 62368-1 |
|---|---|
| product certifications | CE CULus EAC RCM CB Scheme KC |
| environmental characteristic | 3M4 IEC 60721-3-3 |
| operating altitude | 5000 m |
| shock resistance | 100 m/s² 11 ms |
| IP degree of protection | IP10 |
| ambient air temperature for operation | 14…158 °F (-10…70 °C) |
| ambient air temperature for storage | -13…185 °F (-25…85 °C) |
| relative humidity | 0…95 % without condensation |
| overvoltage category | II |
| electrical energy source class conforming to IEC 62368-1 | ES1 |
| electrical shock protection class | Class I |
| pollution degree | 2 |
| vibration resistance | 3 mm 2…9 Hz)IEC 60068-2-6 10 m/s² 9…200 Hz)IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge 6 kV contact discharge) EN/IEC 61000-4-2 Immunity to electrostatic discharge 9 kV air discharge) EN/IEC 61000-4-2 Immunity to conducted RF disturbances 10 V/m 80 MHz...2 GHz) EN/IEC 61000-4-3 Immunity to conducted RF disturbances 5 V/m 2...2.7 GHz) EN/IEC 61000-4-3 Immunity to conducted RF disturbances 3 V/m 2.7...6 GHz) EN/IEC 61000-4-3 Immunity to fast transients 4 kV on input-output) EN/IEC 61000-4-4 Surge immunity test 3 kV between power supply and earth) EN/IEC 61000-4-5 Surge immunity test 1.5 kV between phases) EN/IEC 61000-4-5 Immunity to conducted RF disturbances 10 V 0.15...80 MHz) EN/IEC 61000-4-6 Immunity to magnetic fields 30 A/m 50...60 Hz) EN/IEC 61000-4-8 Immunity to voltage dips EN/IEC 61000-4-11 Disturbing field emission EN 55016-2-3 Limits for harmonic current emissions EN 61000-3-2 Conducted disturbance emission EN 55016-1-2 Conducted disturbance emission EN 55016-2-1 |
| electromagnetic emission | Conducted emissions EN 61000-6-3 Radiated emissions EN 61000-6-4 |
| dielectric strength | 3000 V AC input to output |
| GTIN | 03606481500304 |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 34.71 oz (984 g) |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Height | 2.44 in (6.2 cm) |
| Package 1 width | 5.63 in (14.3 cm) |
| Package 1 Length | 9.65 in (24.5 cm) |
| Sustainable offer status | Green Premium product |
|---|---|
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
HOT PROMO
| range of product | Modicon Power Supply |
|---|---|
| product or component type | Power supply |
| power supply type | Regulated switch mode |
| variant option | Panel mount |
| enclosure material | Aluminum |
| Nominal input voltage | 100...240 V AC single phase |
| input voltage limits | 85...264 V AC |
| rated power in W | 240 W |
| output voltage | 24 V DC |
| power supply output current | 10 A |
| Nominal network frequency | 50…60 Hz |
|---|---|
| Network system compatibility | TN TT IT |
| maximum leakage current | 1 mA 240 V AC |
| input protection type | Integrated fuse (not interchangeable) 6.3 A |
| inrush current | 35 A 115 V 60 A 230 V |
| power factor | 0.95 at 115 V AC 0.91 at 230 V AC |
| efficiency | 87 % 230 V AC |
| Output voltage adjustment | 21.6...26.4 V |
| power dissipation in W | 36 W |
| current consumption | < 3.6 A 115 V AC < 1.8 A 230 V AC |
| Turn-on time | < 1.2 s |
| holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Startup with capacitive loads | 8000 µF |
| residual ripple | < 150 mV |
| Expected capacitor life time | 10 year(s) |
| meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| output protection type | Against overload and short-circuits automatic reset Against over temperature manual reset Against overvoltage manual reset |
| connections - terminals | Screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule Screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule |
| line and load regulation | < 0.5 %line < 1 %load |
| status LED | Output voltage 1 LED Green) |
| depth | 7.48 in (190 mm) |
| height | 1.97 in (50 mm) |
| width | 3.66 in (93 mm) |
| Net Weight | 1.87 lb(US) (0.85 kg) |
| output coupling | Parallel Serial |
| mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| supply | SELV EN/IEC 60950-1 SELV EN/IEC 60204-1 SELV IEC 60364-4-41 |
| standards | EN 62368-1 EN/IEC 61010-1 EN 61010-2-201 EN/IEC 61204-3 EN 61000-6-1 EN 61000-6-2 EN 61000-6-3 EN 61000-6-4 EN 61000-3-2 EN 61000-3-3 UL 62368-1 UL 61010-1 UL 61010-2-201 CSA C22.2 No 62368-1 CSA C22.2 No 61010-1 CSA C22.2 No 61010-2-201 IEC 60335-1 EN/IEC 62368-1 |
|---|---|
| product certifications | CE CULus EAC RCM CB Scheme KC |
| environmental characteristic | 3M4 IEC 60721-3-3 |
| operating altitude | 5000 m |
| shock resistance | 100 m/s² 11 ms |
| IP degree of protection | IP10 |
| ambient air temperature for operation | 14…158 °F (-10…70 °C) |
| ambient air temperature for storage | -13…185 °F (-25…85 °C) |
| relative humidity | 0…95 % without condensation |
| overvoltage category | II |
| electrical energy source class conforming to IEC 62368-1 | ES1 |
| electrical shock protection class | Class I |
| pollution degree | 2 |
| vibration resistance | 3 mm 2…9 Hz)IEC 60068-2-6 10 m/s² 9…200 Hz)IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge 6 kV contact discharge) EN/IEC 61000-4-2 Immunity to electrostatic discharge 9 kV air discharge) EN/IEC 61000-4-2 Immunity to conducted RF disturbances 10 V/m 80 MHz...2 GHz) EN/IEC 61000-4-3 Immunity to conducted RF disturbances 5 V/m 2...2.7 GHz) EN/IEC 61000-4-3 Immunity to conducted RF disturbances 3 V/m 2.7...6 GHz) EN/IEC 61000-4-3 Immunity to fast transients 4 kV on input-output) EN/IEC 61000-4-4 Surge immunity test 3 kV between power supply and earth) EN/IEC 61000-4-5 Surge immunity test 1.5 kV between phases) EN/IEC 61000-4-5 Immunity to conducted RF disturbances 10 V 0.15...80 MHz) EN/IEC 61000-4-6 Immunity to magnetic fields 30 A/m 50...60 Hz) EN/IEC 61000-4-8 Immunity to voltage dips EN/IEC 61000-4-11 Disturbing field emission EN 55016-2-3 Limits for harmonic current emissions EN 61000-3-2 Conducted disturbance emission EN 55016-1-2 Conducted disturbance emission EN 55016-2-1 |
| electromagnetic emission | Conducted emissions EN 61000-6-3 Radiated emissions EN 61000-6-4 |
| dielectric strength | 3000 V AC input to output |
| GTIN | 03606481500304 |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package weight(Lbs) | 34.71 oz (984 g) |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Height | 2.44 in (6.2 cm) |
| Package 1 width | 5.63 in (14.3 cm) |
| Package 1 Length | 9.65 in (24.5 cm) |
| Sustainable offer status | Green Premium product |
|---|---|
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Recently Viewed Products

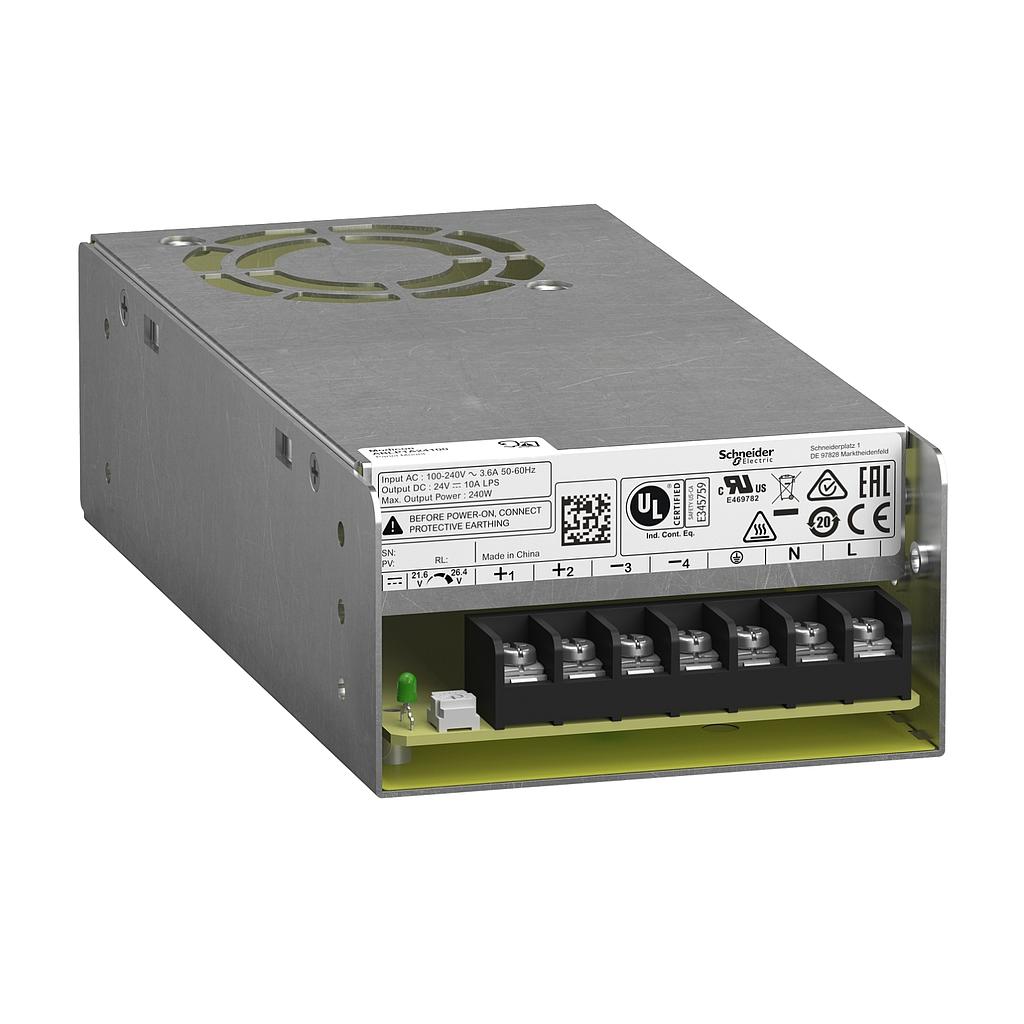

Schneider POWER SUPPLY 24V 10A PANEL MOUNT pengganti ABL1REM24100 DAN ABL1RPM24100
