Spesifikasi

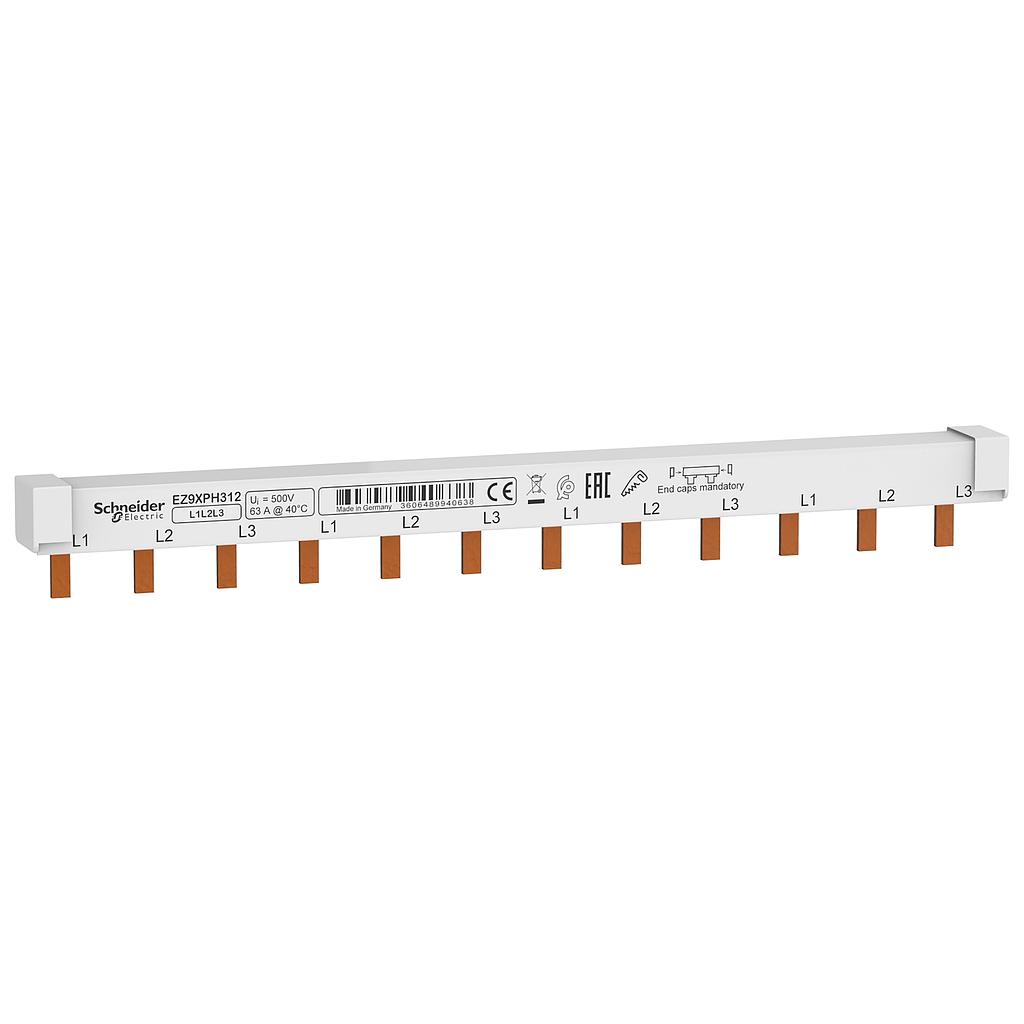

| Series | Easy9 | |
|---|---|---|
| type of product | Comb tire | |
| Category - accessory / single part | Connection accessories | |
| Line description | Three phases | |
| Length in 18 mm modules | 12 |
| Number of channels | 4 ways 3 L | |
|---|---|---|
| Pole configuration for first option | 1 x 3P | |
| Pole step | 18 mm | |
| Connector type | Tooth | |
| Distance between guides | 54 mm | |
| insulation | Isolated | |
| Product complete set | Cutable | |
| Equipment included | 2 end piece | |
| Rated operational current | 63 A at 40 ° C | |
| Rated working voltage | 230 V AC 50 Hz Ph / N 400 V AC 50 Hz Ph / Ph | |
| Rated insulation voltage | 500 V AC conforming to IEC 61439-1 | |
| Mounting type | Horizon. | |
| Place of installation | Top in Tunnel type terminals | |
| 9 mm pitch | 24 | |
| Width | 220 mm | |
| Colour | Light gray (RAL 7035) | |
| Product series compatibility | Easy9 XP |
| Standards | IEC 60439-1 IEC 60664 | |
|---|---|---|
| Fire resistance | 850 ° C (30 s) conforming to IEC 60695-2-1 | |
| Pollution degree | 2 |
| Packing type 1 | PCE | |
|---|---|---|
| Number of units in a package | one | |
| Weight of packing | 80 g | |
| Package height 1 | 1.7 cm | |
| Packing width 1 | 2.5 cm | |
| Packing length 1 | 21.6 cm |
| REACh Regulation | ||
|---|---|---|
| Does not contain highly hazardous substances according to the REACh declaration | Yes | |
| EC RoHS Directive | Compliant EU RoHS declaration | |
| Contains no toxic heavy metals | Yes | |
| Does not contain mercury | Yes | |
| RoHS Exceptions Information | ||
| China RoHS regulation | China RoHS Declaration Default Declaration (Product outside the scope of China RoHS) |
| Warranty | 12 months |
|---|
