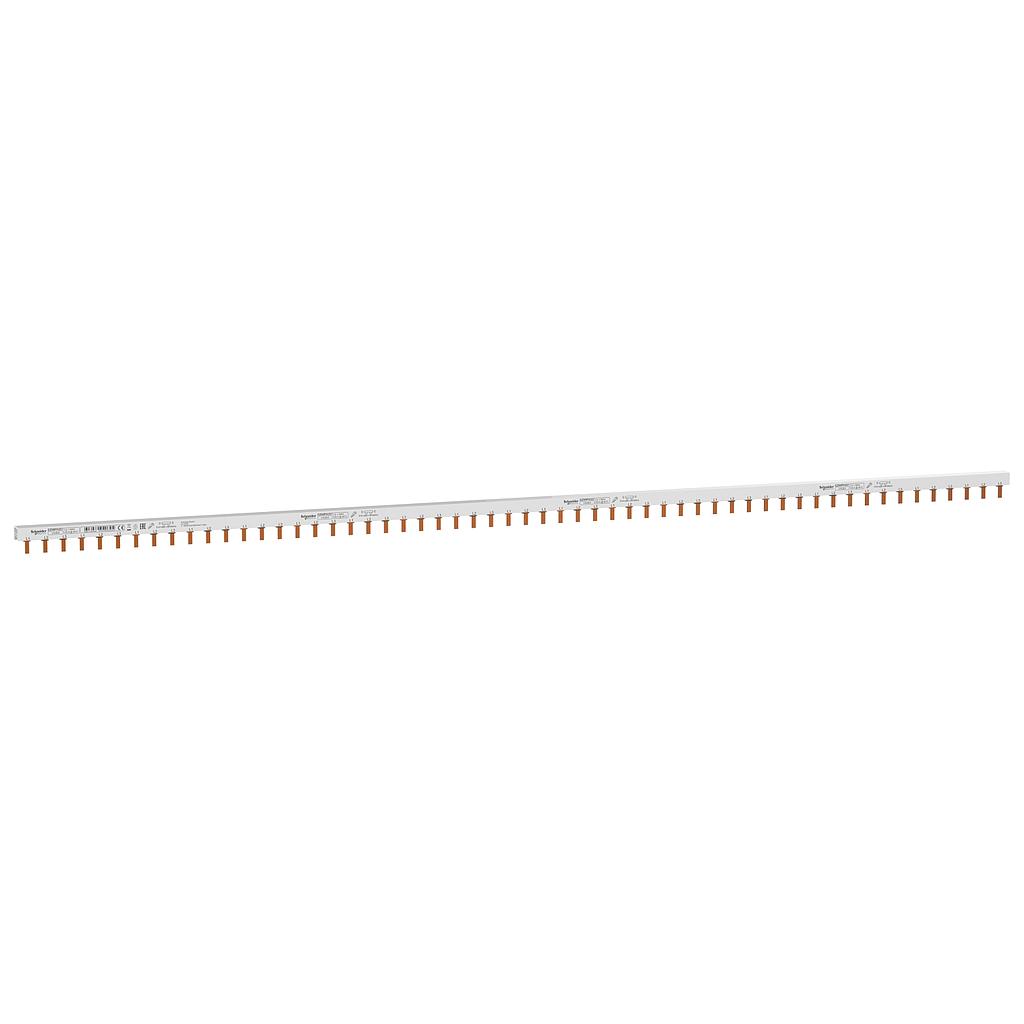

  4. Schneider COMB BUSBAR 3P 63A 1 METER

Schneider COMB BUSBAR 3P 63A 1 METER

Rp 775,890.00 Rp 558,640.00 558640 IDR

Rp 775,890.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider COMB BUSBAR 3P 63A 1 METER
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 558,640.00
    28.00 % Rp 775,890.00 558640 IDR

    Rp 775,890.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 13
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    Range
    Easy9
    Type of product or equipment
    Connection comb
    Accessory / spare part category
    Connection accessory
    line description
    3L
    Length in 18 mm modules
    57
    Complementary (see above)
    number of lanes
    19 ways 3P
    pole configuration for 1 channel
    1 3P
    no connection
    18 mm
    connector type
    Tooth
    distance between devices
    54 mm
    Isolation
    Isolated
    Product presentation
    Cuttable
    Equipment provided
    2 end cap
    [Ie] rated operational current
    63 A at 40 ° C
    [Ue] rated operational voltage
    230 V AC 50 Hz Ph / N
    400 V AC 50 Hz Ph / Ph
    [Ui] insulation voltage
    500 V AC conforming to IEC 61439-1
    Installation mode
    Horizontal
    mounting location
    Top on tunnel type terminal
    9mm pitch
    114
    Width
    1000 mm
    Color
    Light gray (RAL 7035)
    Range compatibility
    Easy9 Easy9 XP
    Environment (see above)
    Standards
    IEC 60439-1
    IEC 60664
    Fire resistance
    850 ° C (30 s) conforming to IEC 60695-2-1
    Pollution degree
    2
    Packing Units (see above)
    Type of packaging 1
    PCE
    Number of units per package
    1
    Package weight (Kg)
    428 g
    Package height 1
    1.5 cm
    Package width 1
    2.5 cm
    Package length 1
    101.5 cm
    Offer Sustainability (see above)
    REACh regulation
    Without SVHC REACh
    Yes
    EU RoHS Directive
    Free from toxic heavy metals
    Yes
    Mercury free
    Yes
    Information on RoHS exemptions
    China RoHS regulation
    RoHS Declaration for China
    RoHS proactive declaration for China (outside the RoHS legal scope for China)
    Contractual warranty (see above)
    Warranty
    12 months
