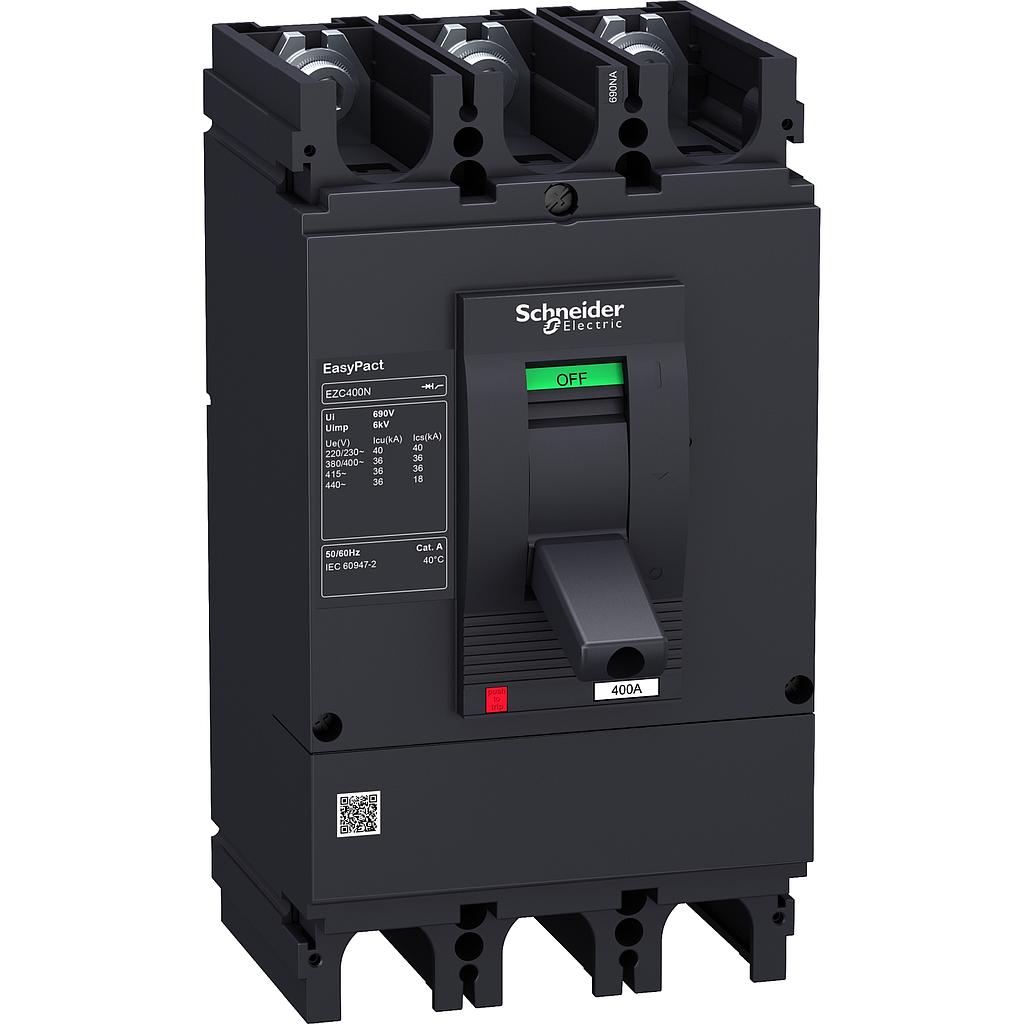

  4. Schneider EZC400N 3P 300A TM300D 3D CIRCUIT BREAKER - NEW TYPE

Schneider EZC400N 3P 300A TM300D 3D CIRCUIT BREAKER - NEW TYPE

Rp 5,730,219.00 Rp 2,979,713.00 2979713 IDR

Rp 5,730,219.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider EZC400N 3P 300A TM300D 3D CIRCUIT BREAKER - NEW TYPE
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 2,979,713.00
    48.00 % Rp 5,730,219.00 2979713 IDR

    Rp 5,730,219.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 31
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    EasyPact
    product or component type
    Circuit breaker
    device short name
    Easypact EZC400N
    circuit breaker name
    Easypact EZC400N
    device application
    Distribution
    poles description
    3P
    protected poles description
    3t
    network type
    AC
    DC
    network frequency
    50/60 Hz
    [In] rated current
    400 A at 40 °C
    [Ui] rated insulation voltage
    690 V AC 50/60 Hz conforming to IEC 60947-2
    [Uimp] rated impulse withstand voltage
    6 kV conforming to IEC 60947-2
    [Ue] rated operational voltage
    250 V DC conforming to IEC 60947-2
    440 V AC 50/60 Hz conforming to IEC 60947-2
    breaking capacity code
    N
    breaking capacity
    36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
    40 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2
    36 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
    36 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
    [Ics] rated service breaking capacity
    18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
    20 kA at 220/230 V AC 50/60 Hz conforming to IEC 60947-2
    18 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
    18 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
    suitability for isolation
    Yes conforming to IEC 60947-2
    utilisation category
    Category A
    trip unit name
    TM-D
    trip unit technology
    Thermal-magnetic
    trip unit rating
    300 A at 50 °C
    protection type
    Overload protection
    Short-circuit protection
    pollution degree
    3 conforming to IEC 60947
    Complementary (see above)
    control type
    Toggle
    mounting mode
    Fixed
    mounting support
    Backplate
    upside connection
    Front
    downside connection
    Front
    mechanical durability
    10000 cycles
    electrical durability
    Category A: 1000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
    connection pitch
    44 mm
    local signalling
    Positive contact indication
    contact position indicator
    Yes
    magnetic tripping current
    4000 A
    neutral protection setting
    Without protection
    long time pick-up adjustment type Ir
    Fixed
    long time delay adjustment type
    Fixed
    earth-leakage protection
    Without
    height
    255 mm
    width
    185 mm
    depth
    140 mm
    net weight
    4.8 kg
    quantity per set
    1 piece
    colour
    Black
    Environment (see above)
    standards
    JIS C8201-2-2
    EN/IEC 60947-2
    GB/T 14048.2
    EN/IEC 60947-1
    IP degree of protection
    IP20 conforming to IEC 60529
    IK degree of protection
    IK07 conforming to EN 50102
    ambient air temperature for operation
    -25…70 °C
    ambient air temperature for storage
    -35…85 °C
