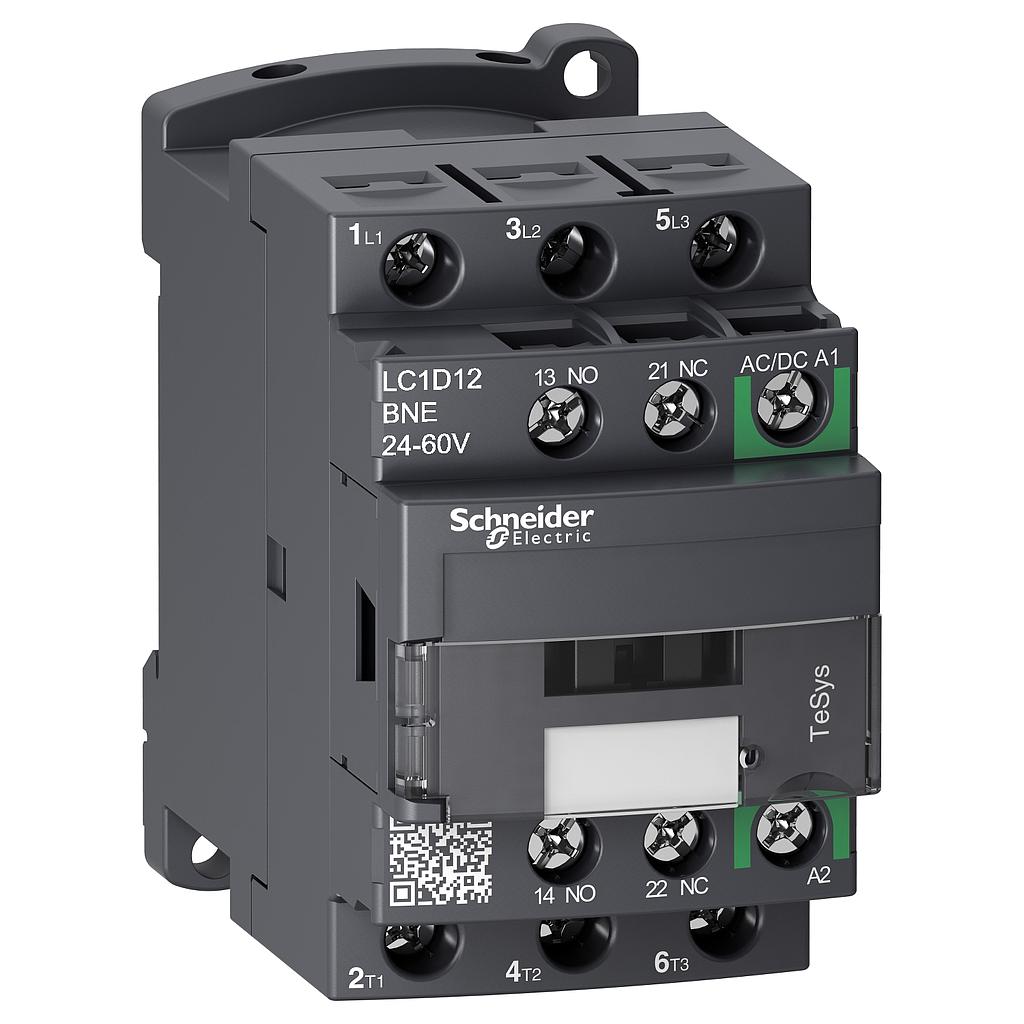

  4. Schneider TeSys D contactor 3P 12A AC-3 up to 440V coil 24-60V AC/DC

Schneider TeSys D contactor 3P 12A AC-3 up to 440V coil 24-60V AC/DC

# of Pole : 3

Arus Pengenal (A) : 12A

Coil AC/DC : 24-60V (BNE)

Rp 1,282,782.00 Rp 718,357.00 718357 IDR

Rp 1,282,782.00

Option not available

  • # of Pole
  • Arus Pengenal (A)
  • Coil AC/DC

This combination does not exist.

Add to Cart

Schneider TeSys D contactor 3P 12A AC-3 up to 440V coil 24-60V AC/DC
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 718,357.00
44.00 % Rp 1,282,782.00 718357 IDR

Rp 1,282,782.00

Option not available

Atur Jumlah & Catatan
Stock Total: 37

# of Pole : 3

Arus Pengenal (A) : 12A

Coil AC/DC : 24-60V (BNE)

Keranjang Beli Sekarang
Spesifikasi

[Deskripsi] Kontaktor Tesys D adalah produk kontaktor dengan penjualan terbesar di dunia, TeSys D menawarkan solusi multi-standar, bersama dengan aksesori paling lengkap di industri. Kontaktor TeSys D menawarkan pengaturan yang cepat dan sederhana dengan tetap mempertahankan ukuran yaitu 45 mm (9 hingga 38A) dan 55 mm (40 hingga 65 A) yang telah memenuhi standar internasional. Dari versi 40 hingga 65 A dilengkapi dengan EverLink™. [Spesifikasi] 1. product name : TeSys D Green 2. product or component type : Contactor 3. device short name : LC1D 4. contactor application : -Motor control -Resistive load 5. utilisation category : -AC-1 -AC-3 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : Power circuit: <= 690 V AC 25...400 Hz 9. [Ie] rated operational current : -25 A (at <60 °C) at <= 440 V AC-1 for power circuit -12 A (at <60 °C) at <= 440 V AC-3 for power circuit 10. motor power kW : -3 kW at 220...230 V AC 50 Hz (AC-3) -5.5 kW at 380...400 V AC 50 Hz (AC-3) -5.5 kW at 415 V AC 50 Hz (AC-3) -5.5 kW at 440 V AC 50 Hz (AC-3) -7.5 kW at 500 V AC 50 Hz (AC-3) -7.5 kW at 660...690 V AC 50 Hz (AC-3) 11. motor power HP (UL / CSA) : -0.5 hp at 115 V AC 60 Hz for 1 phase motors -2 hp at 230/240 V AC 60 Hz for 1 phase motors -3 hp at 200/208 V AC 60 Hz for 3 phases motors -3 hp at 230/240 V AC 60 Hz for 3 phases motors -7.5 hp at 460/480 V AC 60 Hz for 3 phases motors -10 hp at 575/600 V AC 60 Hz for 3 phases motors 12. [Uc] control circuit voltage : -24...60 V AC 50/60 Hz -24...60 V DC 13. coil type : AC/DC electronic 14. auxiliary contact composition : 1 NO + 1 NC 15. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947 16. overvoltage category : III 17. rated breaking capacity : 250 A at 440 V for power circuit conforming to IEC 60947 18. height : 77 mm 19. width : 45 mm 20. depth : 86 mm 21. product weight : 0.368 kg 22. colour : -Grey (SE GREY 6) -Green (SE GREEN 2)


Main (see above)
range
TeSys
product name
TeSys D Green
product or component type
Contactor
device short name
LC1D
contactor application
Resistive load
Motor control
utilisation category
AC-3
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current
25 A (at <60 °C) at <= 440 V AC-1 for power circuit
12 A (at <60 °C) at <= 440 V AC-3 for power circuit
motor power kW
3 kW at 220...230 V AC 50 Hz (AC-3)
5.5 kW at 380...400 V AC 50 Hz (AC-3)
5.5 kW at 415 V AC 50 Hz (AC-3)
5.5 kW at 440 V AC 50 Hz (AC-3)
7.5 kW at 500 V AC 50 Hz (AC-3)
7.5 kW at 660...690 V AC 50 Hz (AC-3)
motor power HP (UL / CSA)
0.5 hp at 115 V AC 60 Hz for 1 phase motors
2 hp at 230/240 V AC 60 Hz for 1 phase motors
3 hp at 200/208 V AC 60 Hz for 3 phases motors
3 hp at 230/240 V AC 60 Hz for 3 phases motors
7.5 hp at 460/480 V AC 60 Hz for 3 phases motors
10 hp at 575/600 V AC 60 Hz for 3 phases motors
[Uc] control circuit voltage
24...60 V AC 50/60 Hz
24...60 V DC
coil type
AC/DC electronic
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A (at 60 °C) for signalling circuit
25 A (at 60 °C) for power circuit
Irms rated making capacity
250 A at 440 V for power circuit conforming to IEC 60947
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
rated breaking capacity
250 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
30 A 40 °C - 10 min for power circuit
61 A 40 °C - 1 min for power circuit
105 A 40 °C - 10 s for power circuit
210 A 40 °C - 1 s for power circuit
associated fuse rating
10 A gG for signalling circuit conforming to IEC 60947-5-1
40 A gG at <= 690 V coordination type 1 for power circuit
25 A gG at <= 690 V coordination type 2 for power circuit
average impedance
2.5 mOhm - Ith 25 A 50 Hz for power circuit
[Ui] rated insulation voltage
Power circuit: 690 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-1
electrical durability
2.3 Mcycles 11 A AC-3 at Ue <= 440 V
0.8 Mcycles 25 A AC-1 at Ue <= 440 V
power dissipation per pole
1.56 W AC-1
0.36 W AC-3
Front cover
With
mounting support
Rail
Plate
standards
EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
product certifications
CCC
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
connections - terminals
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid
tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
operating time
45...55 ms closing
20...90 ms opening
safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
mechanical durability
15 Mcycles
maximum operating rate
3600 cyc/h 60 °C
Complementary (see above)
coil technology
Built-in bidirectional peak limiting
control circuit voltage limits
<= 0.1 Uc (-40…70 °C):drop-out AC/DC
0.85...1.1 Uc (-40…60 °C):operational AC
0.8...1.1 Uc (-40…60 °C):operational DC
1...1.1 Uc (60…70 °C):operational AC/DC
inrush power in VA
15 VA 50/60 Hz (at 20 °C)
inrush power in W
14 W at 20 °C
hold-in power consumption in VA
0.9 VA (at 20 °C) 50/60 Hz
hold-in power consumption in W
0.6 W at 20 °C
heat dissipation
0.6 W at 50/60 Hz
auxiliary contacts type
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1
signalling circuit frequency
25...400 Hz
minimum switching current
5 mA for signalling circuit
minimum switching voltage
17 V for signalling circuit
non-overlap time
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
insulation resistance
> 10 MOhm for signalling circuit
Environment (see above)
IP degree of protection
IP20 front face conforming to IEC 60529
protective treatment
TH conforming to IEC 60068-2-30
pollution degree
3
ambient air temperature for operation
-40…60 °C
60…70 °C with derating
ambient air temperature for storage
-60…80 °C
operating altitude
0...3000 m
fire resistance
850 °C conforming to IEC 60695-2-1
flame retardance
V1 conforming to UL 94
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms
height
77 mm
width
45 mm
depth
86 mm
net weight
0.373 kg
colour
Grey (SE GREY 6)
Green (SE GREEN 2)
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
400 g
Package 1 Height
5.5 cm
Package 1 width
9.5 cm
Package 1 Length
12 cm
Unit Type of Package 2
S02
Number of Units in Package 2
15
Package 2 Weight
6.308 kg
Package 2 Height
15 cm
Package 2 width
30 cm
Package 2 Length
40 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Halogen content performance
Halogen free plastic parts & cables product
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider TeSys D contactor 3P 12A AC-3 up to 440V coil 24-60V AC/DC
