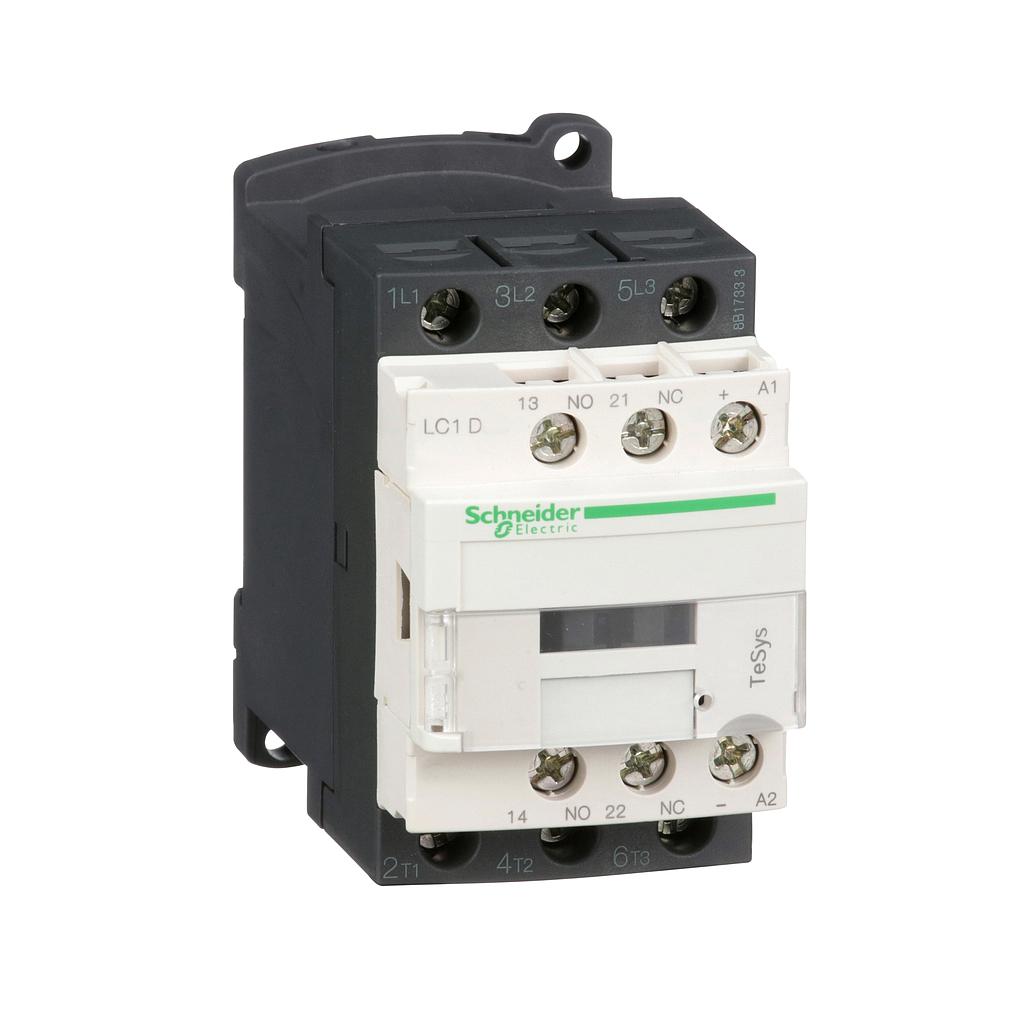

Schneider TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 220 V DC coil
# of Pole : 3
Arus Pengenal (A) : 18A
Coil DC : 220V (MD)
Schneider TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 220 V DC coil
Terjual 0
0 (0 Rating)
Ulasan (0)
Rp 936.129,00
44.00 %
Rp 1.671.660,00
Rp 1.671.660,00
Option not available
Spesifikasi
| range | TeSys | |
|---|---|---|
| product name | TeSys D | |
| product or component type | Contactor | |
| device short name | LC1D | |
| contactor application | Resistive load Motor control | |
| utilisation category | AC-3 AC-4 AC-1 | |
| poles description | 3P | |
| power pole contact composition | 3 NO | |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC | |
| [Ie] rated operational current | 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | |
| motor power kW | 4 kW at 220...230 V AC 50/60 Hz (AC-3) 7.5 kW at 380...400 V AC 50/60 Hz (AC-3) 9 kW at 415...440 V AC 50/60 Hz (AC-3) 10 kW at 500 V AC 50/60 Hz (AC-3) 10 kW at 660...690 V AC 50/60 Hz (AC-3) 4 kW at 400 V AC 50/60 Hz (AC-4) | |
| motor power HP (UL / CSA) | 1 hp at 115 V AC 50/60 Hz for 1 phase motors 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors 5 hp at 230/240 V AC 50/60 Hz for 3 phases motors 10 hp at 460/480 V AC 50/60 Hz for 3 phases motors 15 hp at 575/600 V AC 50/60 Hz for 3 phases motors | |
| control circuit type | DC standard | |
| [Uc] control circuit voltage | 220 V DC | |
| auxiliary contact composition | 1 NO + 1 NC | |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 | |
| overvoltage category | III | |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit 32 A (at 60 °C) for power circuit | |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 300 A at 440 V for power circuit conforming to IEC 60947 | |
| rated breaking capacity | 300 A at 440 V for power circuit conforming to IEC 60947 | |
| [Icw] rated short-time withstand current | 145 A 40 °C - 10 s for power circuit 240 A 40 °C - 1 s for power circuit 40 A 40 °C - 10 min for power circuit 84 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit | |
| associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 50 A gG at <= 690 V coordination type 1 for power circuit 35 A gG at <= 690 V coordination type 2 for power circuit | |
| average impedance | 2.5 mOhm - Ith 32 A 50 Hz for power circuit | |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1 Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified | |
| electrical durability | 1.65 Mcycles 18 A AC-3 at Ue <= 440 V 1 Mcycles 32 A AC-1 at Ue <= 440 V | |
| power dissipation per pole | 2.5 W AC-1 0.8 W AC-3 | |
| Front cover | With | |
| mounting support | Rail Plate | |
| standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 | |
| product certifications | GOST UL CSA BV GL DNV CCC RINA LROS (Lloyds register of shipping) | |
| connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…6 mm²flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…6 mm²solid without cable end Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²solid without cable end | |
| tightening torque | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | |
| operating time | 53.55...72.45 ms closing 16...24 ms opening | |
| safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 | |
| mechanical durability | 30 Mcycles | |
| maximum operating rate | 3600 cyc/h 60 °C |
| coil technology | With integral suppression device | |
|---|---|---|
| control circuit voltage limits | 0.1...0.25 Uc (-40…70 °C):drop-out DC 0.7...1.25 Uc (-40…60 °C):operational DC 1...1.25 Uc (60…70 °C):operational DC | |
| time constant | 28 ms | |
| inrush power in W | 5.4 W (at 20 °C) | |
| hold-in power consumption in W | 5.4 W at 20 °C | |
| auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 | |
| signalling circuit frequency | 25...400 Hz | |
| minimum switching current | 5 mA for signalling circuit | |
| minimum switching voltage | 17 V for signalling circuit | |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact | |
| insulation resistance | > 10 MOhm for signalling circuit |
| IP degree of protection | IP20 front face conforming to IEC 60529 | |
|---|---|---|
| protective treatment | TH conforming to IEC 60068-2-30 | |
| pollution degree | 3 | |
| ambient air temperature for operation | -40…60 °C 60…70 °C with derating | |
| ambient air temperature for storage | -60…80 °C | |
| operating altitude | 0...3000 m | |
| fire resistance | 850 °C conforming to IEC 60695-2-1 | |
| flame retardance | V1 conforming to UL 94 | |
| mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz Vibrations contactor closed: 4 Gn, 5...300 Hz Shocks contactor open: 10 Gn for 11 ms Shocks contactor closed: 15 Gn for 11 ms | |
| height | 77 mm | |
| width | 45 mm | |
| depth | 95 mm | |
| net weight | 0.49 kg |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 500 g | |
| Package 1 Height | 5.1 cm | |
| Package 1 width | 9.2 cm | |
| Package 1 Length | 11.2 cm | |
| Unit Type of Package 2 | S02 | |
| Number of Units in Package 2 | 15 | |
| Package 2 Weight | 7.806 kg | |
| Package 2 Height | 15 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm | |
| Unit Type of Package 3 | P06 | |
| Number of Units in Package 3 | 120 | |
| Package 3 Weight | 74.78 kg | |
| Package 3 Height | 45 cm | |
| Package 3 width | 80 cm | |
| Package 3 Length | 60 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | |
| PVC free | Yes |
| Warranty | 12 months |
|---|
