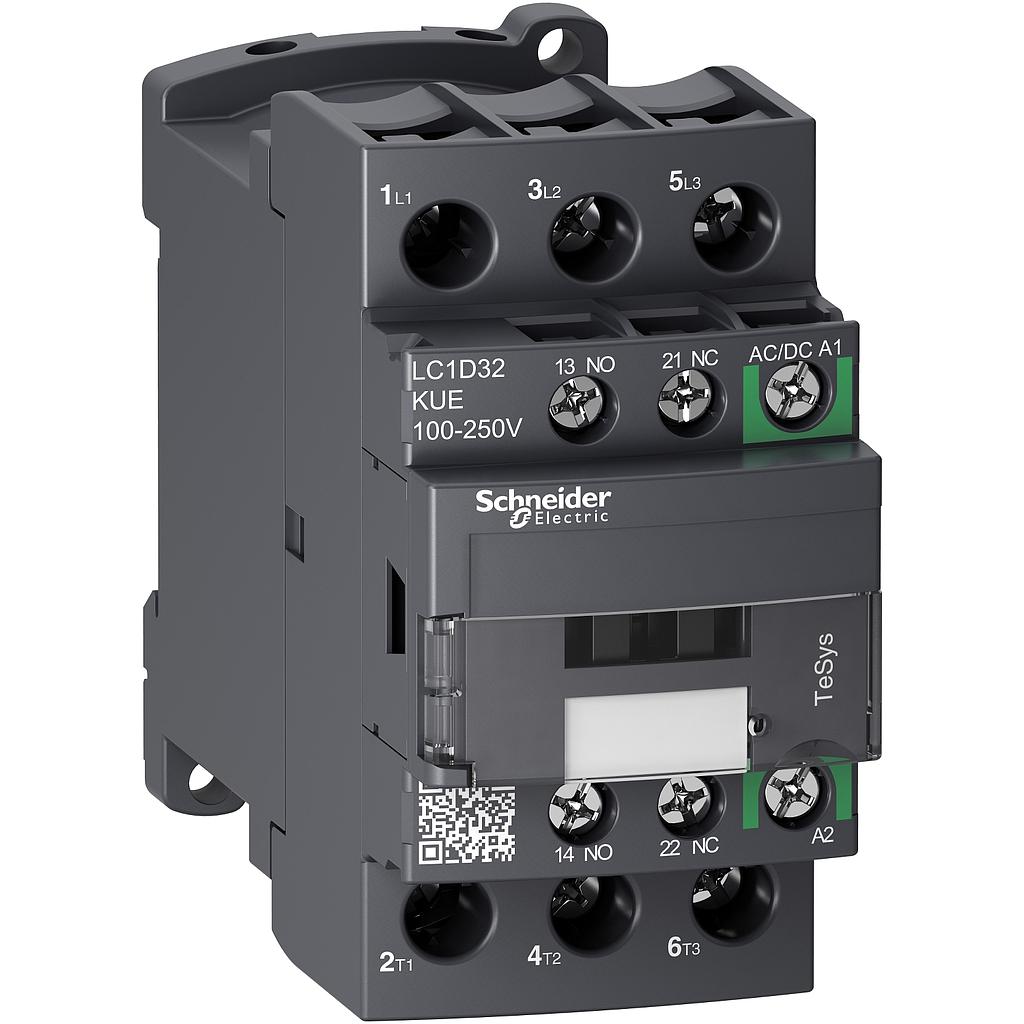

  4. Schneider TeSys D contactor 3P 32A AC-3 up to 440V coil 100-250V AC/DC

Schneider TeSys D contactor 3P 32A AC-3 up to 440V coil 100-250V AC/DC

# of Pole : 3

Arus Pengenal (A) : 32A

Coil AC/DC : 110-250V (KUE)

Rp 3,451,622.00 Rp 1,932,908.00 1932908 IDR

Rp 3,451,622.00

Option not available

  • # of Pole
  • Arus Pengenal (A)
  • Coil AC/DC

This combination does not exist.

Add to Cart

Schneider TeSys D contactor 3P 32A AC-3 up to 440V coil 100-250V AC/DC
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 1,932,908.00
44.00 % Rp 3,451,622.00 1932908 IDR

Rp 3,451,622.00

Option not available

Atur Jumlah & Catatan
Stock Total: 20

# of Pole : 3

Arus Pengenal (A) : 32A

Coil AC/DC : 110-250V (KUE)

Keranjang Beli Sekarang
Spesifikasi

[Deskripsi] Kontaktor Tesys D adalah produk kontaktor dengan penjualan terbesar di dunia, TeSys D menawarkan solusi multi-standar, bersama dengan aksesori paling lengkap di industri. Kontaktor TeSys D menawarkan pengaturan yang cepat dan sederhana dengan tetap mempertahankan ukuran yaitu 45 mm (9 hingga 38A) dan 55 mm (40 hingga 65 A) yang telah memenuhi standar internasional. Dari versi 40 hingga 65 A dilengkapi dengan EverLink™. [Spesifikasi] 1. product name : TeSys D Green 2. product or component type : Contactor 3. device short name : LC1D 4. contactor application : -Motor control -Resistive load 5. utilisation category : -AC-1 -AC-3 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : Power circuit: <= 690 V AC 25...400 Hz 9. [Ie] rated operational current : -32 A (at <60 °C) at <= 440 V AC-3 for power circuit -50 A (at <60 °C) at <= 440 V AC-1 for power circuit 10. motor power kW : -7.5 kW at 220...230 V AC 50 Hz (AC-3) -15 kW at 380...400 V AC 50 Hz (AC-3) -15 kW at 415 V AC 50 Hz (AC-3) -15 kW at 440 V AC 50 Hz (AC-3) -18.5 kW at 500 V AC 50 Hz (AC-3) -18.5 kW at 660...690 V AC 50 Hz (AC-3) 11. motor power HP (UL / CSA) : -2 hp at 115 V AC 60 Hz for 1 phase motors -5 hp at 230/240 V AC 60 Hz for 1 phase motors -10 hp at 200/208 V AC 60 Hz for 3 phases motors -10 hp at 230/240 V AC 60 Hz for 3 phases motors -20 hp at 460/480 V AC 60 Hz for 3 phases motors -25 hp at 575/600 V AC 60 Hz for 3 phases motors 12. [Uc] control circuit voltage : -100...250 V AC 50/60 Hz -100...250 V DC 13. coil type : AC/DC electronic 14. auxiliary contact composition : 1 NO + 1 NC 15. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947 16. overvoltage category : III 17. [Ith] conventional free air thermal current : -10 A (at 60 °C) for signalling circuit -25 A (at 60 °C) for power circuit 18. Irms rated making capacity : -250 A at 440 V for power circuit conforming to IEC 60947 -140 A AC for signalling circuit conforming to IEC 60947-5-1 -250 A DC for signalling circuit conforming to IEC 60947-5-1 19. rated breaking capacity : 250 A at 440 V for power circuit conforming to IEC 60947 20. [Icw] rated short-time withstand current : -100 A - 1 s for signalling circuit -120 A - 500 ms for signalling circuit -140 A - 100 ms for signalling circuit -30 A 40 °C - 10 min for power circuit -61 A 40 °C - 1 min for power circuit -105 A 40 °C - 10 s for power circuit -210 A 40 °C - 1 s for power circuit 21. associated fuse rating : -10 A gG for signalling circuit conforming to IEC 60947-5-1 -25 A gG at <= 690 V coordination type 1 for power circuit -20 A gG at <= 690 V coordination type 2 for power circuit 22. average impedance : 2.5 mOhm - Ith 25 A 50 Hz for power circuit 23. [Ui] rated insulation voltage : -Power circuit: 690 V conforming to IEC 60947-4-1 -Signalling circuit: 690 V conforming to IEC 60947-1 24. electrical durability : -2.4 Mcycles 8 A AC-3 at Ue <= 440 V -0.6 Mcycles 25 A AC-1 at Ue <= 440 V 25. power dissipation per pole : -1.56 W AC-1 -0.2 W AC-3 26. safety cover : With 27. mounting support : -Rail -Plate 28. standards : -EN/IEC 60947-4-1 -EN/IEC 60947-5-1 -UL 60947-4-1 -CSA C22.2 No 60947-4-1 29. product certifications : -CCC -CSA -EAC -UL -KC -DNV-GL -LROS (Lloyds register of shipping) 30. connections - terminals : -Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end -Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end -Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end -Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid -Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid -Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end -Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end -Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end -Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end -Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid -Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid 31. tightening torque : -Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm -Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 -Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm -Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 32. operating time : -45...55 ms closing -20...90 ms opening 33. safety reliability level : -B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 -B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 34. mechanical durability : 15 Mcycles 35. maximum operating rate : 3600 cyc/h 60 °C 36. coil technology : Built-in bidirectional peak limiting control circuit voltage limits 37. <= 0.1 Uc 60 °C drop-out : -0.85...1.1 Uc 60 °C operational AC -0.8...1.2 Uc 60 °C operational DC 38. inrush power in VA : 15 VA 50/60 Hz (at 20 °C) 39. inrush power in W : 14 W at 20 °C 40. hold-in power consumption in VA : 0.9 VA (at 20 °C) 50/60 Hz 41. hold-in power consumption in W : 0.6 W at 20 °C 42. heat dissipation : 0.6 W at 50/60 Hz 43. auxiliary contacts type : -type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 -type mirror contact 1 NC conforming to IEC 60947-4-1 44. signalling circuit frequency : 25...400 Hz 45. minimum switching current : 5 mA for signalling circuit 46. minimum switching voltage : 17 V for signalling circuit 47. non-overlap time : -1.5 ms on de-energisation between NC and NO contact -1.5 ms on energisation between NC and NO contact 48. insulation resistance : > 10 MOhm for signalling circuit 49. IP degree of protection : IP20 front face conforming to IEC 60529 50. protective treatment : TH conforming to IEC 60068-2-30 51. pollution degree : 3 52. ambient air temperature for operation : -25…60 °C 53. ambient air temperature for storage : -60…80 °C 54. permissible ambient air temperature around the device : -40…70 °C at Uc 55. operating altitude : 3000 m without 56. fire resistance : 850 °C conforming to IEC 60695-2-1 57. flame retardance : V1 conforming to UL 94 58. mechanical robustness : -Vibrations contactor open: 2 Gn, 5...300 Hz -Vibrations contactor closed: 4 Gn, 5...300 Hz -Shocks contactor open: 10 Gn for 11 ms -Shocks contactor closed: 15 Gn for 11 ms 59. height : 77 mm 60. width : 45 mm 61. depth : 86 mm 62. product weight : 0.368 kg 63. colour : -Grey (SE GREY 6) -Green (SE GREEN 2)


Main (see above)
range
TeSys
product name
TeSys D Green
product or component type
Contactor
device short name
LC1D
contactor application
Resistive load
Motor control
utilisation category
AC-3
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current
32 A (at <60 °C) at <= 440 V AC-3 for power circuit
50 A (at <60 °C) at <= 440 V AC-1 for power circuit
motor power kW
7.5 kW at 220...230 V AC 50 Hz (AC-3)
15 kW at 380...400 V AC 50 Hz (AC-3)
15 kW at 415 V AC 50 Hz (AC-3)
15 kW at 440 V AC 50 Hz (AC-3)
18.5 kW at 500 V AC 50 Hz (AC-3)
18.5 kW at 660...690 V AC 50 Hz (AC-3)
motor power HP (UL / CSA)
2 hp at 115 V AC 60 Hz for 1 phase motors
5 hp at 230/240 V AC 60 Hz for 1 phase motors
10 hp at 200/208 V AC 60 Hz for 3 phases motors
10 hp at 230/240 V AC 60 Hz for 3 phases motors
20 hp at 460/480 V AC 60 Hz for 3 phases motors
25 hp at 575/600 V AC 60 Hz for 3 phases motors
[Uc] control circuit voltage
100...250 V AC 50/60 Hz
100...250 V DC
coil type
AC/DC electronic
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A (at 60 °C) for signalling circuit
50 A (at 60 °C) for power circuit
Irms rated making capacity
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
550 A at 440 V for power circuit conforming to IEC 60947
rated breaking capacity
550 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
60 A 40 °C - 10 min for power circuit
138 A 40 °C - 1 min for power circuit
260 A 40 °C - 10 s for power circuit
430 A 40 °C - 1 s for power circuit
associated fuse rating
10 A gG for signalling circuit conforming to IEC 60947-5-1
63 A gG at <= 690 V coordination type 1 for power circuit
63 A gG at <= 690 V coordination type 2 for power circuit
average impedance
2 mOhm - Ith 50 A 50 Hz for power circuit
[Ui] rated insulation voltage
Power circuit: 690 V conforming to IEC 60947-4-1
Signalling circuit: 690 V conforming to IEC 60947-1
electrical durability
2.1 Mcycles 29 A AC-3 at Ue <= 440 V
0.9 Mcycles 50 A AC-1 at Ue <= 440 V
power dissipation per pole
2 W AC-3
5 W AC-1
Front cover
With
mounting support
Plate
Rail
standards
EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
product certifications
CCC
CSA
EAC
UL
KC
DNV-GL
LROS (Lloyds register of shipping)
connections - terminals
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid
Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 2.5…10 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…10 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm²solid
Power circuit: screw clamp terminals 2 cable(s) 2.5…10 mm²solid
tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2
operating time
45...55 ms closing
20...90 ms opening
safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
mechanical durability
15 Mcycles
maximum operating rate
3600 cyc/h 60 °C
Complementary (see above)
coil technology
Built-in bidirectional peak limiting
control circuit voltage limits
<= 0.1 Uc (-40…70 °C):drop-out AC/DC
0.85...1.1 Uc (-40…60 °C):operational AC/DC
1...1.1 Uc (60…70 °C):operational AC/DC
inrush power in VA
25 VA 50/60 Hz (at 20 °C)
inrush power in W
18 W at 20 °C
hold-in power consumption in VA
1.6 VA (at 20 °C) 50/60 Hz
hold-in power consumption in W
1.1 W at 20 °C
heat dissipation
1.1 W at 50/60 Hz
auxiliary contacts type
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1
signalling circuit frequency
25...400 Hz
minimum switching current
5 mA for signalling circuit
minimum switching voltage
17 V for signalling circuit
non-overlap time
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
insulation resistance
> 10 MOhm for signalling circuit
Environment (see above)
IP degree of protection
IP20 front face conforming to IEC 60529
protective treatment
TH conforming to IEC 60068-2-30
pollution degree
3
ambient air temperature for operation
-40…60 °C
60…70 °C with derating
ambient air temperature for storage
-60…80 °C
operating altitude
0...3000 m
fire resistance
850 °C conforming to IEC 60695-2-1
flame retardance
V1 conforming to UL 94
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor closed: 15 Gn for 11 ms
Shocks contactor open: 8 Gn for 11 ms
height
85 mm
width
45 mm
depth
92 mm
net weight
0.438 kg
colour
Grey (SE GREY 6)
Green (SE GREEN 2)
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
461 g
Package 1 Height
5.5 cm
Package 1 width
9.5 cm
Package 1 Length
11.8 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Halogen content performance
Halogen free plastic parts & cables product
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider TeSys D contactor 3P 32A AC-3 up to 440V coil 100-250V AC/DC
