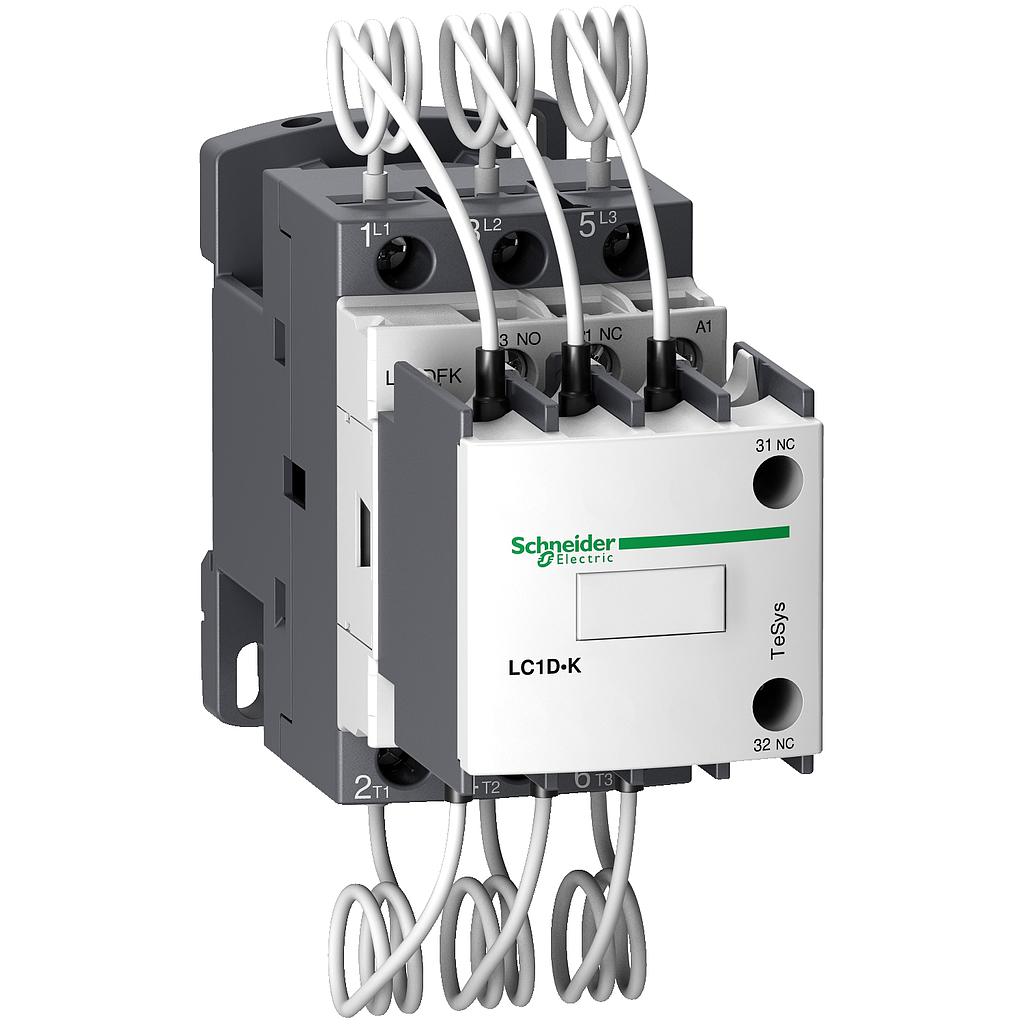

  4. Schneider Contactor TeSys LC1-DF 12.5 kVAr - coil 220 V AC

Schneider Contactor TeSys LC1-DF 12.5 kVAr - coil 220 V AC

# of Pole : 3

Coil AC : 220V (M7)

Rp 1.934.730,00 Rp 1.083.448,00 1083448 IDR

Rp 1.934.730,00

Option not available

  • # of Pole
  • Coil AC

This combination does not exist.

Add to Cart

Schneider Contactor TeSys LC1-DF 12.5 kVAr - coil 220 V AC
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 1.083.448,00
44.00 % Rp 1.934.730,00 1083448 IDR

Rp 1.934.730,00

Option not available

Atur Jumlah & Catatan
Stock Total: 51

# of Pole : 3

Coil AC : 220V (M7)

Keranjang Beli Sekarang
Spesifikasi

[Deskripsi] 1. poles description : 3P 2. power pole contact composition : 3 NO 3. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 4. reactive power rating : -7 kvar at 220…240 V AC 50/60 Hz 55 °C -13 kvar at 400…440 V AC 50/60 Hz 55 °C -21 kvar at 660…690 V AC 50/60 Hz 55 °C 5. control circuit type : AC at 50/60 Hz 6. [Uc] control circuit voltage : 220 V AC 50/60 Hz 7. auxiliary contact composition : 1 NO + 2 NC instantaneous for control circuit 8. height : 130 mm 9. width : 45 mm 10. depth : 117 mm 11. net weight : 0.53 kg


Main (see above)
range
TeSys
product name
TeSys LC1D.K
product or component type
Capacitor duty contactor
device short name
LC1DFK
device application
Control
contactor application
Power factor correction
utilisation category
AC-6b
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit: 690 V AC 50/60 Hz
reactive power rating
7 kvar at 230 V AC 50 Hz 60 °C
12.5 kvar at 400 V AC 50 Hz 60 °C
13 kvar at 440 V AC 50 Hz 60 °C
21 kvar at 690 V AC 50 Hz 60 °C
control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
220 V AC 50/60 Hz
auxiliary contact composition
1 NO + 2 NC instantaneous
electrical durability
300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
mounting support
DIN rail
Plate
standards
EN/IEC 60947-1
EN/IEC 60947-4-1
product certifications
IECEE CB Scheme
connections - terminals
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 1.5…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1.5…4 mm² - cable stiffness: flexible with cable end
tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 1.7 N.m - on screw clamp terminals
maximum operating rate
240 cyc/h
Complementary (see above)
auxiliary contacts type
type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment (see above)
IP degree of protection
IP20 front face conforming to IEC 60529
ambient air temperature for operation
-5…60 °C
ambient air temperature for storage
-60…80 °C
operating altitude
0...3000 m
height
115 mm
width
45 mm
depth
121 mm
net weight
0.53 kg
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
537 g
Package 1 Height
19.4 cm
Package 1 width
22.6 cm
Package 1 Length
6.8 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contractual warranty (see above)
Warranty
12 months
