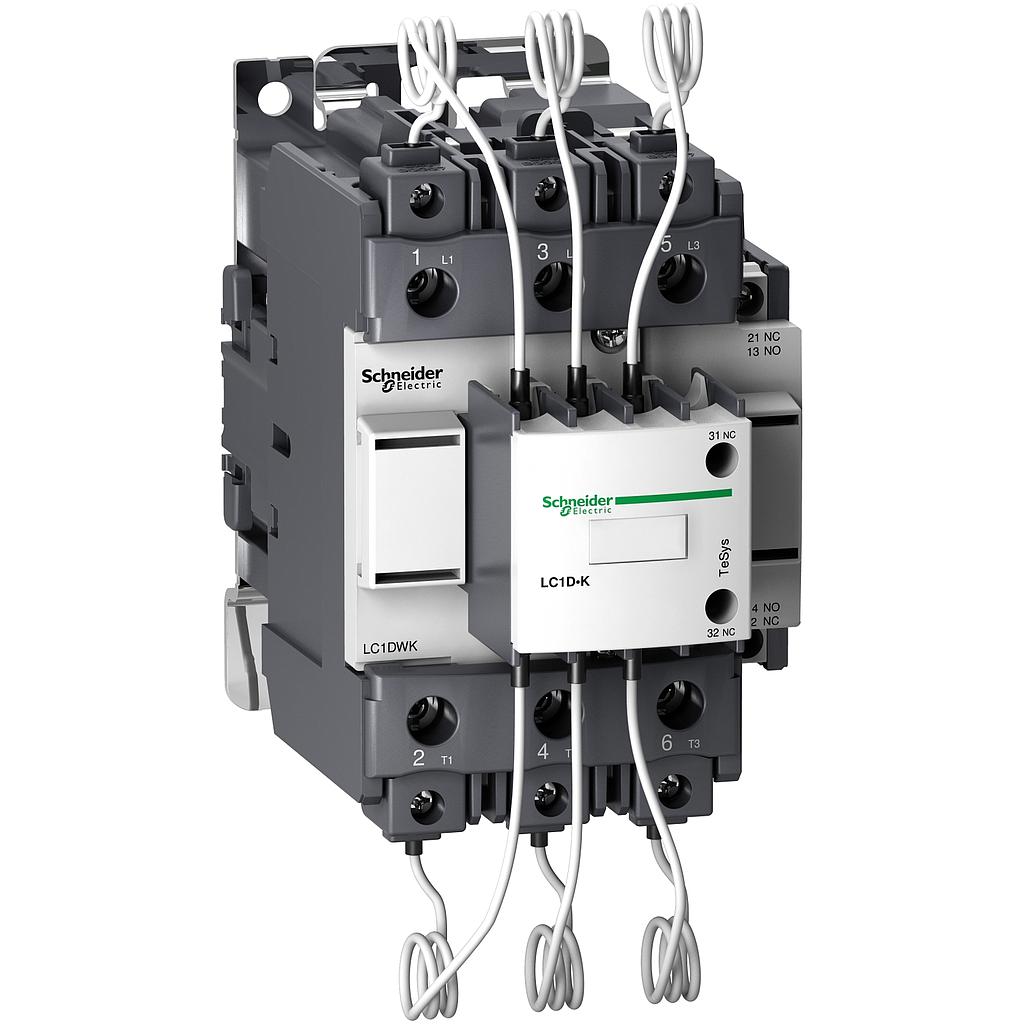

Schneider TeSys LC1D.K capacitor duty contactor - 3P - 60 kVAR - 415 V - 240 V AC coil

# of Pole : 3

Coil AC : 240V (U7)

Rp 7,567,502.00 Rp 4,237,801.00 4237801 IDR

Rp 7,567,502.00

Option not available

  • # of Pole
  • Coil AC

This combination does not exist.

Add to Cart

Schneider TeSys LC1D.K capacitor duty contactor - 3P - 60 kVAR - 415 V - 240 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 4,237,801.00
44.00 % Rp 7,567,502.00 4237801 IDR

Rp 7,567,502.00

Option not available

Atur Jumlah & Catatan
Stock Total: Out of Stock

# of Pole : 3

Coil AC : 240V (U7)

Spesifikasi
Main (see above)
range
TeSys
product name
TeSys LC1D.K
product or component type
Capacitor duty contactor
device short name
LC1DWK
device application
Control
contactor application
Power factor correction
utilisation category
AC-6b
poles description
3P
power pole contact composition
3 NO
device location in system
Inside delta interruption
Line interruption
[Ue] rated operational voltage
Power circuit: 690 V AC 50/60 Hz
reactive power rating
35 kvar at 230 V AC 50 Hz 60 °C
63 kvar at 400 V AC 50 Hz 60 °C
67 kvar at 440 V AC 50 Hz 60 °C
104 kvar at 690 V AC 50 Hz 60 °C
30 kvar at 230 V AC 60 Hz 60 °C
60 kvar at 460 V AC 60 Hz 60 °C
80 kvar at 575 V AC 60 Hz 60 °C
control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
240 V AC 50/60 Hz
auxiliary contact composition
1 NO + 2 NC instantaneous
electrical durability
300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
mounting support
DIN rail
Plate
standards
EN/IEC 60947-1
EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
product certifications
IECEE CB Scheme
UL
CSA
connections - terminals
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: connector 1 4…50 mm² - cable stiffness: solid
Power circuit: connector 2 4…25 mm² - cable stiffness: solid
Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end
Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end
Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end
Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end
tightening torque
Power circuit: 9 N.m - on connector
Control circuit: 1.7 N.m - on screw clamp terminals
maximum operating rate
240 cyc/h
Complementary (see above)
auxiliary contacts type
type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment (see above)
IP degree of protection
IP20 front face conforming to IEC 60529
ambient air temperature for operation
-5…60 °C
ambient air temperature for storage
-60…80 °C
operating altitude
0...3000 m
height
180 mm
width
85 mm
depth
154 mm
net weight
1.65 kg
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
1.815 kg
Package 1 Height
13 cm
Package 1 width
17.4 cm
Package 1 Length
19 cm
Unit Type of Package 2
S03
Number of Units in Package 2
4
Package 2 Weight
7.973 kg
Package 2 Height
30 cm
Package 2 width
30 cm
Package 2 Length
40 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contractual warranty (see above)
Warranty
12 months
