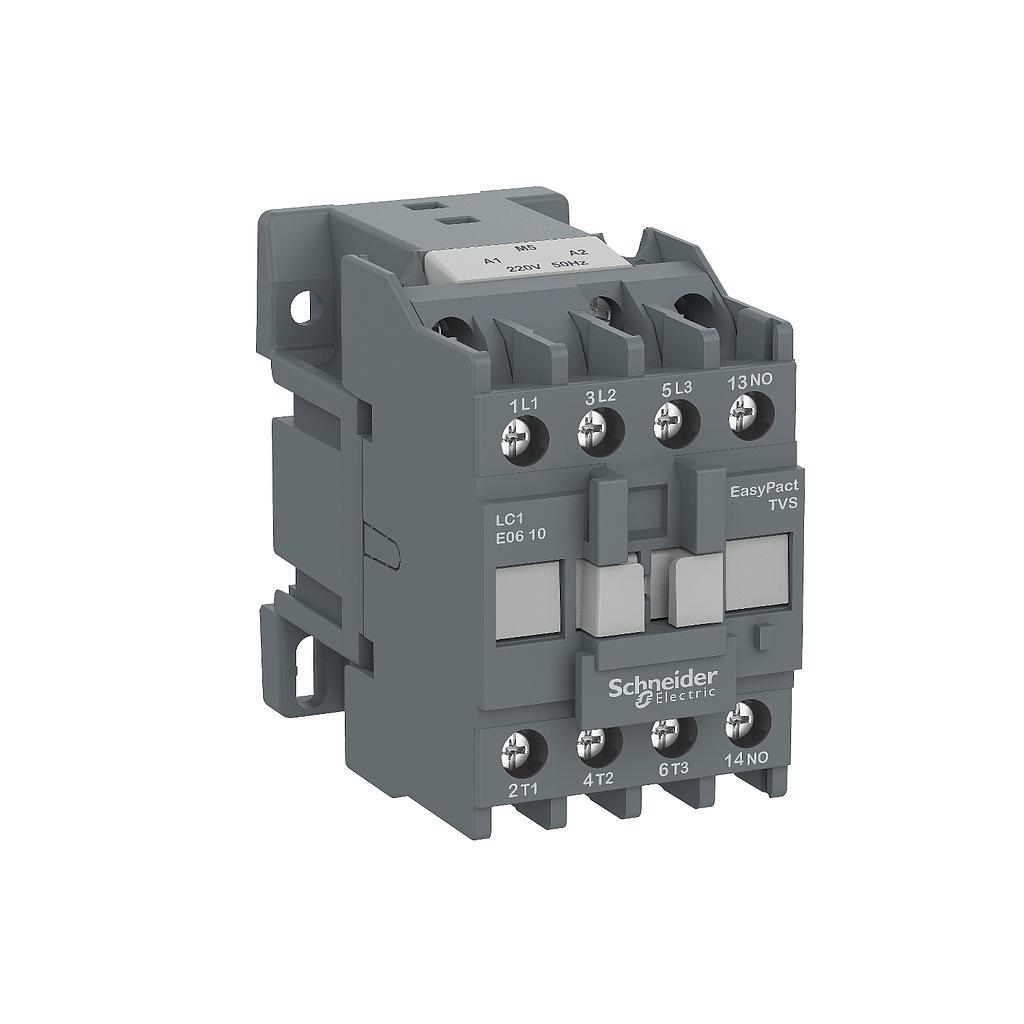

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 6A - 220 V AC coil

# of Pole : 3

Rp 265,245.00 Rp 148,537.00 148537 IDR

Rp 265,245.00

Option not available

  • # of Pole

This combination does not exist.

Add to Cart

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 6A - 220 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 148,537.00
44.00 % Rp 265,245.00 148537 IDR

Rp 265,245.00

Option not available

Atur Jumlah & Catatan
Stock Total: 289

# of Pole : 3

Spesifikasi

[Deskripsi] Kontaktor yang mencapai 630A untuk pengaplikasian AC3 335kW/ 400V dan 1000A utk AC1. Kontaktor Easypact TVS 3pole dari 6A hingga 630A untuk pengaplikasian motor induktif dan kontaktor 4pole dari 16A hingga 125A untuk pengaplikasian AC1. [Spesifikasi] 1. product name : EasyPact TVS 2. product or component type : Contactor 3. device short name : LC1E 4. contactor application : -Motor Control -Resistive Load 5. utilisation category : -AC-3 -AC-1 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 9. [Ie] rated operational current : -6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit -20 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 10. motor power kW : -1.1 kW at 220...230 V AC 50/60 Hz (AC-3) -2.2 kW at 380...400 V AC 50/60 Hz (AC-3) -2.2 kW at 415 V AC 50/60 Hz (AC-3) -2.2 kW at 440 V AC 50/60 Hz (AC-3) -3 kW at 500 V AC 50/60 Hz (AC-3) -3 kW at 660...690 V AC 50/60 Hz (AC-3) 11. Control circuit type : AC at 50/60 Hz 12. [Uc] control circuit voltage : 220 V AC 50/60 Hz 13. height : 74 mm 14. width : 45 mm 15. depth : 80 mm 16. net weight : 0.3 kg 17. colour : Grey (RAL 7011) 18. auxiliary contact composition : 1 NO 19. [Uimp] rated impulse withstand voltage : 6 kV coil not connected to the power circuit conforming to IEC 60947 20. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 21. overvoltage category : III 22. [Ith] conventional free air thermal current : 200 A at <= 60 °C for power circuit 23. Irms rated making capacity : 60 A at 440 V AC for power circuit conforming to IEC 60947-4-1 24. rated breaking capacity : 48 A at 440 V for power circuit conforming to IEC 60947 25. [Icw] rated short-time withstand current : -80 A 40 °C - 10 s for power circuit -45 A 40 °C - 60 s for power circuit -20 A 40 °C - 600 s for power circuit 26. associated fuse rating : - 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 -12 A gG at <= 690 V coordination type 1 for power circuit 27. average impedance : 2.5 mOhm - Ith 20 A 50 Hz for power circuit 28. power dissipation per pole : -0.09 W AC-3 -1 W AC-1 29. control circuit voltage limits : -Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C) -Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C) 30. operating time : -12...22 ms on closing -4...19 ms on opening 31. mechanical durability : 10000000 cycles 32. maximum operating rate : 1800 cyc/h 60 °C 33. inrush power in VA : -95 VA 50 Hz cos phi 0.75 (at 20 °C) -95 VA 60 Hz cos phi 0.75 (at 20 °C) 34. hold-in power consumption in VA : -8.5 VA 50 Hz cos phi 0.3 (at 20 °C) -8.5 VA 60 Hz cos phi 0.3 (at 20 °C) 35. heat dissipation : 2…3 W for control circuit 36. minimum switching current : 5 mA for control circuit 37. minimum switching voltage : 17 V for control circuit 38. non-overlap time : -1.5 ms on energisation guaranteed between NC and NO contact -1.5 ms on de-energisation guaranteed between NC and NO contact 39. insulation resistance : > 10 MOhm for control circuit 40. electrical durability : -1400000 cycles AC-3 -150000 cycles AC-1 41. mounting support : -Plate -DIN rail 42. connections – terminals : -Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end -Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end -Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end -Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end -Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end -Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end -Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end -Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end -Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end -Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end 43. tightening torque : -Power circuit: 1.2 N.m -Control circuit: 1.5 N.m


Main (see above)
range
EasyPact
product name
EasyPact TVS
product or component type
Contactor
device short name
LC1E
contactor application
Motor control
Resistive load
utilisation category
AC-3
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current
6 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
20 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
motor power kW
1.1 kW at 220...230 V AC 50/60 Hz
2.2 kW at 380...400 V
2.2 kW at 415 V
2.2 kW at 440 V
3 kW at 500 V
3 kW at 660...690 V
control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
220 V AC 50/60 Hz
height
74 mm
width
45 mm
depth
80 mm
net weight
0.3 kg
colour
Grey (RAL 7011)
Complementary (see above)
auxiliary contact composition
1 NO
[Uimp] rated impulse withstand voltage
6 kV coil not connected to the power circuit conforming to IEC 60947
[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1
overvoltage category
III
Irms rated making capacity
60 A at 440 V AC for power circuit conforming to IEC 60947-4-1
rated breaking capacity
48 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
80 A 40 °C - 10 s for power circuit
45 A 40 °C - 60 s for power circuit
20 A 40 °C - 600 s for power circuit
associated fuse rating
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
12 A gG at <= 690 V coordination type 1 for power circuit
average impedance
2.5 mOhm - Ith 20 A 50 Hz for power circuit
power dissipation per pole
0.09 W AC-3
1 W AC-1
control circuit voltage limits
Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
operating time
12...22 ms on closing
4...19 ms on opening
mechanical durability
10000000 cycles
maximum operating rate
1800 cyc/h 60 °C
inrush power in VA
95 VA 50 Hz cos phi 0.75 (at 20 °C)
95 VA 60 Hz cos phi 0.75 (at 20 °C)
hold-in power consumption in VA
8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
heat dissipation
2…3 W for control circuit
minimum switching current
5 mA for control circuit
minimum switching voltage
17 V for control circuit
non-overlap time
1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact
insulation resistance
> 10 MOhm for control circuit
electrical durability
1400000 cycles AC-3
150000 cycles AC-1
mounting support
Plate
DIN rail
connections - terminals
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Recommended tightening torque
Power circuit: 1.2 N.m
Control circuit: 1.2 N.m
Max tightening torque
Power circuit: 1.4 N.m
Control circuit: 1.4 N.m
Environment (see above)
standards
IEC 60947-5-1
IEC 60947-1
IEC 60947-4-1
product certifications
CE
EAC
IP degree of protection
IP2x conforming to IEC 60529
protective treatment
TH (pollution degree 3) conforming to IEC 60068-2-30
pollution degree
3
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-20…70 °C at Uc
operating altitude
3000 m without derating
fire resistance
850 °C conforming to IEC 60695-2-1
mechanical robustness
Vibrations contactor open: 1.5 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz
Shocks contactor open: 7 Gn for 11 ms
Shocks contactor closed: 10 Gn for 11 ms
Packing Units (see above)
Package 1 Weight
320.000 g
Package 1 Height
8.000 cm
Package 1 width
4.500 cm
Package 1 Length
7.400 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
