  2. Contactor
  3. TVS
  4. Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 380VAC coil

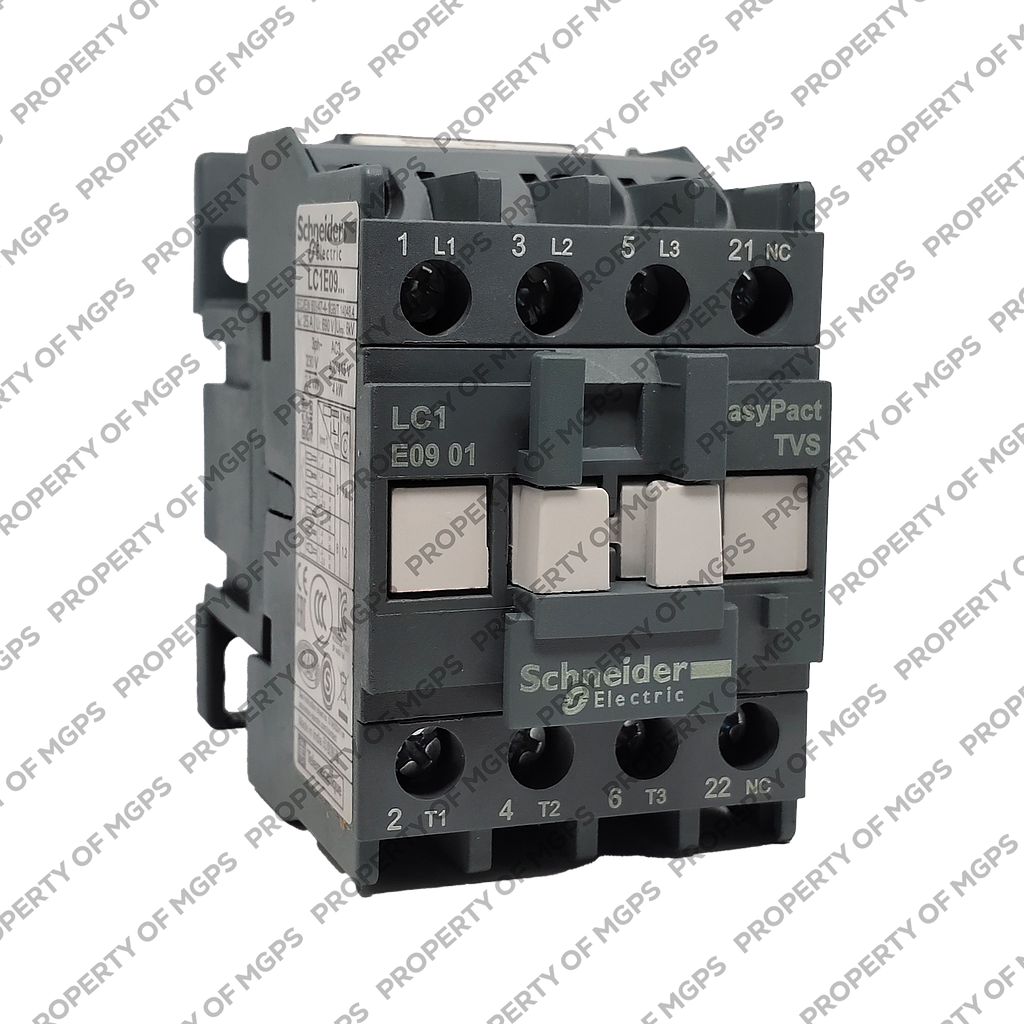

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 380VAC coil

Rp 290,398.00 Rp 162,622.00 162622 IDR

Rp 290,398.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 380VAC coil
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 162,622.00
    44.00 % Rp 290,398.00 162622 IDR

    Rp 290,398.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi

    [Deskripsi] Kontaktor yang mencapai 630A untuk pengaplikasian AC3 335kW/ 400V dan 1000A utk AC1. Kontaktor Easypact TVS 3pole dari 6A hingga 630A untuk pengaplikasian motor induktif dan kontaktor 4pole dari 16A hingga 125A untuk pengaplikasian AC1. [Spesifikasi] 1. product name : EasyPact TVS 2. product or component type : Contactor 3. device short name : LC1E 4. contactor application : -Resistive load -Motor control 5. utilisation category : -AC-1 -AC-3 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 9. [Ie] rated operational current : -9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit -25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 10. motor power kW : -2.2 kW at 220...230 V AC 50/60 Hz -4 kW at 380...400 V -4 kW at 415 V -4 kW at 440 V -5.5 kW at 500 V -5.5 kW at 660...690 V 11. control circuit type : AC at 50/60 Hz 12. [Uc] control circuit voltage : 220 V AC 50 Hz 13. height : 74 mm 14. width : 45 mm 15. depth : 80 mm 16. product weight : 0.3 kg 27. colour : Grey (RAL 7011) 28. auxiliary contact composition : 1 NC 29. [Uimp] rated impulse withstand voltage : 6 kV coil not connected to the power circuit conforming to IEC 60947 30. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 31. overvoltage category : III 32. Irms rated making capacity : 90 A at 440 V AC for power circuit conforming to IEC 60947-4-1 33. rated breaking capacity : 72 A at 440 V for power circuit conforming to IEC 60947 34. [Icw] rated short-time withstand current : -105 A 40 °C - 10 s for power circuit -61 A 40 °C - 60 s for power circuit -30 A 40 °C - 600 s for power circuit 35. associated fuse rating : -10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 -12 A gG at <= 690 V coordination type 1 for power circuit 36. average impedance : 2.5 mOhm - Ith 20 A 50 Hz for power circuit 37. power dissipation per pole : -0.2 W AC-3 -1.6 W AC-1 38. control circuit voltage limits : -Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C) -Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C) 39. operating time : -12...22 ms on closing -4...19 ms on opening 40. mechanical durability : 10000000 cycles 41. maximum operating rate : 1800 cyc/h 60 °C 42. inrush power in VA : -95 VA 50 Hz cos phi 0.75 (at 20 °C) -95 VA 60 Hz cos phi 0.75 (at 20 °C) 43. hold-in power consumption in VA : -8.5 VA 50 Hz cos phi 0.3 (at 20 °C) -8.5 VA 60 Hz cos phi 0.3 (at 20 °C) 44. heat dissipation : 2…3 W for control circuit 45. minimum switching current : 5 mA for control circuit 46. minimum switching voltage : 17 V for control circuit 47. non-overlap time : -1.5 ms on energisation guaranteed between NC and NO contact -1.5 ms on de-energisation guaranteed between NC and NO contact 48. insulation resistance : > 10 MOhm for control circuit 49. electrical durability : -1400000 cycles AC-3 -150000 cycles AC-1 50. mounting support : -DIN rail -Plate


    Main (see above)
    range
    EasyPact
    product name
    EasyPact TVS
    product or component type
    Contactor
    device short name
    LC1E
    contactor application
    Resistive load
    Motor control
    utilisation category
    AC-3
    AC-1
    poles description
    3P
    power pole contact composition
    3 NO
    [Ue] rated operational voltage
    Power circuit: <= 690 V AC 50/60 Hz
    [Ie] rated operational current
    9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
    25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
    motor power kW
    2.2 kW at 220...230 V AC 50/60 Hz
    4 kW at 380...400 V
    4 kW at 415 V
    4 kW at 440 V
    5.5 kW at 500 V
    5.5 kW at 660...690 V
    control circuit type
    AC at 50/60 Hz
    [Uc] control circuit voltage
    220 V AC 50/60 Hz
    height
    74 mm
    width
    45 mm
    depth
    80 mm
    net weight
    0.3 kg
    colour
    Grey (RAL 7011)
    Complementary (see above)
    auxiliary contact composition
    1 NC
    [Uimp] rated impulse withstand voltage
    6 kV coil not connected to the power circuit conforming to IEC 60947
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-4-1
    overvoltage category
    III
    Irms rated making capacity
    90 A at 440 V AC for power circuit conforming to IEC 60947-4-1
    rated breaking capacity
    72 A at 440 V for power circuit conforming to IEC 60947
    [Icw] rated short-time withstand current
    105 A 40 °C - 10 s for power circuit
    61 A 40 °C - 60 s for power circuit
    30 A 40 °C - 600 s for power circuit
    associated fuse rating
    10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
    20 A gG at <= 690 V coordination type 1 for power circuit
    average impedance
    2.5 mOhm - Ith 25 A 50 Hz for power circuit
    power dissipation per pole
    0.2 W AC-3
    1.6 W AC-1
    control circuit voltage limits
    Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
    Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
    operating time
    12...22 ms on closing
    4...19 ms on opening
    mechanical durability
    10000000 cycles
    maximum operating rate
    1800 cyc/h 60 °C
    inrush power in VA
    95 VA 50 Hz cos phi 0.75 (at 20 °C)
    95 VA 60 Hz cos phi 0.75 (at 20 °C)
    hold-in power consumption in VA
    8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
    8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
    heat dissipation
    2…3 W for control circuit
    minimum switching current
    5 mA for control circuit
    minimum switching voltage
    17 V for control circuit
    non-overlap time
    1.5 ms on energisation guaranteed between NC and NO contact
    1.5 ms on de-energisation guaranteed between NC and NO contact
    insulation resistance
    > 10 MOhm for control circuit
    electrical durability
    1400000 cycles AC-3
    150000 cycles AC-1
    mounting support
    Plate
    DIN rail
    connections - terminals
    Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
    Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
    Recommended tightening torque
    Power circuit: 1.2 N.m
    Control circuit: 1.2 N.m
    Max tightening torque
    Power circuit: 1.4 N.m
    Control circuit: 1.4 N.m
    Environment (see above)
    standards
    IEC 60947-4-1
    IEC 60947-1
    IEC 60947-5-1
    product certifications
    CE
    EAC
    IP degree of protection
    IP2x conforming to IEC 60529
    protective treatment
    TH (pollution degree 3) conforming to IEC 60068-2-30
    pollution degree
    3
    ambient air temperature for operation
    -5…55 °C
    ambient air temperature for storage
    -60…80 °C
    permissible ambient air temperature around the device
    -20…70 °C at Uc
    operating altitude
    3000 m without derating
    fire resistance
    850 °C conforming to IEC 60695-2-1
    mechanical robustness
    Vibrations contactor open: 1.5 Gn, 5...300 Hz
    Vibrations contactor closed: 3 Gn, 5...300 Hz
    Shocks contactor open: 7 Gn for 11 ms
    Shocks contactor closed: 10 Gn for 11 ms
    Packing Units (see above)
    Package 1 Weight
    320.000 g
    Package 1 Height
    8.000 cm
    Package 1 width
    4.500 cm
    Package 1 Length
    7.400 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
