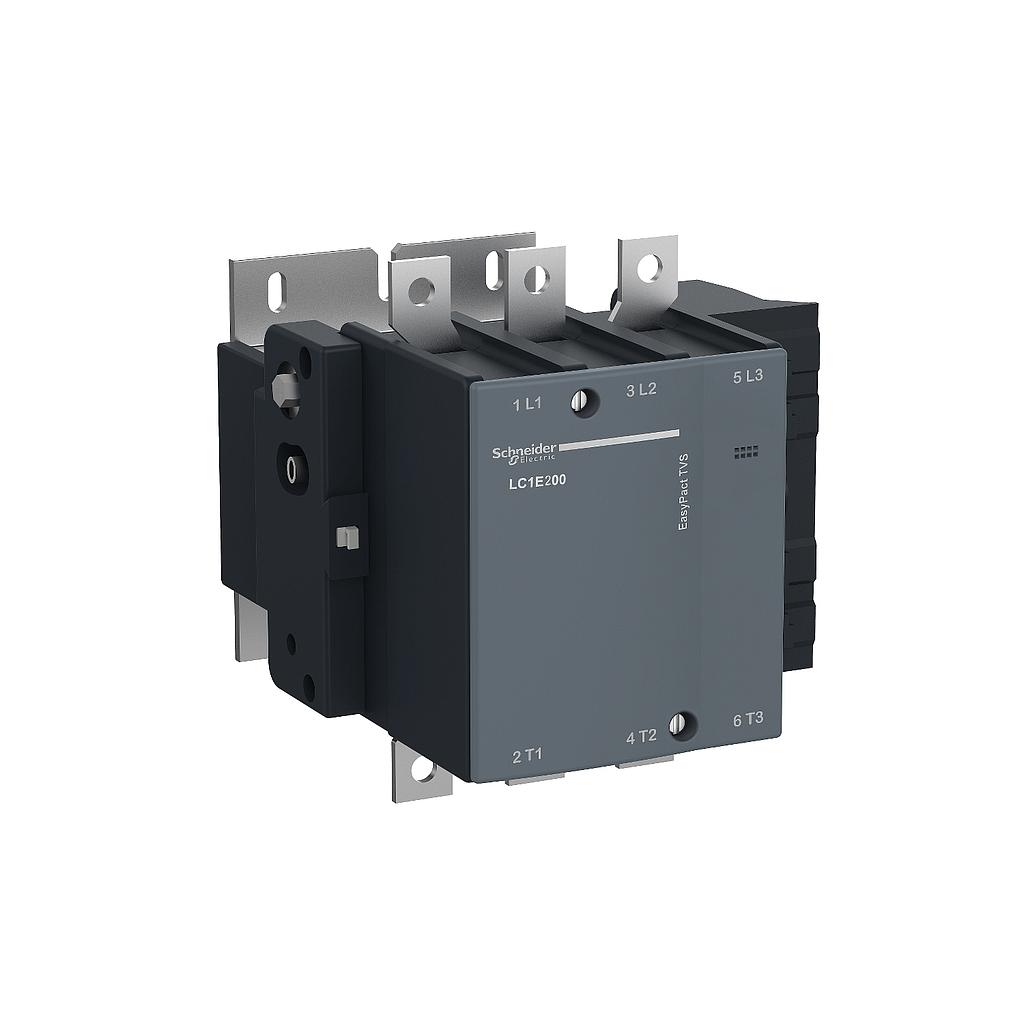

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 200A - 220 V AC coil
# of Pole : 3
Rp 5,134,148.00
44.00 %
Rp 9,168,122.00
Rp 9,168,122.00
Option not available
[Deskripsi] Kontaktor yang mencapai 630A untuk pengaplikasian AC3 335kW/ 400V dan 1000A utk AC1. Kontaktor Easypact TVS 3pole dari 6A hingga 630A untuk pengaplikasian motor induktif dan kontaktor 4pole dari 16A hingga 125A untuk pengaplikasian AC1. [Spesifikasi] 1. product name : EasyPact TVS 2. product or component type : Contactor 3. device short name : LC1E 4. contactor application : -Motor control -Resistive load 5. utilisation category : -AC-3 -AC-1 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 9. [Ie] rated operational current : -200A (at <55 °C) at <= 440 V AC AC-3 for power circuit -250 A (at <40 °C) at <= 440 V AC AC-1 for power circuit 10. motor power kW : -55 kW at 220...230 V AC 50/60 Hz -90 kW at 380...400 V -100 kW at 415 V -100 kW at 440 V -110 kW at 500 V -110 kW at 660...690 V 11. control circuit type : AC at 50 Hz 12. [Uc] control circuit voltage : 220 V AC 50 Hz 13. height : 174 mm 14. width : 168.5 mm 15. depth : 181 mm 16. net weight : 4.6 kg 17. [Uimp] rated impulse withstand voltage : 8 kV coil not connected to the power circuit conforming to IEC 60947 18. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 19. overvoltage category : III 20. Irms rated making capacity : 1200 A at 440 V AC for power circuit conforming to IEC 60947-4-1 21. rated breaking capacity : 960 A at 440 V for power circuit conforming to IEC 60947 22. [Icw] rated short-time withstand current : 1100 A 40 °C - 10 s for power circuit 23. associated fuse rating : -250 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 -10 A gG at <= 690 V coordination type 1 for power circuit 24. average impedance : 0.6 mOhm - Ith 150 A 50 Hz for power circuit 25. power dissipation per pole : -8.6 W AC-3 -14 W AC-1 26. control circuit voltage limits : -Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C) -Drop-out: 0.35...0.55 Uc at 50 Hz (at <55 °C) 27. operating time : -20...50 ms on closing -6...20 ms on opening 28. mechanical durability : 400000 cycles 29. maximum operating rate : 1200 cyc/h 55 °C 30. inrush power in VA : -300 VA 50 Hz cos phi 0.8 (at 20 °C) -300 VA 60 Hz cos phi 0.8 (at 20 °C) 31. hold-in power consumption in VA : -22 VA 50 Hz cos phi 0.3 (at 20 °C) -22 VA 60 Hz cos phi 0.3 (at 20 °C) 32. heat dissipation : 3…8 W for control circuit 33. minimum switching current : 5 mA for control circuit 34. minimum switching voltage : 17 V for control circuit 35. non-overlap time : -1.5 ms on energisation guaranteed between NC and NO contact -1.5 ms on de-energisation guaranteed between NC and NO contact 36. insulation resistance : > 10 MOhm for control circuit 37. electrical durability : -800000 cycles AC-3 -250000 cycles AC-1 38. mounting support : -DIN rail -Plate 39. standards : -IEC 60947-1 -IEC 60947-5-1 -IEC 60947-4-1 40. product certifications : EAC 41. IP degree of protection : IP2x conforming to IEC 60529 42. protective treatment : TH (pollution degree 3) conforming to IEC 60068 43. pollution degree : 3 44. ambient air temperature for operation : -5…55 °C 45. ambient air temperature for storage : -60…80 °C 46. permissible ambient air temperature around the device : -20…70 °C at Uc 47. operating altitude : 3000 m without 48. fire resistance : 850 °C conforming to IEC 60695-2-1 49. mechanical robustness : -Vibrations contactor open: 1.5 Gn, 5...300 Hz -Vibrations contactor closed: 3 Gn, 5...300 Hz -Shocks contactor open: 6 Gn for 11 ms -Shocks contactor closed: 7 Gn for 11 ms
Specifications for Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 200A - 220 V AC coil
| # of Pole | 3 |
HOT PROMO
[Deskripsi] Kontaktor yang mencapai 630A untuk pengaplikasian AC3 335kW/ 400V dan 1000A utk AC1. Kontaktor Easypact TVS 3pole dari 6A hingga 630A untuk pengaplikasian motor induktif dan kontaktor 4pole dari 16A hingga 125A untuk pengaplikasian AC1. [Spesifikasi] 1. product name : EasyPact TVS 2. product or component type : Contactor 3. device short name : LC1E 4. contactor application : -Motor control -Resistive load 5. utilisation category : -AC-3 -AC-1 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 9. [Ie] rated operational current : -200A (at <55 °C) at <= 440 V AC AC-3 for power circuit -250 A (at <40 °C) at <= 440 V AC AC-1 for power circuit 10. motor power kW : -55 kW at 220...230 V AC 50/60 Hz -90 kW at 380...400 V -100 kW at 415 V -100 kW at 440 V -110 kW at 500 V -110 kW at 660...690 V 11. control circuit type : AC at 50 Hz 12. [Uc] control circuit voltage : 220 V AC 50 Hz 13. height : 174 mm 14. width : 168.5 mm 15. depth : 181 mm 16. net weight : 4.6 kg 17. [Uimp] rated impulse withstand voltage : 8 kV coil not connected to the power circuit conforming to IEC 60947 18. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 19. overvoltage category : III 20. Irms rated making capacity : 1200 A at 440 V AC for power circuit conforming to IEC 60947-4-1 21. rated breaking capacity : 960 A at 440 V for power circuit conforming to IEC 60947 22. [Icw] rated short-time withstand current : 1100 A 40 °C - 10 s for power circuit 23. associated fuse rating : -250 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 -10 A gG at <= 690 V coordination type 1 for power circuit 24. average impedance : 0.6 mOhm - Ith 150 A 50 Hz for power circuit 25. power dissipation per pole : -8.6 W AC-3 -14 W AC-1 26. control circuit voltage limits : -Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C) -Drop-out: 0.35...0.55 Uc at 50 Hz (at <55 °C) 27. operating time : -20...50 ms on closing -6...20 ms on opening 28. mechanical durability : 400000 cycles 29. maximum operating rate : 1200 cyc/h 55 °C 30. inrush power in VA : -300 VA 50 Hz cos phi 0.8 (at 20 °C) -300 VA 60 Hz cos phi 0.8 (at 20 °C) 31. hold-in power consumption in VA : -22 VA 50 Hz cos phi 0.3 (at 20 °C) -22 VA 60 Hz cos phi 0.3 (at 20 °C) 32. heat dissipation : 3…8 W for control circuit 33. minimum switching current : 5 mA for control circuit 34. minimum switching voltage : 17 V for control circuit 35. non-overlap time : -1.5 ms on energisation guaranteed between NC and NO contact -1.5 ms on de-energisation guaranteed between NC and NO contact 36. insulation resistance : > 10 MOhm for control circuit 37. electrical durability : -800000 cycles AC-3 -250000 cycles AC-1 38. mounting support : -DIN rail -Plate 39. standards : -IEC 60947-1 -IEC 60947-5-1 -IEC 60947-4-1 40. product certifications : EAC 41. IP degree of protection : IP2x conforming to IEC 60529 42. protective treatment : TH (pollution degree 3) conforming to IEC 60068 43. pollution degree : 3 44. ambient air temperature for operation : -5…55 °C 45. ambient air temperature for storage : -60…80 °C 46. permissible ambient air temperature around the device : -20…70 °C at Uc 47. operating altitude : 3000 m without 48. fire resistance : 850 °C conforming to IEC 60695-2-1 49. mechanical robustness : -Vibrations contactor open: 1.5 Gn, 5...300 Hz -Vibrations contactor closed: 3 Gn, 5...300 Hz -Shocks contactor open: 6 Gn for 11 ms -Shocks contactor closed: 7 Gn for 11 ms
