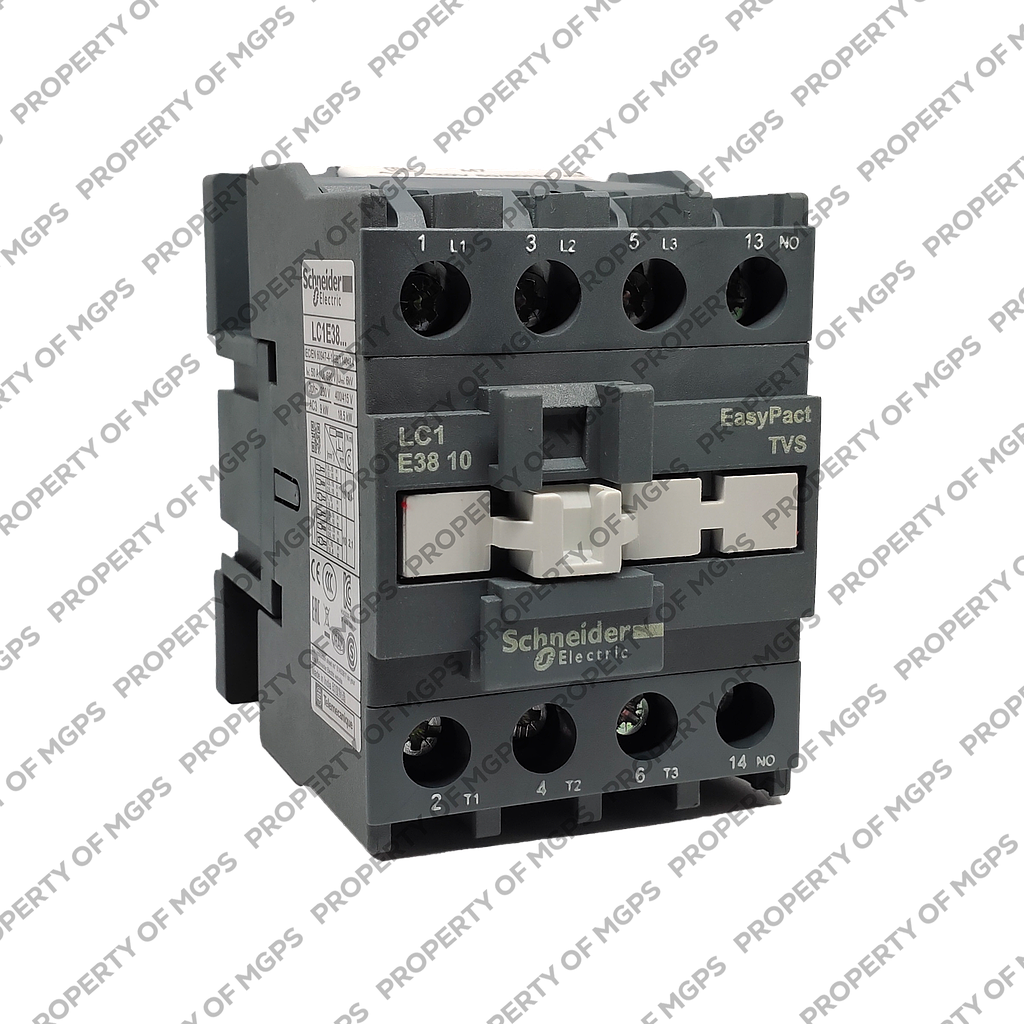

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 38A - 220 V AC coil

# of Pole : 3

Rp 966,088.00 Rp 541,009.00 541009 IDR

Rp 966,088.00

Option not available

  • # of Pole

This combination does not exist.

Add to Cart

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 38A - 220 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 541,009.00
44.00 % Rp 966,088.00 541009 IDR

Rp 966,088.00

Option not available

Atur Jumlah & Catatan
Stock Total: 20

# of Pole : 3

Spesifikasi

[Deskripsi] Kontaktor yang mencapai 630A untuk pengaplikasian AC3 335kW/ 400V dan 1000A utk AC1. Kontaktor Easypact TVS 3pole dari 6A hingga 630A untuk pengaplikasian motor induktif dan kontaktor 4pole dari 16A hingga 125A untuk pengaplikasian AC1. [Spesifikasi] 1. product name : EasyPact TVS 2. product or component type : Contactor 3. device short name : LC1E 4. contactor application : -Resistive load -Motor control 5. utilisation category : -AC-1 -AC-3 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 9. [Ie] rated operational current : -50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit -38 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 10. motor power kW : -18.5 kW at 500 V -18.5 kW at 660...690 V -9 kW at 220...230 V AC 50/60 Hz -18.5 kW at 380...400 V -18.5 kW at 415 V -18.5 kW at 440 V 11. control circuit type : AC at 50/60 Hz 12. [Uc] control circuit voltage : 220 V AC 50/60 Hz 13. height : 84 mm 14. width : 56 mm 15. depth : 86 mm 16. product weight : 0.45 kg 27. colour : Grey (RAL 7011) 28. auxiliary contact composition : 1 NO 29. [Uimp] rated impulse withstand voltage : 6 kV coil not connected to the power circuit conforming to IEC 60947 30. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 31. overvoltage category : III 32. Irms rated making capacity : 380 A at 440 V AC for power circuit conforming to IEC 60947-4-1 33. rated breaking capacity : 204 A at 440 V for power circuit conforming to IEC 60947 34. [Icw] rated short-time withstand current : -310 A 40 °C - 10 s for power circuit -150 A 40 °C - 60 s for power circuit -60 A 40 °C - 600 s for power circuit 35. associated fuse rating : -10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 -63 A gG at <= 690 V coordination type 1 for power circuit 36. average impedance : 2.5 mOhm - Ith 50 A 50 Hz for power circuit 37. power dissipation per pole : -2.9 W AC-3 -5 W AC-1 38. control circuit voltage limits : -Operational: 0.85...1.1 Uc at 50 Hz (at <55 °C) -Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C) 39. operating time : -12...22 ms on closing -4...19 ms on opening 40. mechanical durability : 10000000 cycles 41. maximum operating rate : 1800 cyc/h 60 °C 42. inrush power in VA : -95 VA 50 Hz cos phi 0.75 (at 20 °C) -95 VA 60 Hz cos phi 0.75 (at 20 °C) 43. hold-in power consumption in VA : -8.5 VA 50 Hz cos phi 0.3 (at 20 °C) -8.5 VA 60 Hz cos phi 0.3 (at 20 °C) 44. heat dissipation : 2…3 W for control circuit 45. minimum switching current : 5 mA for control circuit 46. minimum switching voltage : 17 V for control circuit 47. non-overlap time : -1.5 ms on energisation guaranteed between NC and NO contact -1.5 ms on de-energisation guaranteed between NC and NO contact 48. insulation resistance : > 10 MOhm for control circuit 49. electrical durability : -1400000 cycles AC-3 -150000 cycles AC-1 50. mounting support : -DIN rail -Plate 51. standards : -IEC 60947-5-1 -IEC 60947-1 -IEC 60947-4-1 52. product certifications : EAC 53. IP degree of protection : IP2x conforming to IEC 60529 54. protective treatment : TH (pollution degree 3) conforming to IEC 60068 55. pollution degree : 3 56. ambient air temperature for operation : -5…55 °C 57. ambient air temperature for storage : -60…80 °C 58. permissible ambient air temperature around the device : -20…70 °C at Uc 59. operating altitude : 3000 m without 60. fire resistance : 850 °C conforming to IEC 60695-2-1 61. mechanical robustness : -Vibrations contactor open: 1.5 Gn, 5...300 Hz -Vibrations contactor closed: 3 Gn, 5...300 Hz -Shocks contactor open: 7 Gn for 11 ms -Shocks contactor closed: 10 Gn for 11 ms


Main (see above)
range
EasyPact
product name
EasyPact TVS
product or component type
Contactor
device short name
LC1E
contactor application
Motor control
Resistive load
utilisation category
AC-3
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current
50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
motor power kW
18.5 kW at 500 V
18.5 kW at 660...690 V
9 kW at 220...230 V AC 50/60 Hz
18.5 kW at 380...400 V
18.5 kW at 415 V
18.5 kW at 440 V
control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
220 V AC 50/60 Hz
height
84 mm
width
56 mm
depth
86 mm
net weight
0.45 kg
colour
Grey (RAL 7011)
Complementary (see above)
auxiliary contact composition
1 NO
[Uimp] rated impulse withstand voltage
6 kV coil not connected to the power circuit conforming to IEC 60947
[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1
overvoltage category
III
Irms rated making capacity
380 A at 440 V AC for power circuit conforming to IEC 60947-4-1
rated breaking capacity
304 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
60 A 40 °C - 600 s for power circuit
310 A 40 °C - 10 s for power circuit
150 A 40 °C - 60 s for power circuit
associated fuse rating
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
63 A gG at <= 690 V coordination type 1 for power circuit
average impedance
2.5 mOhm - Ith 50 A 50 Hz for power circuit
power dissipation per pole
2.9 W AC-3
5 W AC-1
control circuit voltage limits
Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
operating time
12...22 ms on closing
4...19 ms on opening
mechanical durability
8000000 cycles
maximum operating rate
1800 cyc/h 60 °C
inrush power in VA
95 VA 50 Hz cos phi 0.75 (at 20 °C)
95 VA 60 Hz cos phi 0.75 (at 20 °C)
hold-in power consumption in VA
8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
heat dissipation
2…3 W for control circuit
minimum switching current
5 mA for control circuit
minimum switching voltage
17 V for control circuit
non-overlap time
1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact
insulation resistance
> 10 MOhm for control circuit
electrical durability
350000 cycles AC-1
900000 cycles AC-3
mounting support
DIN rail
Plate
connections - terminals
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Recommended tightening torque
Control circuit: 1.2 N.m
Power circuit: 2.1 N.m
Max tightening torque
Control circuit: 1.4 N.m
Power circuit: 2.3 N.m
Environment (see above)
standards
IEC 60947-1
IEC 60947-5-1
IEC 60947-4-1
product certifications
EAC
CE
IP degree of protection
IP2x conforming to IEC 60529
protective treatment
TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
pollution degree
3
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-20…70 °C at Uc
operating altitude
3000 m without derating
fire resistance
850 °C conforming to IEC 60695-2-1
mechanical robustness
Vibrations contactor open: 1.5 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz
Shocks contactor closed: 10 Gn for 11 ms
Shocks contactor open: 6 Gn for 11 ms
Packing Units (see above)
Package 1 Weight
431.000 g
Package 1 Height
86.000 mm
Package 1 width
56.000 mm
Package 1 Length
84.000 mm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Specifications for Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 38A - 220 V AC coil

# of Pole 3
