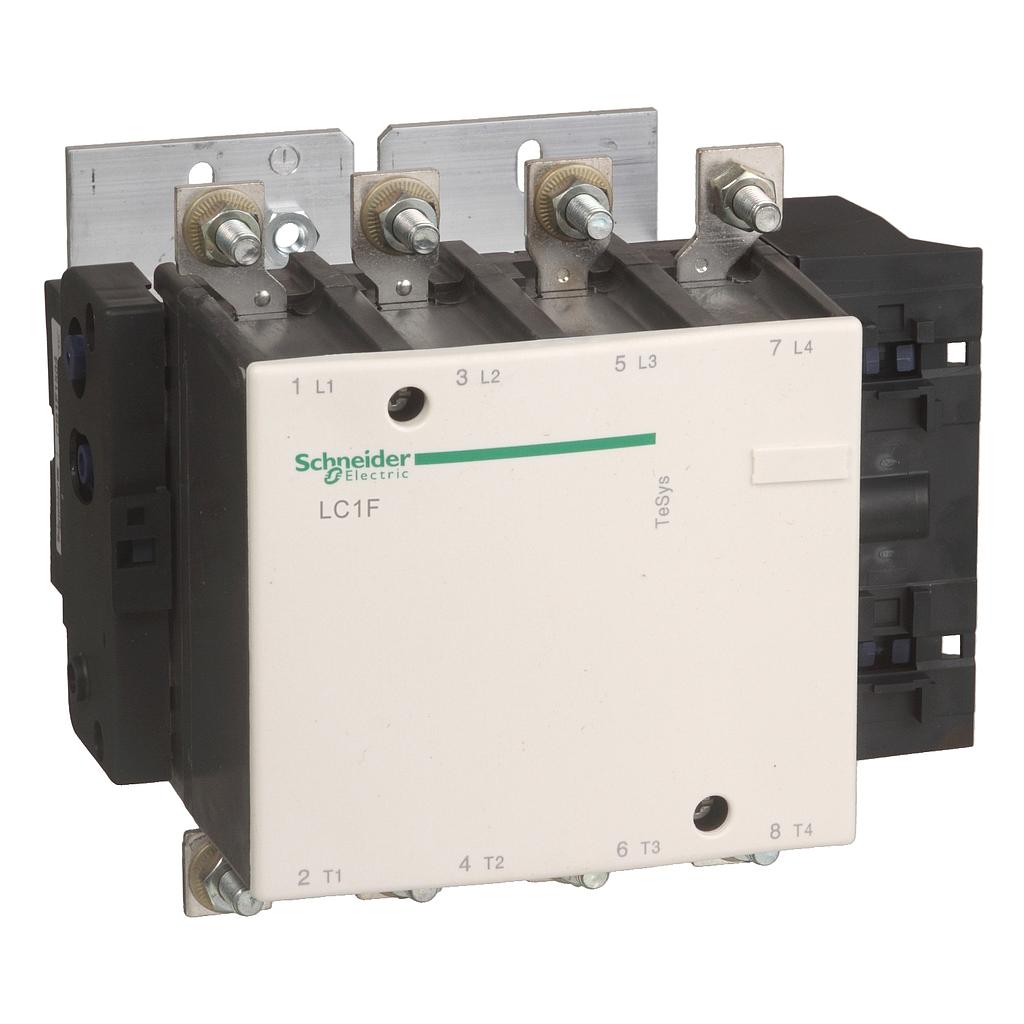

  4. Schneider TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 350 A - without coil

Schneider TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 350 A - without coil

# of Pole : 4

Rp 29,252,473.00 Rp 13,163,612.00 13163612 IDR

Rp 29,252,473.00

Option not available

  • # of Pole

This combination does not exist.

Add to Cart

Schneider TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 350 A - without coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 13,163,612.00
55.00 % Rp 29,252,473.00 13163612 IDR

Rp 29,252,473.00

Option not available

Atur Jumlah & Catatan
Stock Total: 7

# of Pole : 4

Keranjang Beli Sekarang
Spesifikasi

[Deskripsi] 1. product name : TeSys F 2. product or component type : Contactor 3. device short name : LC1F 4. contactor application : Resistive load 5. utilisation category : AC-1 6. poles description : 4P 7. power pole contact composition : 4 NO 8. [Ue] rated operational voltage : -<= 1000 V AC 50/60 Hz -<= 460 V DC 9. [Ie] rated operational current : 350 A (at <40 °C) at <= 440 V AC-1 10. [Uimp] rated impulse withstand voltage : 8 kV 11. overvoltage category : III 12. [Ith] conventional free air thermal current : 350 A (at 40 °C) 13. Irms rated making capacity : 2650 A conforming to IEC 60947-4-1 14. rated breaking capacity : 2120 A conforming to IEC 60947-4-1 15. [Icw] rated short-time withstand current : -2200 A 40 °C - 10 s -1230 A 40 °C - 30 s -950 A 40 °C - 1 min -620 A 40 °C - 3 min -480 A 40 °C - 10 min 16. associated fuse rating : -315 A aM at <= 440 V -400 A gG at <= 440 V 17. average impedance : 0.3 mOhm - Ith 350 A 50 Hz 18. [Ui] rated insulation voltage : -1000 V conforming to IEC 60947-4-1 -1500 V conforming to VDE 0110 group C 19. power dissipation per pole : 37 W AC-1 20. mounting support : Plate 21. standards : -EN 60947-1 -JIS C8201-4-1 -IEC 60947-4-1 -EN 60947-4-1 -IEC 60947-1 22. product certifications : -RINA -ABS -CSA -DNV -RMRoS -BV -LROS (Lloyds register of shipping) -UL -CB 23. connections - terminals : -Power circuit: lugs-ring terminals 1 cable(s) 95 mm² -Power circuit: connector 1 cable(s) 95 mm² -Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm -Power circuit: bolted connection 24. tightening torque : Power circuit: 10 N.m 25. IP degree of protection : -IP2x front face with shrouds conforming to IEC 60529 -IP2x front face with shrouds conforming to VDE 0106 26. protective treatment : TH 27. ambient air temperature for operation : -5…55 °C 28. ambient air temperature for storage : -60…80 °C 29. permissible ambient air temperature around the device : -40…70 °C 30. operating altitude : 3000 m without 31. mechanical robustness : -Vibrations contactor open: 2 Gn, 5...300 Hz -Vibrations contactor closed: 6 Gn, 5...300 Hz -Shocks contactor open: 9 Gn for 1/2 sine wave (11 ms) -Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) 32. height : 203 mm 33. width : 244.5 mm 34. depth : 213 mm 35. net weight : 8.54 kg


Main (see above)
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Resistive load
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current
350 A (at <40 °C) at <= 440 V AC AC-1
Complementary (see above)
[Uc] control circuit voltage
24...1000 V AC 40...400 Hz with LX1/LX9 coil
24...460 V DC with LX4 coil
100...250 V AC 50/60 Hz with LXE coil
100...380 V with LXE coil
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
350 A (at 40 °C)
Irms rated making capacity
2650 A AC conforming to IEC 60947-4-1
rated breaking capacity
2120 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current
2200 A 40 °C - 10 s
1230 A 40 °C - 30 s
950 A 40 °C - 1 min
620 A 40 °C - 3 min
480 A 40 °C - 10 min
associated fuse rating
315 A aM at <= 440 V
400 A gG at <= 440 V
average impedance
0.3 mOhm - Ith 350 A 50 Hz
[Ui] rated insulation voltage
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
power dissipation per pole
37 W AC-1
control circuit voltage limits
Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil
Drop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coil
Operational: 0.85...1.1 Uc DC with LX4 coil
Drop-out: 0.15...0.2 Uc DC with LX4 coil
Operational: 85...275 V AC 50/60 Hz with LXE coil
Drop-out: 0...60 V AC 50/60 Hz with LXE coil
Operational: 85...418 V DC with LXE coil
Drop-out: 0...45 V DC with LXE coil
heat dissipation
8 W
2.2…2.5 W
operating time
40...65 ms closing for with LX1/LX9 coil
100...170 ms opening for with LX1/LX9 coil
40...50 ms closing for with LX4 coil
40...65 ms opening for with LX4 coil
40...80 ms closing for with LXE coil
6...54 ms opening for with LXE coil
mounting support
Plate
standards
IEC 60947-1
IEC 60947-4-1
JIS C8201-4-1
EN 60947-1
EN 60947-4-1
product certifications
ABS
CB
DNV
RMRoS
UL
CSA
RINA
LROS (Lloyds register of shipping)
BV
UKCA
connections - terminals
Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm
Power circuit: lugs-ring terminals 1 cable(s) 240 mm²
Power circuit: connector 1 cable(s) 240 mm²
Power circuit: bolted connection
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²
Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²flexible without cable end
Control circuit: screw clamp terminals 1.0 cable(s) 0.25…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²solid without cable end
tightening torque
Power circuit: 35 N.m
Control circuit: 1.2 N.m
Control circuit: 0.6 N.m
mechanical durability
10 Mcycles
inrush power in VA
600…700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
655…803 VA (at 20 °C)with LX4 coil
300…350 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil
300…310 VA (at 20 °C)with LXE coil
hold-in power consumption in VA
8…10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
3.68…4.53 VA (at 20 °C)with LX4 coil
4.5…7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil
2.5…4.0 VA (at 20 °C)with LXE coil
maximum operating rate
2400 cyc/h 55 °C
compatibility code
LC1F
Environment (see above)
IP degree of protection
IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106
protective treatment
TH
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C
operating altitude
3000 m without derating
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 5 Gn, 5...300 Hz
Shocks contactor open: 6 Gn for 1/2 sine wave (11 ms)
Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms)
height
203 mm
width
244.5 mm
depth
213 mm
net weight
8.54 kg
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
8.516 kg
Package 1 Height
24.4 cm
Package 1 width
28.6 cm
Package 1 Length
24 cm
Unit Type of Package 2
P06
Number of Units in Package 2
10
Package 2 Weight
93.66 kg
Package 2 Height
77 cm
Package 2 width
80 cm
Package 2 Length
60 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free
Yes
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 350 A - without coil

# of Pole 4
