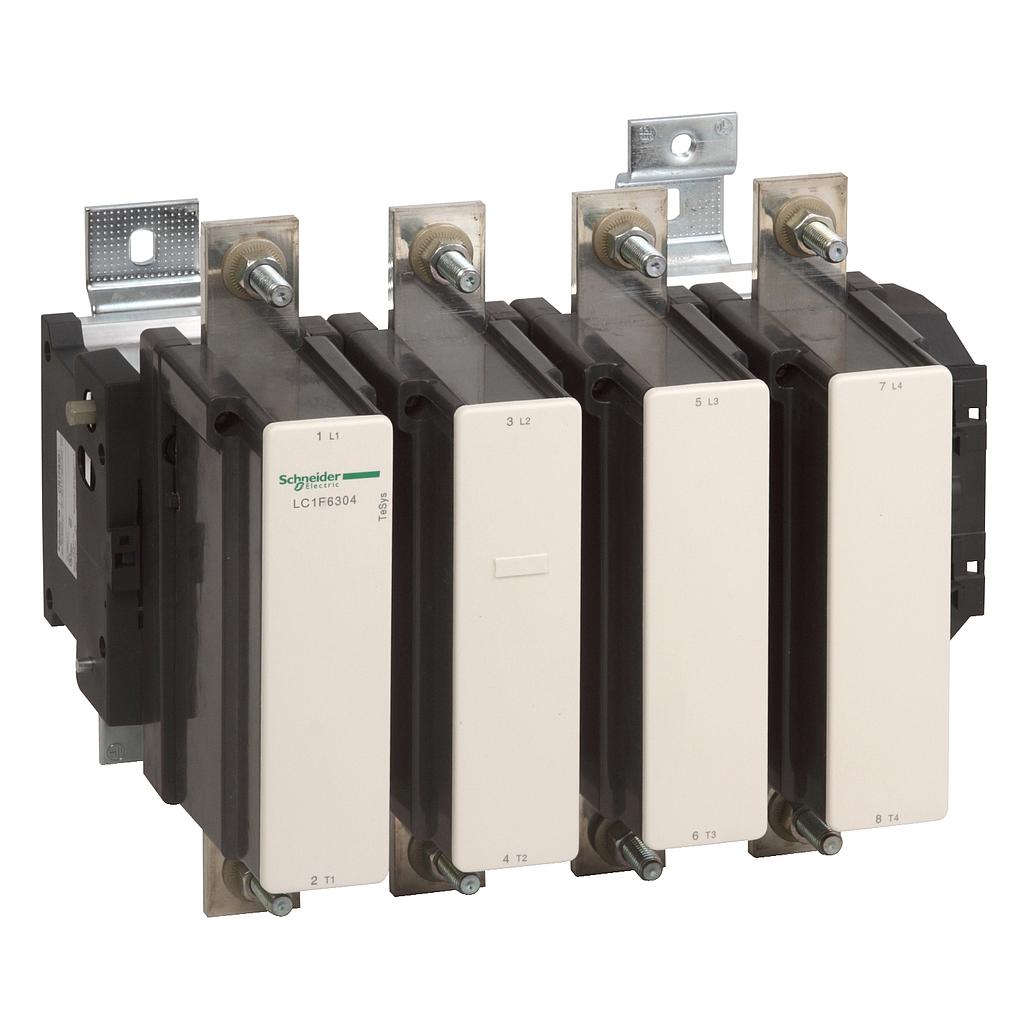

Schneider TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 1000 A - without coil
# of Pole : 4
Rp 34.245.631,00
56.00 %
Rp 77.830.980,00
Rp 77.830.980,00
Option not available
[Deskripsi] 1. product name : TeSys F 2. product or component type : Contactor 3. device short name : LC1F 4. contactor application : Resistive load 5. utilisation category : AC-1 6. poles description : 4P 7. power pole contact composition : 4 NO 8. [Ue] rated operational voltage : -<= 1000 V AC 50/60 Hz -<= 460 V DC 9. [Ie] rated operational current : 1000 A (at <40 °C) at <= 440 V AC-1 10. [Uimp] rated impulse withstand voltage : 8 kV 11. overvoltage category : III 12. [Ith] conventional free air thermal current : -1000 A (at 40 °C) -1250 A 13. Irms rated making capacity : 6300 A conforming to IEC 60947-4-1 14. rated breaking capacity : 5040 A conforming to IEC 60947-4-1 15. [Icw] rated short-time withstand current : -5050 A 40 °C - 10 s -4400 A 40 °C - 30 s -3400 A 40 °C - 1 min -2200 A 40 °C - 3 min -1600 A 40 °C - 10 min 16. associated fuse rating : -630 A aM at <= 440 V -1000 A gG at <= 440 V 17. average impedance : 0.12 mOhm - Ith 1000 A 50 Hz 18. [Ui] rated insulation voltage : -1000 V conforming to IEC 60947-4-1 -1500 V conforming to VDE 0110 group C 19. power dissipation per pole : 44 W AC-1 20. mounting support : Plate 21. standards : -EN 60947-1 -JIS C8201-4-1 -IEC 60947-4-1 -EN 60947-4-1 -IEC 60947-1 22. product certifications : -RINA -ABS -CSA -DNV -RMRoS -BV -LROS (Lloyds register of shipping) -UL -CB 23. connections - terminals : -Power circuit: lugs-ring terminals 1 cable(s) 95 mm² -Power circuit: connector 1 cable(s) 95 mm² -Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm -Power circuit: bolted connection 24. tightening torque : Power circuit: 10 N.m 25. IP degree of protection : -IP2x front face with shrouds conforming to IEC 60529 -IP2x front face with shrouds conforming to VDE 0106 26. protective treatment : TH 27. ambient air temperature for operation : -5…55 °C 28. ambient air temperature for storage : -60…80 °C 29. permissible ambient air temperature around the device : -40…70 °C 30. operating altitude : 3000 m without 31. mechanical robustness : -Vibrations contactor open: 2 Gn, 5...300 Hz -Vibrations contactor closed: 6 Gn, 5...300 Hz -Shocks contactor open: 9 Gn for 1/2 sine wave (11 ms) -Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) 32. height : 304 mm 33. width : 389 mm 34. depth : 255 mm 35. net weight : 21.5 kg
Specifications for Schneider TeSys F contactor - 4P(4 NO) - AC-1 - <= 440 V 1000 A - without coil
| # of Pole | 4 |
HOT PROMO
[Deskripsi] 1. product name : TeSys F 2. product or component type : Contactor 3. device short name : LC1F 4. contactor application : Resistive load 5. utilisation category : AC-1 6. poles description : 4P 7. power pole contact composition : 4 NO 8. [Ue] rated operational voltage : -<= 1000 V AC 50/60 Hz -<= 460 V DC 9. [Ie] rated operational current : 1000 A (at <40 °C) at <= 440 V AC-1 10. [Uimp] rated impulse withstand voltage : 8 kV 11. overvoltage category : III 12. [Ith] conventional free air thermal current : -1000 A (at 40 °C) -1250 A 13. Irms rated making capacity : 6300 A conforming to IEC 60947-4-1 14. rated breaking capacity : 5040 A conforming to IEC 60947-4-1 15. [Icw] rated short-time withstand current : -5050 A 40 °C - 10 s -4400 A 40 °C - 30 s -3400 A 40 °C - 1 min -2200 A 40 °C - 3 min -1600 A 40 °C - 10 min 16. associated fuse rating : -630 A aM at <= 440 V -1000 A gG at <= 440 V 17. average impedance : 0.12 mOhm - Ith 1000 A 50 Hz 18. [Ui] rated insulation voltage : -1000 V conforming to IEC 60947-4-1 -1500 V conforming to VDE 0110 group C 19. power dissipation per pole : 44 W AC-1 20. mounting support : Plate 21. standards : -EN 60947-1 -JIS C8201-4-1 -IEC 60947-4-1 -EN 60947-4-1 -IEC 60947-1 22. product certifications : -RINA -ABS -CSA -DNV -RMRoS -BV -LROS (Lloyds register of shipping) -UL -CB 23. connections - terminals : -Power circuit: lugs-ring terminals 1 cable(s) 95 mm² -Power circuit: connector 1 cable(s) 95 mm² -Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm -Power circuit: bolted connection 24. tightening torque : Power circuit: 10 N.m 25. IP degree of protection : -IP2x front face with shrouds conforming to IEC 60529 -IP2x front face with shrouds conforming to VDE 0106 26. protective treatment : TH 27. ambient air temperature for operation : -5…55 °C 28. ambient air temperature for storage : -60…80 °C 29. permissible ambient air temperature around the device : -40…70 °C 30. operating altitude : 3000 m without 31. mechanical robustness : -Vibrations contactor open: 2 Gn, 5...300 Hz -Vibrations contactor closed: 6 Gn, 5...300 Hz -Shocks contactor open: 9 Gn for 1/2 sine wave (11 ms) -Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) 32. height : 304 mm 33. width : 389 mm 34. depth : 255 mm 35. net weight : 21.5 kg
