  5. Schneider TeSys LRD thermal overload relays - 80...104 A - class 10A

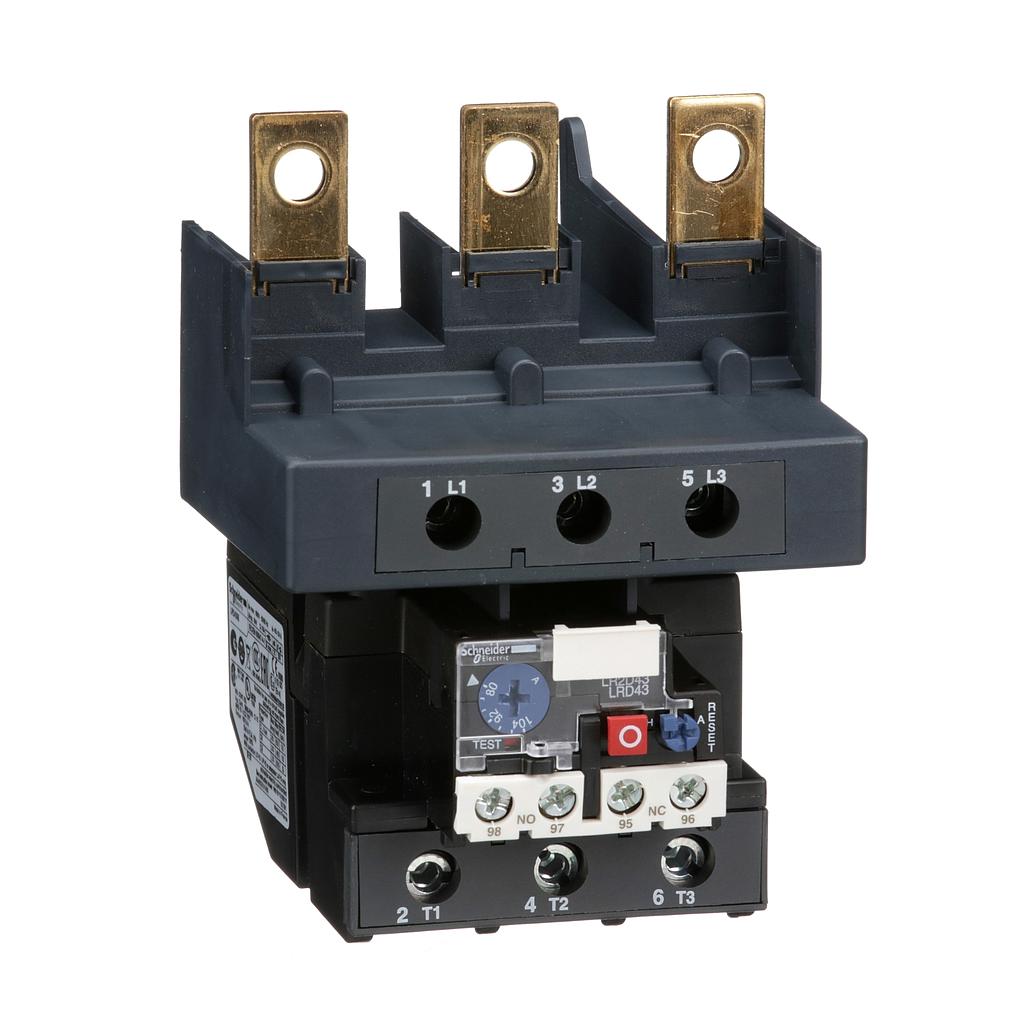

Schneider TeSys LRD thermal overload relays - 80...104 A - class 10A

Setting Arus : 80...104 (LC1 D115&D150)

Rp 4,532,041.00 Rp 2,537,942.00 2537942 IDR

Rp 4,532,041.00

Option not available

  • Setting Arus

This combination does not exist.

Add to Cart

Schneider TeSys LRD thermal overload relays - 80...104 A - class 10A
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 2,537,942.00
44.00 % Rp 4,532,041.00 2537942 IDR

Rp 4,532,041.00

Option not available

Atur Jumlah & Catatan
Stock Total: 12

Setting Arus : 80...104 (LC1 D115&D150)

Keranjang Beli Sekarang
Spesifikasi

[Deskripsi] 1. product name : TeSys LRD 2. product or component type : Differential thermal overload relay 3. device short name : LRD 4. relay application : Motor protection 5. product compatibility : -LC1D115 -LC1D150 6. network type : -AC -DC 7. thermal protection adjustment range : 80…104 A 8. [Ui] rated insulation voltage : -Power circuit: 1000 V conforming to IEC 60947-4-1 -Power circuit: 600 V conforming to CSA -Power circuit: 600 V conforming to UL 9. network frequency : 0...400 Hz 10. mounting support : -Plate, with specific accessories -Rail, with specific accessories -Under contactor 11. tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 12. [Ith] conventional free air thermal current : 5 A for signalling circuit 13. permissible current : -0.06 A at 440 V DC-13 for signalling circuit -0.12 A at 600 V AC-15 for signalling circuit 14. [Ue] rated operational voltage : 690 V AC 0...400 Hz 15. [Uimp] rated impulse withstand voltage : 6 kV 16. phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 17. control type : -Red push-button: stop -Blue push-button: reset 18. temperature compensation : -20…60 °C 19. connections - terminals : -Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end -Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end -Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² flexible without cable end -Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² solid without cable end 20. tightening torque : -Control circuit: 1.7 N.m - on screw clamp terminals -Power circuit: 9 N.m - on screw clamp terminals 21. depth : 132 mm 22. net weight : 0.9 kg


Main (see above)
range
TeSys
product name
TeSys LRD
product or component type
Differential thermal overload relay
device short name
LRD
relay application
Motor protection
product compatibility
LC1D115
LC1D150
network type
AC
DC
thermal overload class
Class 10A conforming to IEC 60947-4-1
thermal protection adjustment range
80…104 A
[Ui] rated insulation voltage
Power circuit: 1000 V conforming to IEC 60947-4-1
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Complementary (see above)
network frequency
0...400 Hz
mounting support
Plate, with specific accessories
Rail, with specific accessories
Under contactor
tripping threshold
1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
auxiliary contact composition
1 NO + 1 NC
[Ith] conventional free air thermal current
5 A for signalling circuit
permissible current
0.06 A at 440 V DC-13 for signalling circuit
0.12 A at 600 V AC-15 for signalling circuit
[Ue] rated operational voltage
1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
associated fuse rating
4 A gG for signalling circuit
4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
phase failure sensitivity
Tripping current 130 % of Ir on two phase, the last one at 0
control type
Red push-button: stop
Blue push-button: reset
temperature compensation
-20…60 °C
connections - terminals
Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 4…50 mm² solid without cable end
tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 9 N.m - on screw clamp terminals
depth
132 mm
net weight
0.9 kg
Environment (see above)
protective treatment
TH conforming to IEC 60068
IP degree of protection
IP20 conforming to IEC 60529
ambient air temperature for operation
-20…60 °C without derating conforming to IEC 60947-4-1
ambient air temperature for storage
-60…70 °C
flame retardance
V1 conforming to UL 94
mechanical robustness
Vibrations: 6 Gn conforming to IEC 60068-2-6
Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
dielectric strength
2.2 kV at 50 Hz conforming to IEC 60947-1
standards
EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
EN 50495
product certifications
IEC
UL
CSA
CCC
EAC
ATEX INERIS
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
836 g
Package 1 Height
11 cm
Package 1 width
13.5 cm
Package 1 Length
15.5 cm
Unit Type of Package 2
S03
Number of Units in Package 2
10
Package 2 Weight
8.85 kg
Package 2 Height
30 cm
Package 2 width
30 cm
Package 2 Length
40 cm
Unit Type of Package 3
P06
Number of Units in Package 3
80
Package 3 Weight
81.084 kg
Package 3 Height
80 cm
Package 3 width
80 cm
Package 3 Length
60 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
Circularity Profile
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider TeSys LRD thermal overload relays - 80...104 A - class 10A
