  2. Contactor
  3. Contactor
  4. Schneider TeSys K - Auxiliary contact block - 1 NO + 1 NC - screw-clamps terminals

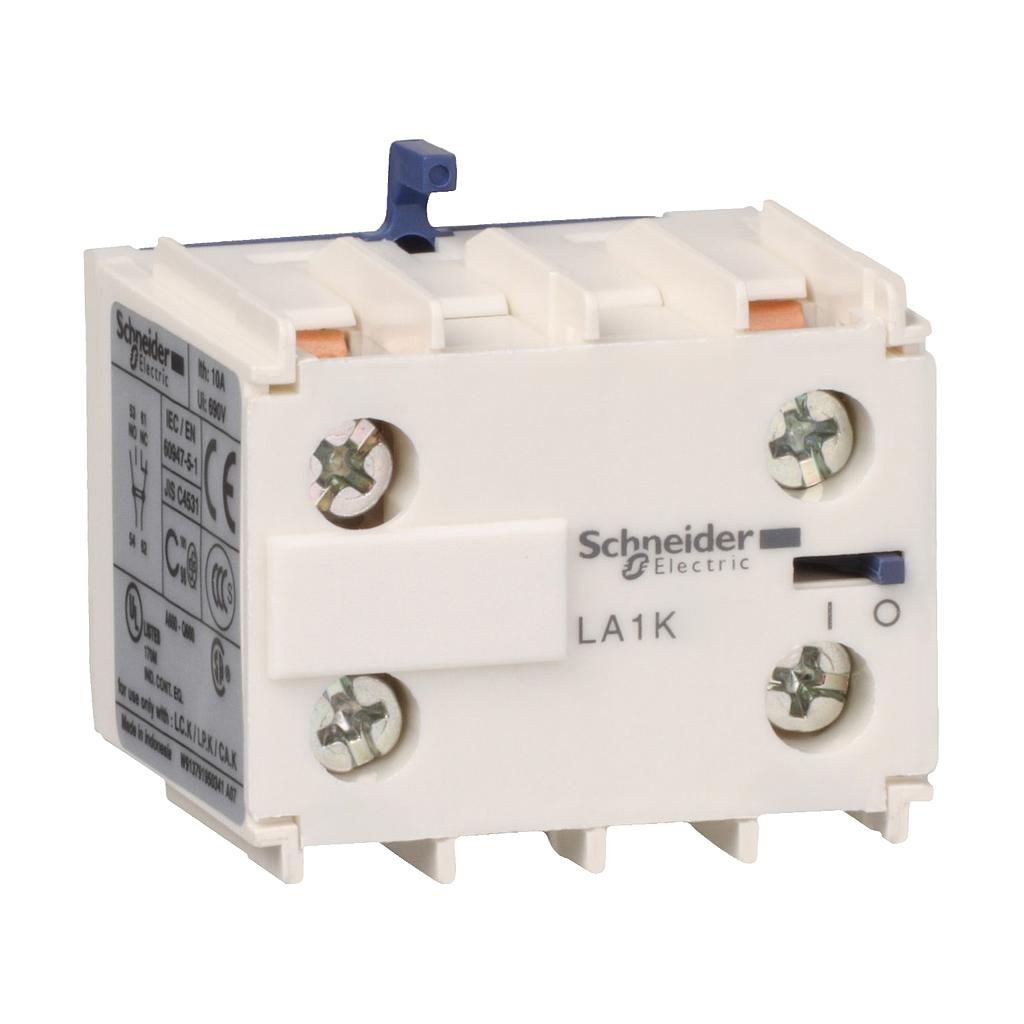

Schneider TeSys K - Auxiliary contact block - 1 NO + 1 NC - screw-clamps terminals

Rp 140,625.00 Rp 78,750.00 78750 IDR

Rp 140,625.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider TeSys K - Auxiliary contact block - 1 NO + 1 NC - screw-clamps terminals
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 78,750.00
    44.00 % Rp 140,625.00 78750 IDR

    Rp 140,625.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 6
    Keranjang Beli Sekarang
    Spesifikasi

    [Deskripsi] TeSys K Relai Kontrol adalah rentang yang mencakup relai, relai kontrol mini, blok kontak bantu, modul penekan koil, dan aksesori. [Spesifikasi] 1. pole contact composition : 1 NO + 1 NC 2. mounting location : Front 3. [Ui] rated insulation voltage : -690 V - for control circuit conforming to BS 5424 -690 V - for control circuit conforming to IEC 60947 -750 V - for control circuit conforming to VDE 0010 group C -600 V - for control circuit conforming to CSA C22.2 4. [Ue] rated operational voltage : <= 690 V AC <= 400 Hz 5. [Ith] conventional free air thermal current : 10 A (at 50 °C) 6. Irms rated making capacity : 110 A at <= 690 V AC conforming to IEC 60947 7. permissible short-time rating : -80 A 1 s -60 A 500 ms -110 A 100 ms 8. associated fuse rating : -10 A gG at <= 690 V conforming to IEC 60947 -10 A gG at <= 690 V conforming to VDE 0660 9. minimum switching current : 5 mA 10. minimum switching voltage : 17 V 11. non overlap distance : 0.5 mm 12. insulation resistance : > 10 MOhm for control circuit 13. tightening torque : 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2 14. depth : 35 mm 15. net weight : 0.045 kg


    Main (see above)
    range
    TeSys
    product name
    TeSys K
    product or component type
    Auxiliary contact block
    device short name
    LA1
    range compatibility
    TeSys K LC1K
    TeSys K CA2K
    TeSys K CA3K
    TeSys K CA4K
    mounting location
    Front
    pole contact composition
    1 NO + 1 NC
    Contacts operation
    Instantaneous
    [Ue] rated operational voltage
    690 V AC 25...400 Hz
    [Ie] rated operational current
    6 A at 120 V AC-15
    1.04 A at 690 V AC-15
    0.55 A at 125 V DC-13
    0.1 A at 600 V DC-13
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-5-1
    600 V conforming to UL 60947-5-1
    600 V conforming to CSA C22.2 No 60947-5-1
    [Ith] conventional free air thermal current
    10 A (at 50 °C)
    standards
    EN/IEC 60947-5-1
    UL 60947-5-1
    CSA C22.2 No 60947-5-1
    GB/T 14048.5
    product certifications
    IECEE CB Scheme
    UL
    CSA
    CCC
    Complementary (see above)
    Irms rated making capacity
    110 A at <= 690 V AC conforming to IEC 60947
    permissible short-time rating
    80 A 1 s
    60 A 500 ms
    110 A 100 ms
    associated fuse rating
    10 A gG at <= 690 V conforming to IEC 60947
    minimum switching current
    5 mA
    minimum switching voltage
    17 V
    non overlap distance
    0.5 mm
    insulation resistance
    > 10 MOhm
    connections - terminals
    Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end
    Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end
    Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid
    Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
    Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end
    Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid
    tightening torque
    1.3 N.m - with screwdriver Philips No 2
    height
    30 mm
    width
    38 mm
    depth
    35 mm
    net weight
    0.045 kg
    Environment (see above)
    environmental characteristic
    Normal environment
    IP degree of protection
    IP20 conforming to IEC 60529
    protective treatment
    TC conforming to IEC 60068
    ambient air temperature for storage
    -50…80 °C
    ambient air temperature for operation
    -25…50 °C
    operating altitude
    2000 m
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    31.48 g
    Package 1 Height
    2.972 cm
    Package 1 width
    3.403 cm
    Package 1 Length
    3.895 cm
    Offer Sustainability (see above)
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
     Pro-active China RoHS declaration (out of China RoHS legal scope)
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
