[Deskripsi] 1. product name : EasyPact TVS 2. product or component type : Differential thermal overload relay 3. device short name : LRE 4. relay application : Motor protection 5. phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 6. colour : Grey (RAL 7011) 7. product compatibility : LC1E06...38 8. network type : AC 9. network frequency : 50...60 Hz 10. mounting support : -Under contactor -Plate, with specific accessories -Rail, with specific accessories 11. thermal overload class : Class 10A conforming to IEC 60947-4-1 12. signalling function : Relay trip indicator 13. thermal protection adjustment range : 23...32 A 14. tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 15. mechanical robustness : -Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 -Vibrations: 3 Gn conforming to IEC 60068-2-6 16. auxiliary contact composition : 1 NO + 1 NC 17. [Ith] conventional free air thermal current : 5 A for signalling circuit 18. [Ue] rated operational voltage : <= 690 V AC 19. associated fuse rating : -4 A gG for power circuit -2 A aM for power circuit -5 A gG for signalling circuit 20. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 21. [Uimp] rated impulse withstand voltage : 6 kV 22. local signalling : Trip indicator 23. control type : -Stop: red push-button -Reset: green push-button 24. temperature compensation : -20…60 °C 25. connections - terminals : -Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end -Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end -Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: solid without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end 26. tightening torque : -Power circuit: 1.7 N.m - on screw clamp terminals -Signalling circuit: 1.7 N.m - on screw clamp terminals 27. height : 44.5 mm 28. width : 45 mm 29. depth : 70 mm 30. net weight : 0.13 kg

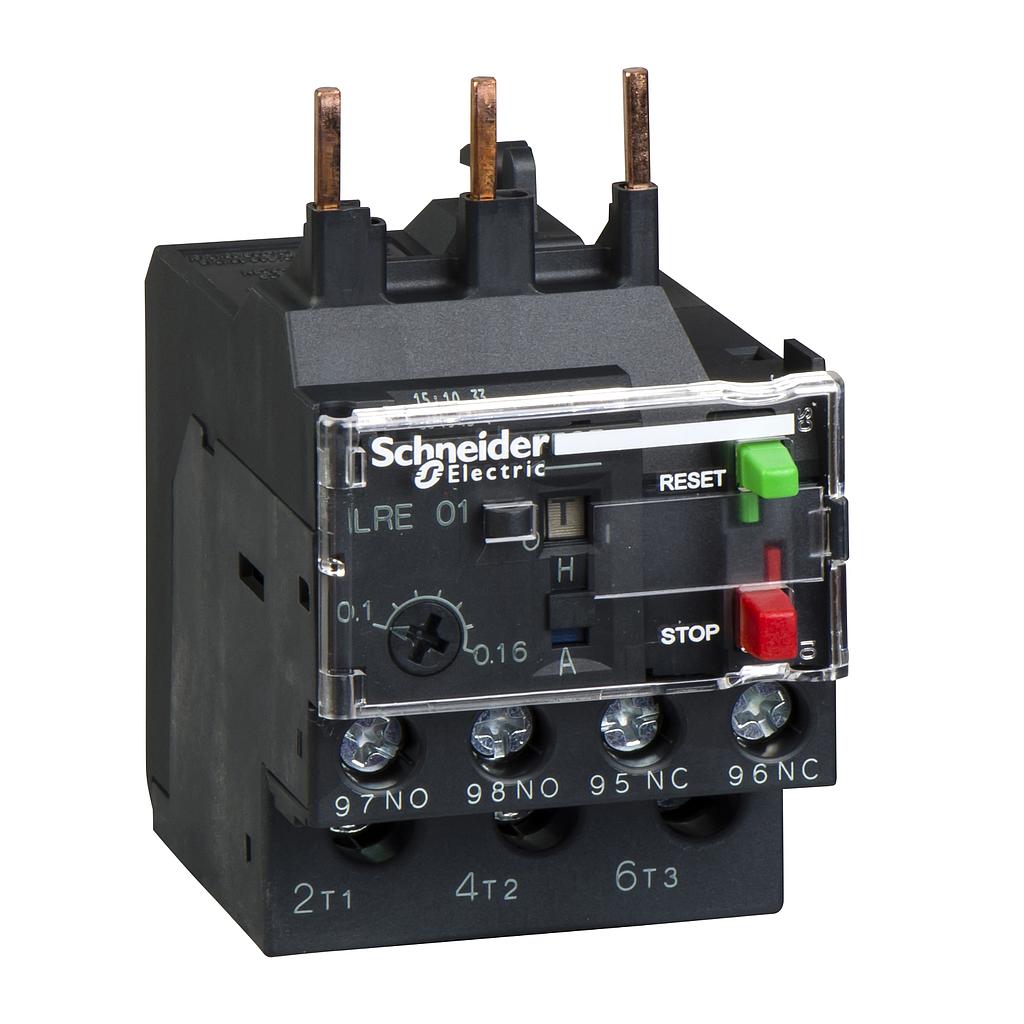

range | EasyPact | |
---|---|---|
product name | EasyPact TVS | |
product or component type | Differential thermal overload relay | |
device short name | LRE | |
relay application | Motor protection | |
phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 | |
colour | Grey (RAL 7011) |
product compatibility | LC1E25...38 | |
---|---|---|
network type | AC | |
network frequency | 50...60 Hz | |
mounting support | Under contactor Plate, with specific accessories Rail, with specific accessories | |
thermal overload class | Class 10A conforming to IEC 60947-4-1 | |
signalling function | Relay trip indicator | |
thermal protection adjustment range | 23…32 A | |
tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | |
mechanical robustness | Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 3 Gn conforming to IEC 60068-2-6 | |
auxiliary contact composition | 1 NO + 1 NC | |
[Ith] conventional free air thermal current | 5 A for signalling circuit | |
[Ue] rated operational voltage | <= 690 V AC | |
associated fuse rating | 63 A gG for power circuit 40 A aM for power circuit 5 A gG for signalling circuit | |
[Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 | |
[Uimp] rated impulse withstand voltage | 6 kV | |
local signalling | Trip indicator | |
control type | Push-button red stop: Push-button green reset: | |
temperature compensation | -20…60 °C | |
connections - terminals | Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: solid without cable end | |
Recommended tightening torque | Power circuit: 2.5 N.m - on screw clamp terminals Signalling circuit: 1.7 N.m - on screw clamp terminals | |
height | 44.5 mm | |
width | 45 mm | |
depth | 70 mm | |
net weight | 0.13 kg |
standards | IEC 60947-5-1 IEC 60947-4-1 | |
---|---|---|
product certifications | EAC | |
protective treatment | TH conforming to IEC 60068 | |
IP degree of protection | IP20 conforming to IEC 60529 | |
ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 -20…70 °C with derating | |
ambient air temperature for storage | -60…80 °C | |
fire resistance | 850 °C conforming to IEC 60068-2-1 | |
dielectric strength | 6 kV at 50 Hz conforming to IEC 60255-5 | |
electromagnetic compatibility | Surge withstand: 6 kV conforming to IEC 60801-5 |
Unit Type of Package 1 | PCE | |
---|---|---|
Number of Units in Package 1 | 1 | |
Package 1 Weight | 150 g | |
Package 1 Height | 5.5 cm | |
Package 1 width | 8.2 cm | |
Package 1 Length | 8.5 cm | |
Unit Type of Package 2 | S02 | |
Number of Units in Package 2 | 33 | |
Package 2 Weight | 5.287 kg | |
Package 2 Height | 15 cm | |
Package 2 width | 30 cm | |
Package 2 Length | 40 cm |
REACh Regulation | ||
---|---|---|
REACh free of SVHC | Yes | |
EU RoHS Directive | Compliant EU RoHS Declaration | |
Mercury free | Yes | |
RoHS exemption information | ||
China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
Warranty | 12 months |
---|
[Deskripsi] 1. product name : EasyPact TVS 2. product or component type : Differential thermal overload relay 3. device short name : LRE 4. relay application : Motor protection 5. phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 6. colour : Grey (RAL 7011) 7. product compatibility : LC1E06...38 8. network type : AC 9. network frequency : 50...60 Hz 10. mounting support : -Under contactor -Plate, with specific accessories -Rail, with specific accessories 11. thermal overload class : Class 10A conforming to IEC 60947-4-1 12. signalling function : Relay trip indicator 13. thermal protection adjustment range : 23...32 A 14. tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 15. mechanical robustness : -Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 -Vibrations: 3 Gn conforming to IEC 60068-2-6 16. auxiliary contact composition : 1 NO + 1 NC 17. [Ith] conventional free air thermal current : 5 A for signalling circuit 18. [Ue] rated operational voltage : <= 690 V AC 19. associated fuse rating : -4 A gG for power circuit -2 A aM for power circuit -5 A gG for signalling circuit 20. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 21. [Uimp] rated impulse withstand voltage : 6 kV 22. local signalling : Trip indicator 23. control type : -Stop: red push-button -Reset: green push-button 24. temperature compensation : -20…60 °C 25. connections - terminals : -Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end -Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end -Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: solid without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end 26. tightening torque : -Power circuit: 1.7 N.m - on screw clamp terminals -Signalling circuit: 1.7 N.m - on screw clamp terminals 27. height : 44.5 mm 28. width : 45 mm 29. depth : 70 mm 30. net weight : 0.13 kg
range | EasyPact | |
---|---|---|
product name | EasyPact TVS | |
product or component type | Differential thermal overload relay | |
device short name | LRE | |
relay application | Motor protection | |
phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 | |
colour | Grey (RAL 7011) |
product compatibility | LC1E25...38 | |
---|---|---|
network type | AC | |
network frequency | 50...60 Hz | |
mounting support | Under contactor Plate, with specific accessories Rail, with specific accessories | |
thermal overload class | Class 10A conforming to IEC 60947-4-1 | |
signalling function | Relay trip indicator | |
thermal protection adjustment range | 23…32 A | |
tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | |
mechanical robustness | Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 3 Gn conforming to IEC 60068-2-6 | |
auxiliary contact composition | 1 NO + 1 NC | |
[Ith] conventional free air thermal current | 5 A for signalling circuit | |
[Ue] rated operational voltage | <= 690 V AC | |
associated fuse rating | 63 A gG for power circuit 40 A aM for power circuit 5 A gG for signalling circuit | |
[Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 | |
[Uimp] rated impulse withstand voltage | 6 kV | |
local signalling | Trip indicator | |
control type | Push-button red stop: Push-button green reset: | |
temperature compensation | -20…60 °C | |
connections - terminals | Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: solid without cable end | |
Recommended tightening torque | Power circuit: 2.5 N.m - on screw clamp terminals Signalling circuit: 1.7 N.m - on screw clamp terminals | |
height | 44.5 mm | |
width | 45 mm | |
depth | 70 mm | |
net weight | 0.13 kg |
standards | IEC 60947-5-1 IEC 60947-4-1 | |
---|---|---|
product certifications | EAC | |
protective treatment | TH conforming to IEC 60068 | |
IP degree of protection | IP20 conforming to IEC 60529 | |
ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 -20…70 °C with derating | |
ambient air temperature for storage | -60…80 °C | |
fire resistance | 850 °C conforming to IEC 60068-2-1 | |
dielectric strength | 6 kV at 50 Hz conforming to IEC 60255-5 | |
electromagnetic compatibility | Surge withstand: 6 kV conforming to IEC 60801-5 |
Unit Type of Package 1 | PCE | |
---|---|---|
Number of Units in Package 1 | 1 | |
Package 1 Weight | 150 g | |
Package 1 Height | 5.5 cm | |
Package 1 width | 8.2 cm | |
Package 1 Length | 8.5 cm | |
Unit Type of Package 2 | S02 | |
Number of Units in Package 2 | 33 | |
Package 2 Weight | 5.287 kg | |
Package 2 Height | 15 cm | |
Package 2 width | 30 cm | |
Package 2 Length | 40 cm |
REACh Regulation | ||
---|---|---|
REACh free of SVHC | Yes | |
EU RoHS Directive | Compliant EU RoHS Declaration | |
Mercury free | Yes | |
RoHS exemption information | ||
China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
Warranty | 12 months |
---|
