  2. MCCB
  3. NSXM
  4. Schneider NSXM 3P 80A 36KA F TMD

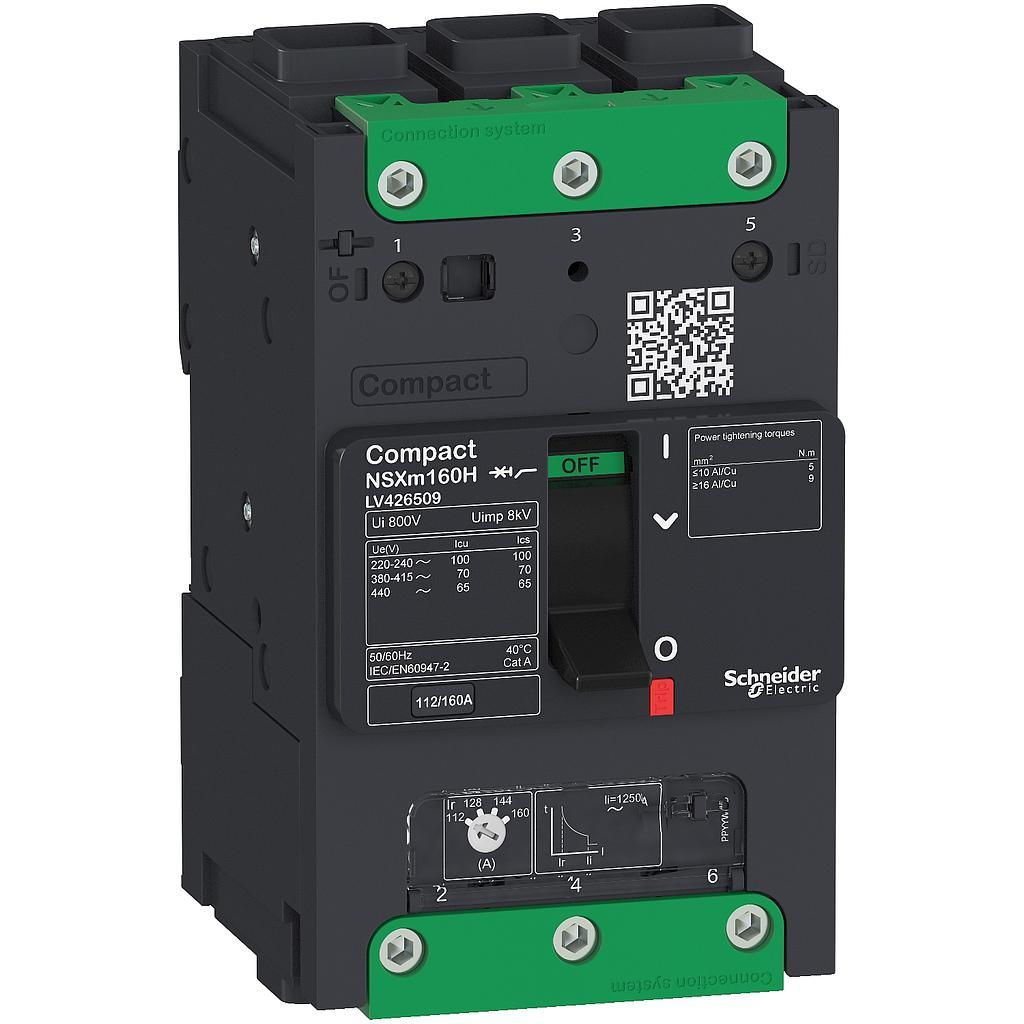

Schneider NSXM 3P 80A 36KA F TMD

# of Pole : 3

Arus Nominal (In) : 80A

Icu (kA) : 36

Rp 2,347,194.00 Rp 1,220,540.00 1220540 IDR

Rp 2,347,194.00

Option not available

  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

This combination does not exist.

Add to Cart

Schneider NSXM 3P 80A 36KA F TMD
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 1,220,540.00
48.00 % Rp 2,347,194.00 1220540 IDR

Rp 2,347,194.00

Option not available

Atur Jumlah & Catatan
Stock Total: 2

# of Pole : 3

Arus Nominal (In) : 80A

Icu (kA) : 36

Keranjang Beli Sekarang
Spesifikasi
Main (see above)
range
ComPact
product name
ComPact NSXm
range of product
ComPact NSXm
device short name
NSXm 80F
product or component type
Circuit breaker
device application
Protection
Distribution
Number of poles
3P
protected poles description
3d
[In] rated current
80 A at 40 °C
[Ue] rated operational voltage
690 V AC 50/60 Hz
network type
AC
network frequency
50/60 Hz
suitability for isolation
Yes conforming to EN/IEC 60947-2
utilisation category
Category A
[Icu] rated ultimate short-circuit breaking capacity
85 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
Performance level
F 36 kA 415 V AC
trip unit name
TM-D
trip unit technology
Thermal-magnetic
trip unit protection functions
LI
control type
Toggle
Circuit breaker mounting mode
By screws
Clip-on
Complementary (see above)
[Ui] rated insulation voltage
800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
8 kV
[Ics] rated service short-circuit breaking capacity
85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability
20000 cycles
electrical durability
10000 cycles at 440 V In
20000 cycles at 440 V In/2
5000 cycles at 690 V In
10000 cycles at 690 V In/2
mounting support
Plate
DIN rail
Connection terminals
1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper
1 Everlink lug wire size 2.5…70 mm², flexible copper
connection pitch
35 mm with spreaders
27 mm without spreaders
9 mm pitches
9 module
protection type
L : for overload protection (thermal)
I : for short-circuit protection (magnetic)
trip unit rating
80 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection)
Adjustable
[Ir] long-time protection pick-up adjustment range
0.7...1 x In
Long-time protection delay adjustment type tr
Fixed
[Im] magnetic protection pick-up range
1000 A
earth-leakage protection
Without
Number of slots for electrical auxiliaries
1 slot(s) for auxiliary switch OF
1 slot(s) for alarm switch SD
1 slot(s) for voltage release MN or MX
Width (W)
81 mm
Height (H)
137 mm
Depth (D)
80 mm
net weight
1.06 kg
colour
Grey (RAL 7016)
Environment (see above)
standards
EN/IEC 60947
product certifications
CCC
EAC
Marine
pollution degree
3 conforming to IEC 60664-1
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
relative humidity
0…95 %
operating altitude
0...2000 m without derating
2000...5000 m with derating
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
1.251 kg
Package 1 Height
9 cm
Package 1 width
12.5 cm
Package 1 Length
21.5 cm
Unit Type of Package 2
S03
Number of Units in Package 2
8
Package 2 Weight
12.29 kg
Package 2 Height
30 cm
Package 2 width
30 cm
Package 2 Length
40 cm
Unit Type of Package 3
P12
Number of Units in Package 3
216
Package 3 Weight
304.89 kg
Package 3 Height
110 cm
Package 3 width
80 cm
Package 3 Length
120 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider NSXM 3P 80A 36KA F TMD

# of Pole 3
Arus Nominal (In) 80A
Icu (kA) 36

Filter By

  • # of Pole

  • Arus Nominal (In)

  • Icu (kA)

Product Public Price Discount Guaranteed Stock QTY Action

Schneider LV426309 NSXM 3P 160A 36KA F TMD

Rp 2,175,333.00 100.00 % 1
  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

Schneider LV426308 NSXM 3P 125A 36KA F TMD

Rp 1,715,178.00 100.00 % 1
  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

Schneider LV426307 NSXM 3P 100A 36KA F TMD

Rp 1,220,540.00 100.00 % 2
  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

Schneider LV426306 NSXM 3P 80A 36KA F TMD

Rp 1,220,540.00 100.00 %
  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

Schneider LV426305 NSXM 3P 63A 36KA F TMD

Rp 1,220,540.00 100.00 % Out of Stock
  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

Schneider LV426304 NSXM 3P 50A 36KA F TMD

Rp 1,129,580.00 100.00 % 2
  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)
