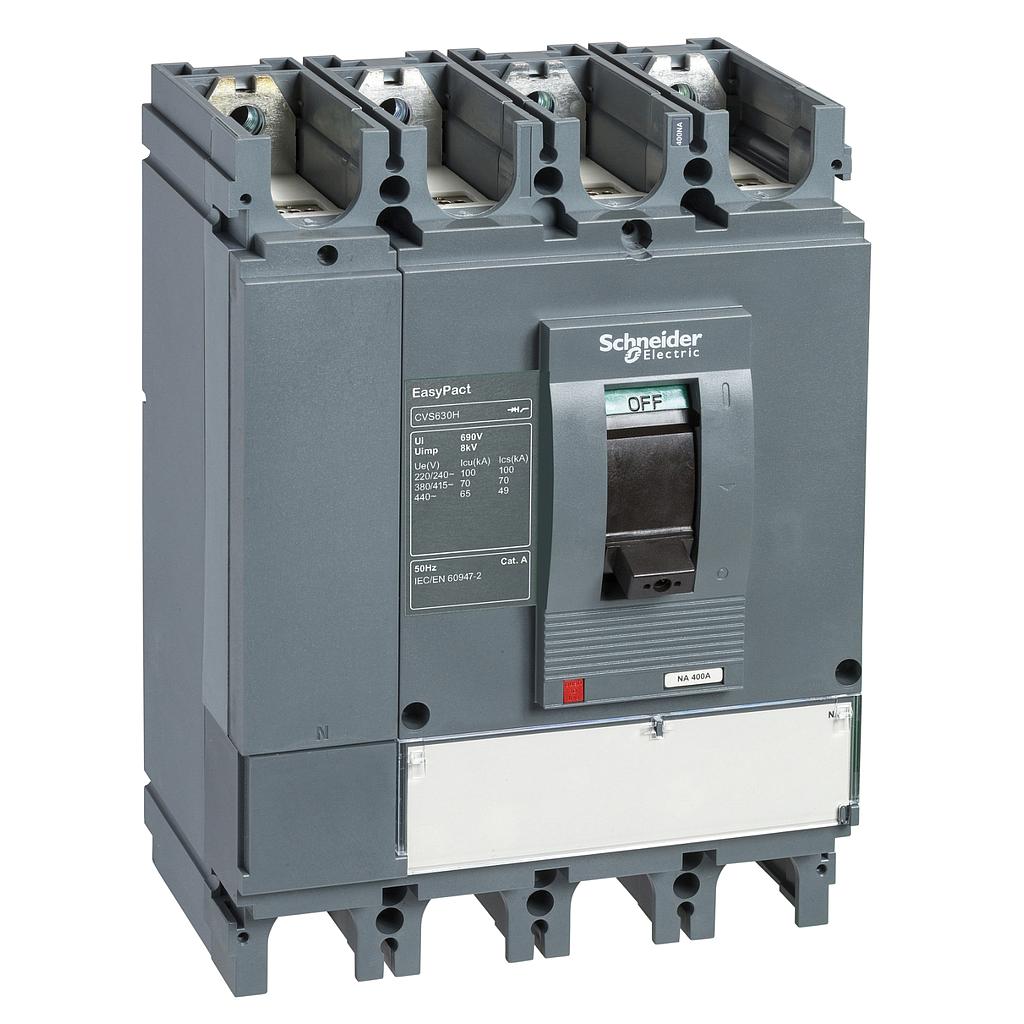

  4. Schneider CVS400F 4P 320A 36KA TMD

Schneider CVS400F 4P 320A 36KA TMD

# of Pole : 4

Arus Nominal (In) : 320A

Icu (kA) : 36

Rp 8,750,907.00 Rp 4,112,926.00 4112926 IDR

Rp 8,750,907.00

Option not available

  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

This combination does not exist.

Add to Cart

Schneider CVS400F 4P 320A 36KA TMD
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 4,112,926.00
53.00 % Rp 8,750,907.00 4112926 IDR

Rp 8,750,907.00

Option not available

Atur Jumlah & Catatan
Stock Total: 15

# of Pole : 4

Arus Nominal (In) : 320A

Icu (kA) : 36

Keranjang Beli Sekarang
Spesifikasi
Main (see above)
range of product
Easypact CVS400...630
product or component type
Circuit breaker
device short name
CVS400F
device application
Distribution
poles description
4P
protected poles description
3d
neutral position
Left
Earth leakage protection (Vigi add on)
Without
[In] rated current
400 A at 40 °C
breaking capacity code
F
network type
AC
[Icu] Breaking capacity
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category
Category A
trip unit name
TM-D
trip unit technology
Thermal-magnetic
trip unit rating
320 A at 40 °C
protection type
Short-circuit protection (magnetic)
Overload protection (thermal)
Complementary (see above)
network frequency
50/60 Hz
control type
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
connections - terminals
Screw connection
[Uimp] rated impulse withstand voltage
8 kV conforming to EN/IEC 60947-2
thermal protection adjustment range
224…320 A
[Ics] rated service breaking capacity
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
23 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability
15000 cycles
electrical durability
6000 cycles 415 V In conforming to IEC 60947-2
connection pitch
45 mm
contact position indicator
Yes
neutral protection setting
No protection (3d)
long time pick-up adjustment type Ir
Adjustable
long time pick-up adjustment range
0.7...1 x In
long time delay adjustment type
Fixed
instantaneous pick-up adjustment type Ii
Adjustable
instantaneous pick-up adjustment range
5...10 x In
height
255 mm
width
185 mm
depth
110 mm
net weight
6.3 kg
Environment (see above)
electrical shock protection class
Class II
standards
IEC 60947-2
EN 60947-2
product certifications
GOST
IEC
IP degree of protection
IP40
pollution degree
3 conforming to IEC 60664-1
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
8.039 kg
Package 1 Height
21 cm
Package 1 width
24.4 cm
Package 1 Length
30 cm
Unit Type of Package 2
S04
Number of Units in Package 2
3
Package 2 Weight
25.369 kg
Package 2 Height
30 cm
Package 2 width
40 cm
Package 2 Length
60 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free
Yes
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider CVS400F 4P 320A 36KA TMD

# of Pole 4
Arus Nominal (In) 320A
Icu (kA) 36
